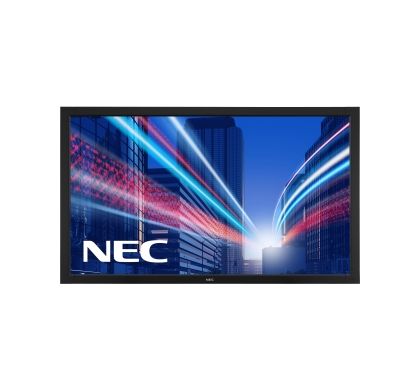

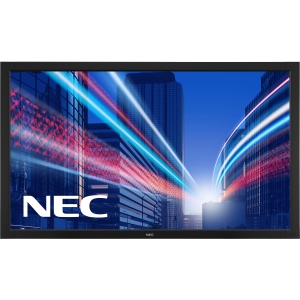

NEC Display MultiSync V652-TM 165.1 cm (65")LCD Digital Signage Display

NEC Display MultiSync V652-TM 165.1 cm (65")LCD Digital Signage Display
V652-TM

This product has been discontinued by the manufacturer

Please visit

NEC Digital Signage Systems

for alternative options.

Description

NEC MultiSync® V652-TM is the new multi-touch product of NEC's V Series boasting 65" in size and delivering true multi-touch support with up to 5 simultaneous touch points. Thanks to a unique anti reflective coating, reflections are reduced to a minimum which significantly increases the readability of the content shown. The OPS option slot for e.g. a slot-in PC helps to save space and does away with any cables including the USB cable external PC solutions may need.

Specifications

General Information

Manufacturer:
NEC Display Solutions
Manufacturer Website Address:
http://www.necdisplay.com
Brand Name:
NEC Display
Product Family:
MultiSync
Product Model:
V652-TM
Product Name:
MultiSync V652-TM Digital Signage Display
Product Type:
Digital Signage Display

Technical Information

Features:
  • Side by Side
  • Picture on Picture
  • Safety Lock
  • Plug and Play
  • Carbon Footprint Meter
  • Landscape/Portrait Viewable
  • TileMatrix Support
  • Smart Scheduling
  • Screen Saver
  • Anti-reflective
  • Protective Glass
  • Open Pluggable Specification (OPS)

Display & Graphics

Screen Size:
165.1 cm (65")
Display Screen Type:
LCD
Touchscreen:
Yes
Touchscreen Technology:
Optical Camera
Multi-touch Screen:
Yes
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
89°
Vertical Viewing Angle:
89°
Backlight Technology:
Edge LED
HDCP Supported:
Yes

Audio

Number of Speakers:
2
Speakers:
Yes
RMS Output Power:
20 W

Video

Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Native Contrast Ratio:
4,000:1
Brightness:
  • 450 cd/m²

Network & Communication

Ethernet:
Yes
Ethernet Technology:
  • Fast Ethernet

Interfaces/Ports

USB:
Yes
DVI:
Yes
VGA:
Yes
HDMI:
Yes
Component Video:
Yes
Composite Video:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes

Power Description

Power Consumption:
  • 360 W

Physical Characteristics

Colour:
  • Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
400 x 400
Height:
909.2 mm
Width:
1540.4 mm
Depth:
102 mm
Weight (Approximate):
68.30 kg

Miscellaneous

Package Contents:
  • MultiSync V652-TM Digital Signage Display
  • USB cable
  • DVI-D cable
  • Power Cable
  • Free LAN control software (download)
  • Remote Control
  • CD-ROM (User Guides/Manuals)
Certifications & Standards:
  • C-tick
  • CE
  • FCC Class B
  • PSB
  • TÃœV GS
  • UL/C-UL or CSA
  • VCCI
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
3 Year
