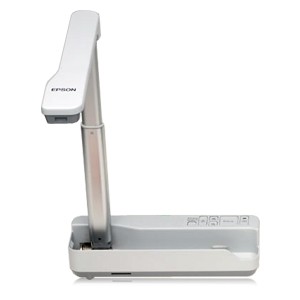

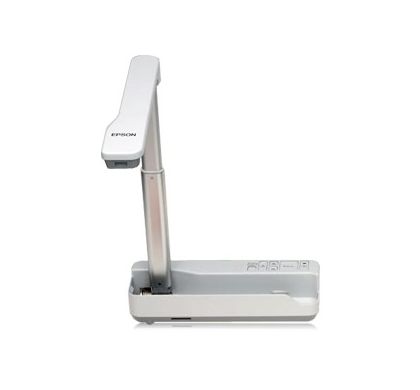

Epson ELPDC-06 Document Camera

Epson ELPDC-06 Document Camera
V12H321003

This product has been discontinued by the manufacturer

Please visit

EPSON Document Cameras

for alternative options.

Description

Incorporating our advanced technologies, the Epson ELP DC-06 is a compact and affordable desktop solution for enlarging the source materials you can display while drastically cutting preparation time.The Epson ELP DC-06 visualiser only takes seconds to set up. You can connect directly to the new Epson EB-8 projector series and future Epson projectors thanks to the direct USB connection and two-in-one cable. It also lets you work via a computer. Just plug in, unfold the arm and you're ready to focus.

Specifications

General Information

Manufacturer:
Epson Corporation
Manufacturer Website Address:
http://www.epson.com.au
Brand Name:
Epson
Product Model:
ELPDC-06
Product Name:
ELPDC-06 Document Camera
Product Type:
Document Camera

Technical Information

Image Sensor:
19.05 mm Colour CMOS
Resolution:
2 Megapixel
Aperture Range:
f/2.8
Focal Length:
104.14 mm
Digital Zoom:
4x
Platform Supported:
  • PC
  • Mac

Interfaces/Ports

Interfaces/Ports:
  • 1 x Type B USB

Power Description

Input Voltage:
  • 5 V

Physical Characteristics

Height:
388 mm
Width:
260 mm
Depth:
76 mm
Weight (Approximate):
990 g

Miscellaneous

Package Contents:
  • ELPDC-06 Document Camera
  • 3 meter USB A / USB B cable
  • Soft Carry Case
  • User Manual
  • Software
Additional Information:
  • Two white LED
  • Shooting Area: 271 x 360 mm
  • Head Rotation: Horizontal ±90° / Vertical ±90°
  • Frame rate with computer: 15fps / XGA
  • Frame rate with projector: 8fps / XGA
System Requirements:
  • Pentium IV 2.4 GHz or equivalent AMD Athlon
  • 80 MB free hard drive space required for program installation
  • 512 MB DDR RAM or above
  • USB 2.0
  • Operating Systems:
  • Windows Vista
  • Windows XP SP2 or later
  • Mac X10.4.9 or later

Warranty

Standard Warranty:
3 Year
