TP-LINK TL-POE200 PoE Injector
This product has been discontinued by the manufacturer
Please visit
TP-LINK Power Injectors/Splittersfor alternative options.
Description

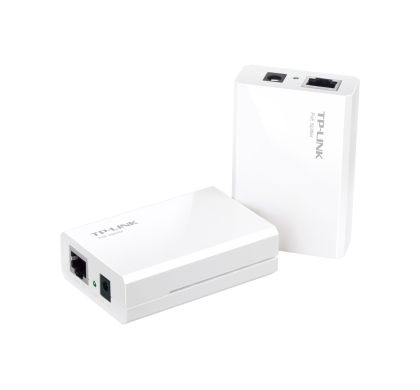

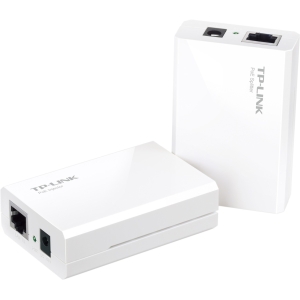

The TL-POE200 is designed to deliver power and data over a single Ethernet cable to an Ethernet enabled device up to 100m away. The PoE kit uses two devices, one, the ´injector´ injects power and data into a single Ethernet cable while the other, the ´splitter´ placed at the receiving end splits the power and data back into two cables to be used by the connected Ethernet device. This convenience allows users to place Ethernet enabled devices such as access points, IP cameras, or VoIP phones anywhere that they are best suited, regardless of whether a power socket is available, to achieve the best performance for the connected devices.
Specifications
General Information
Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com.au
Brand Name:
TP-LINK
Product Model:
TL-POE200
Product Name:
TL-POE200 Power over Ethernet Adapter Kit
Product Type:
PoE Injector
Interfaces/Ports
Input Ports:
1 10/100Base-TX
Output Ports:
1 10/100Base-TX
Miscellaneous
Package Contents:
- TL-POE200 Power over Ethernet Adapter Kit
- 1 x Power Cord
- 1 x RJ-45 Ethernet Cable
- User Guide
- Injector
- Splitter
Additional Information:
- PoE Injector:
- Power Input: 100~240VAC
- Power Output: 48VDC, 0.5A
- Power Input: 48VDC
- Power Output: 12/9/5VDC
Compatibility:
- TP-Link TL-WA500G 54Mbps eXtended Range Wireless Access Point
- TP-Link TL-WA5110G 54Mbps High Power Wireless Access Point
- IP Cameras
- VoIP Phones
- TL-SC3130 2-Way Audio Surveillance Camera
Certifications & Standards:
- CSMA/CD
- TCP/IP
- IEEE 802.3
- IEEE 802.3u
Warranty
Standard Warranty:
1 Year
