LENOVO PDU

39Y8905
Please Call
Please contact us for pricing

Description

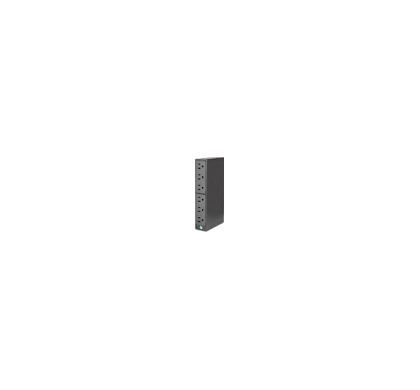

IBM DPI NEMA Power Distribution Units (PDU)

This PDU provides an economical, basic power distribution capability for rack-based systems, helping to enable you to satisfy the power requirements of your devices. It has one low-voltage power input and supports up to six devices with a combined power requirement of up to 1200W at 100v through 1524W at 127V. This 1U PDU is half-rack width, so you can mount two in a single 1U space for a total of 12 outlets. This PDU is primarily used in North America, Japan, Taiwan, the Philippines and various other nations that have power systems that work at 100V-127V.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Name:
6-Outlets PDU
Product Type:
PDU

Technical Information

Input Receptacles:
NEMA L5-15P
Output Receptacles:
6 x NEMA 5-15R

Power Description

Input Voltage:
  • 100 V AC
  • 127 V AC
Power Rating:
1.52 kVA
Circuit Breaker:
Yes

Physical Characteristics

Form Factor:
Horizontal & Vertical
Rack Height:
1U
Cord Length:
9
Height:
43.2 mm
Width:
223.5 mm
Depth:
114.3 mm
Weight (Approximate):
4.58 kg

Miscellaneous

Compatibility:
IBM Servers:
  • eServer xSeries 236 8841
  • eServer xSeries 260 8865
  • eServer xSeries 336 8837
  • eserver xSeries 343 8827
  • eserver xSeries 343 8827 DC Power
  • x3200 4362
  • x3200 4363
  • x3200 M2
  • x3250 4364
  • x3250 4365
  • x3250 M2
  • x3350
  • x3400 7973
  • x3400 7974
  • x3400 7975
  • x3400 7976
  • x3455 7984
  • x3500 7977
Certifications & Standards:
  • TUV GS
  • EN 60950
  • NOM
  • IEC 60950
  • UL 60950
  • CSA 22.2 No. 60950
  • CB

Warranty

Standard Warranty:
1 Year
