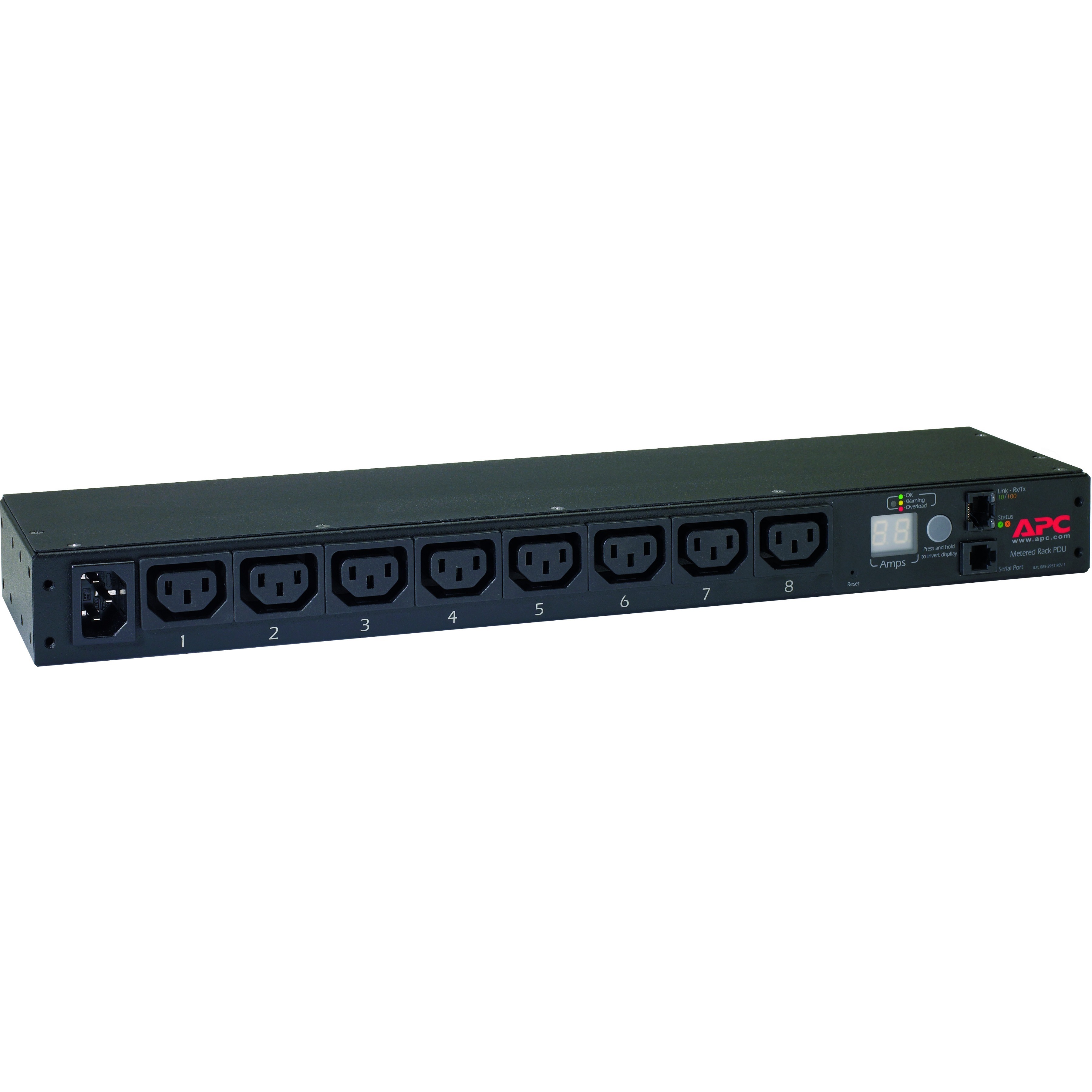

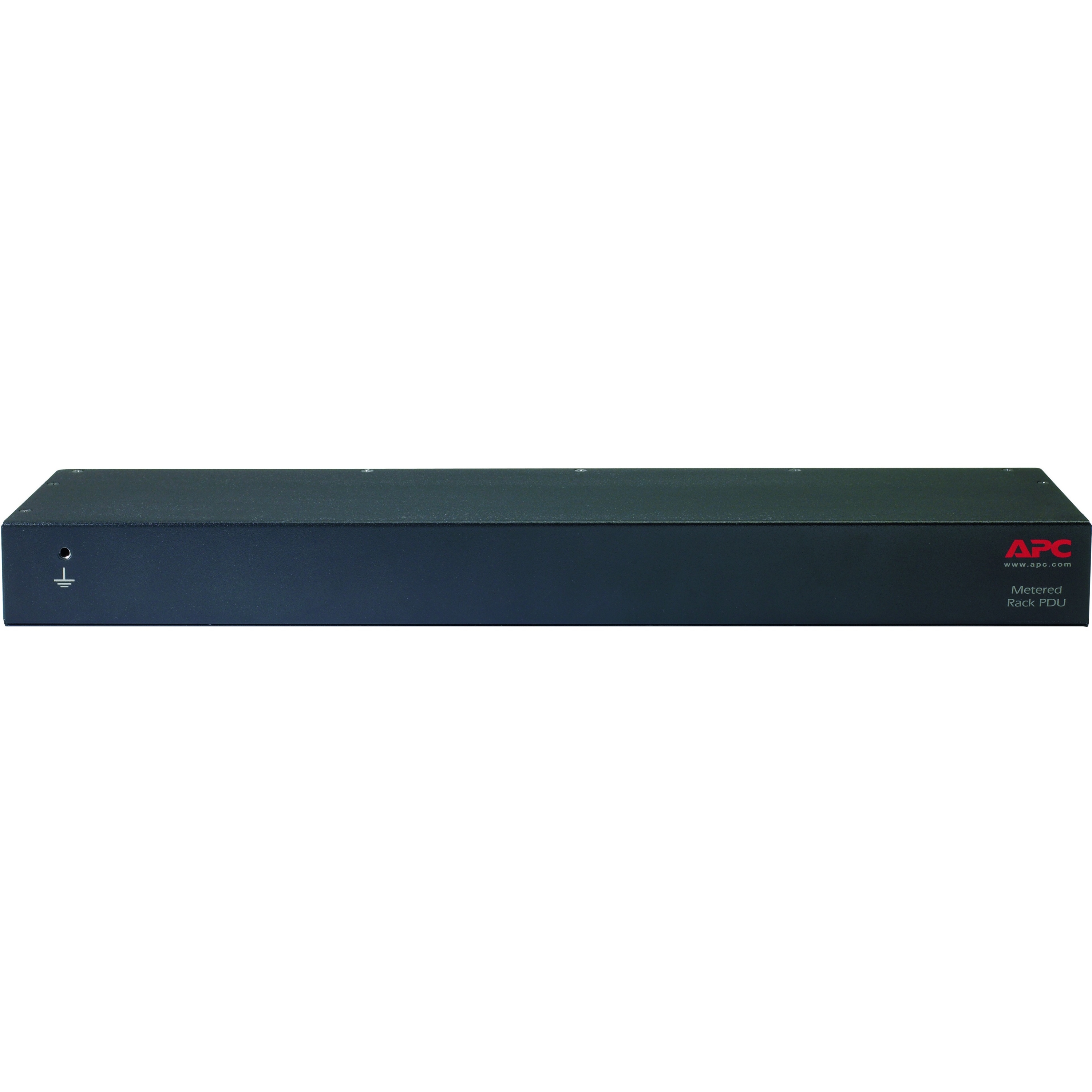

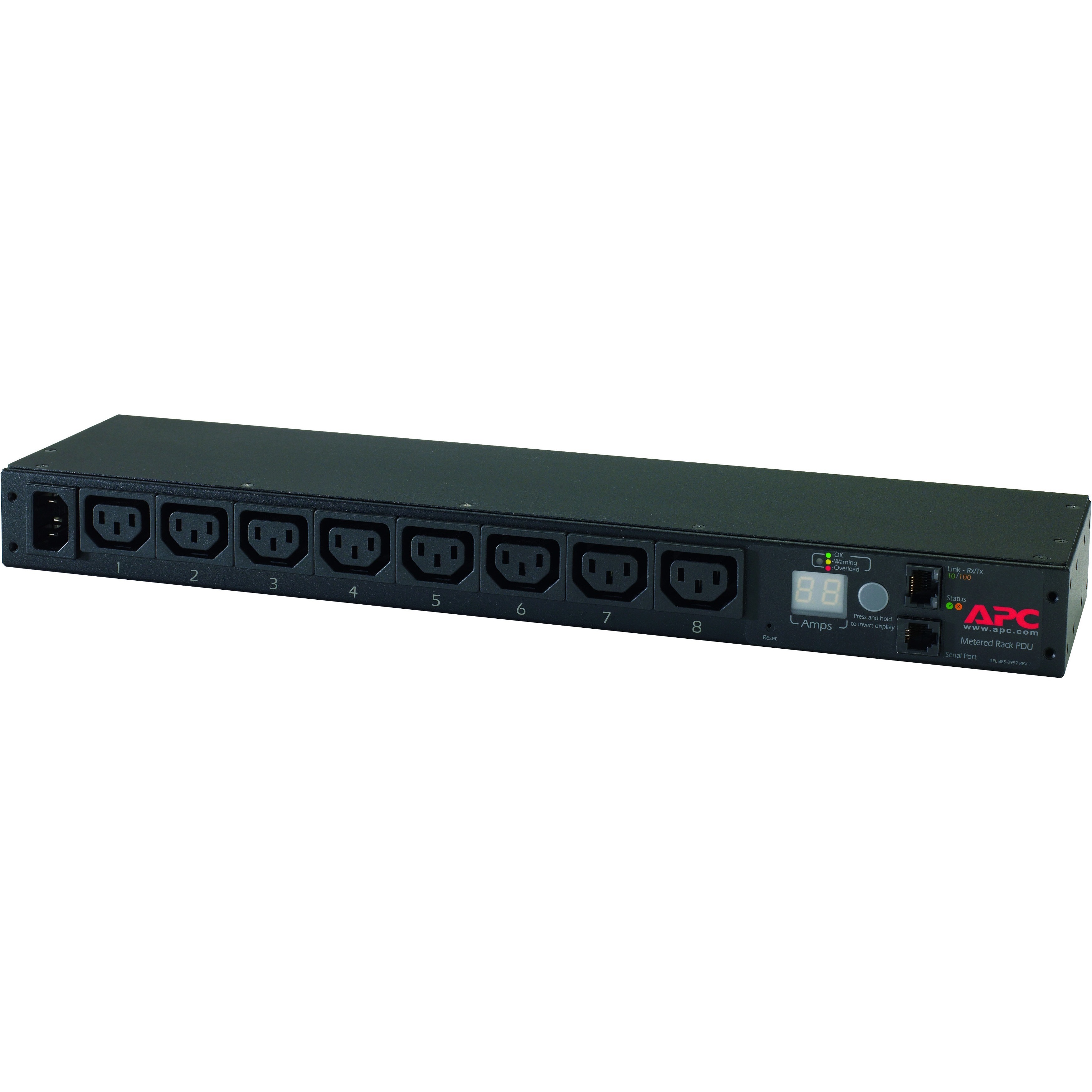

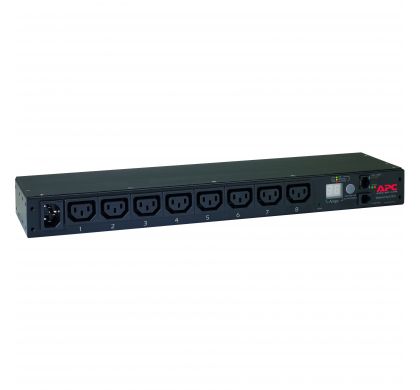

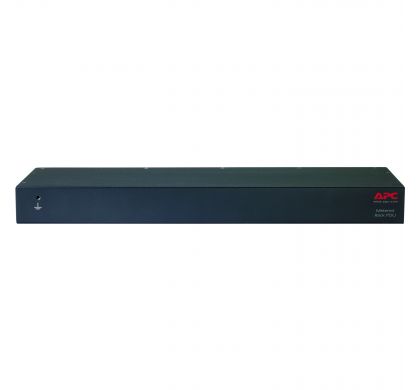

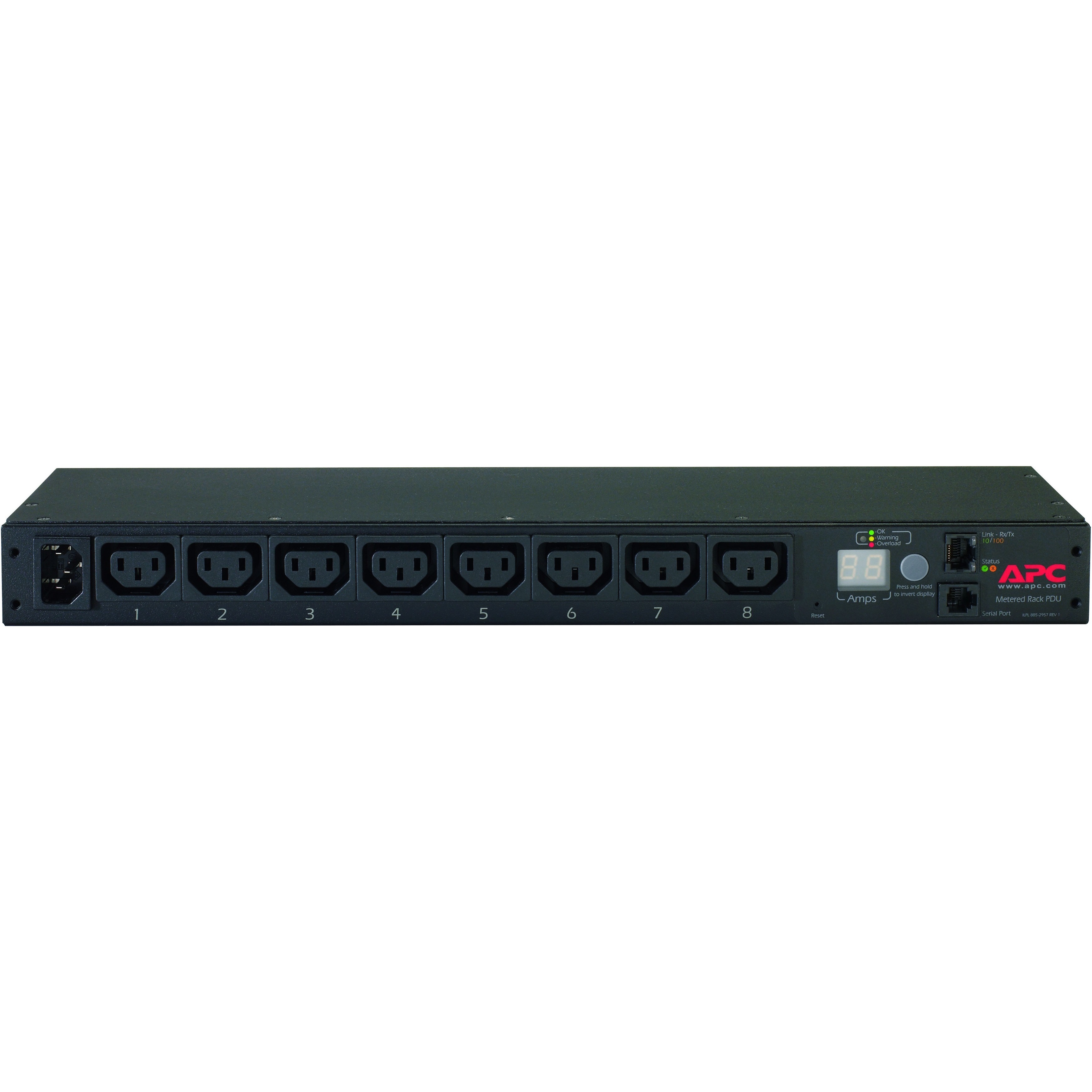

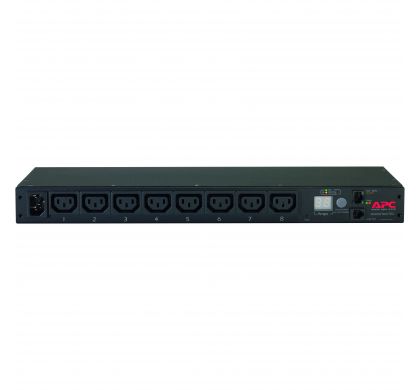

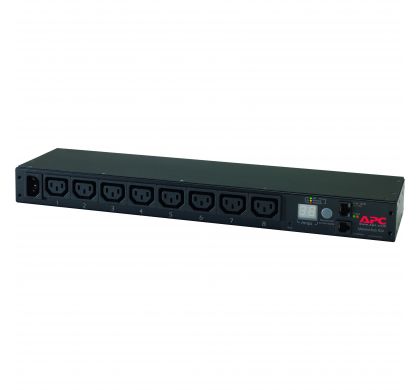

APC PDU
Description
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Name:
Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13
Product Type:
PDU
Technical Information
Input Receptacles:
IEC 60320 C20
Output Receptacles:
8 x IEC 60320 C13
Power Description
Input Voltage:
- 230 V AC
Output Voltage:
- 230 V AC
Input Current:
- 20 A
Management
Management:
- SNMP
- Telnet
- HTTP
- SSH
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Form Factor:
Rack-mountable
Rack Height:
1U
Height:
44 mm
Width:
444 mm
Depth:
102 mm
Weight (Approximate):
1.74 kg
Miscellaneous
Package Contents:
- Rack PDU, Metered, 1U, 16A, 208/230V, (8) C13
- Cord Retention Bracket(s)
- Installation Guide
- Rack Mounting Brackets
- User Manual
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
- REACH
Warranty
Standard Warranty:
2 Year
