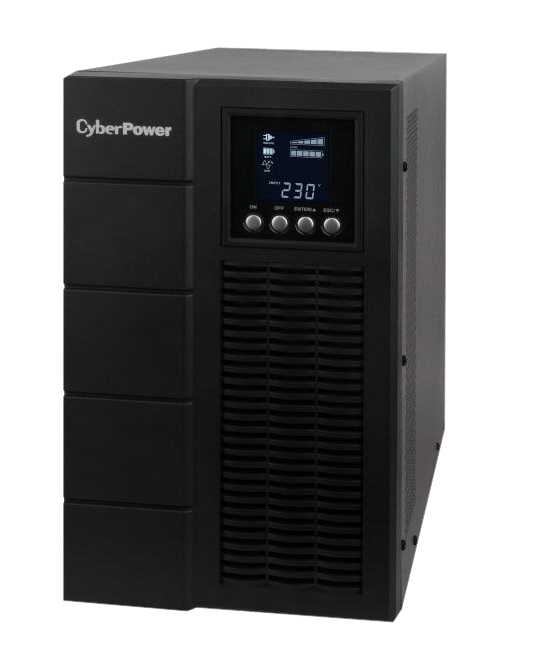

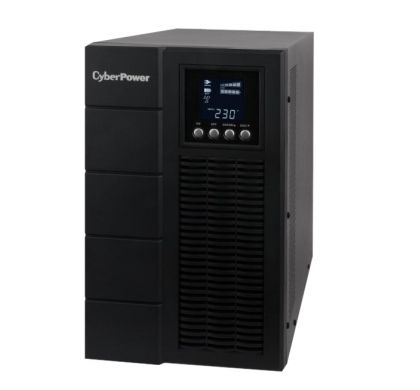

CYBERPOWER Online OLS2000E Dual Conversion Online UPS - 2000 VA/1600 WTower
Description
The Online S Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sine Ware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sine Wave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Specifications
General Information
Manufacturer:
CyberPower Systems, Inc
Manufacturer Website Address:
http://www.cyberpower.com/au
Brand Name:
CyberPower
Product Family:
Online
Product Series:
S
Product Model:
OLS2000E
Product Name:
Online S OLS2000E 2000VA Tower UPS
Product Type:
Dual Conversion Online UPS
Technical Information
Plug/Connector Type:
- IEC 60320 C20
Receptacles:
- 4 x IEC 60320 C13
- Terminal Block
Dataline Protection:
- RJ-11
- RJ-45
Protection Type:
- RFI
- EMI
- Surge
- Lightning
- Overload
- Short Circuit
Emergency Power OFF:
Yes
Power Description
Load Capacity (VA):
2000 VA
Load Capacity (Watt):
1600 W
Input Voltage:
- 280 V AC
Output Voltage:
- 240 V AC
Waveform Type:
Pure Sine Wave
Circuit Breaker:
Yes
Management
Network Management:
SNMP/HTTP Remote Monitoring
Alarm:
- Battery Mode
- Overload
- UPS Fault
- Low Battery
- Replace Battery
Battery Management:
Smart Battery Management(SBM)
Controls/Indicators
Status Indicators:
- Power On
- Line Mode
- Battery Mode
- Bypass Mode
- ECO Mode
- C/F Mode
- Fault
- Replace Battery
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Battery Information
Number of Batteries:
6
Battery Characteristics:
Maintenance-free, Sealed
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
6 Minute
Backup/Run Time (Half Load):
16 Minute
Physical Characteristics
Height:
337 mm
Width:
196 mm
Depth:
416 mm
Form Factor:
Tower
Weight (Approximate):
23.80 kg
Miscellaneous
Software Included:
PowerPanel Business Edition
