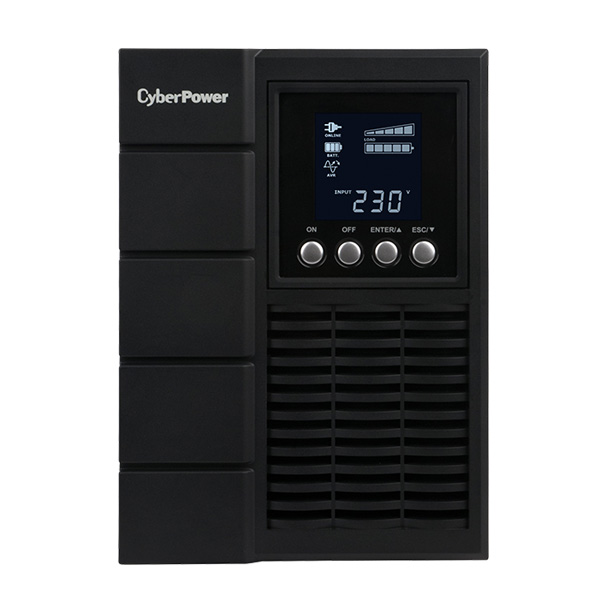

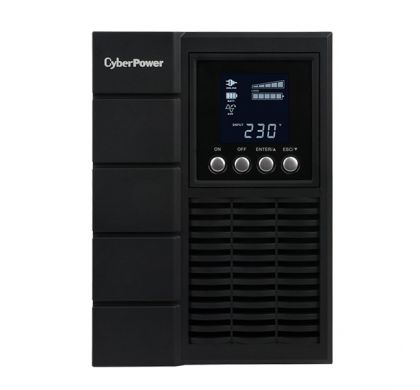

CYBERPOWER Online OLS1000E Dual Conversion Online UPS - 1000 VA/800 WTower

OLS1000E
Please Call
Please contact us for pricing

Description

The Online S Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sine Ware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sine Wave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.

Specifications

General Information

Manufacturer:
CyberPower Systems, Inc
Manufacturer Website Address:
http://www.cyberpower.com/au
Brand Name:
CyberPower
Product Family:
Online
Product Series:
S
Product Model:
OLS1000E
Product Name:
Online S OLS1000E 1000VA Tower UPS
Product Type:
Dual Conversion Online UPS

Technical Information

Plug/Connector Type:
  • IEC 60320 C14
Receptacles:
  • 4 x IEC 60320 C13
Dataline Protection:
  • RJ-11
  • RJ-45
Protection Type:
  • RFI
  • EMI
  • Surge
  • Lightning
  • Overload
  • Short Circuit
Emergency Power OFF:
Yes

Power Description

Load Capacity (VA):
1000 VA
Load Capacity (Watt):
800 W
Input Voltage:
  • 280 V AC
Output Voltage:
  • 240 V AC
Waveform Type:
Pure Sine Wave
Circuit Breaker:
Yes

Management

Network Management:
SNMP/HTTP Remote Monitoring
Alarm:
  • Battery Mode
  • Low Battery
  • UPS Fault
  • Replace Battery
  • Overload
Battery Management:
Smart Battery Management(SBM)

Controls/Indicators

Status Indicators:
  • Power On
  • Line Mode
  • Battery Mode
  • Bypass Mode
  • ECO Mode
  • C/F Mode
  • Fault
  • Replace Battery

Interfaces/Ports

Serial Port:
Yes
USB:
Yes

Battery Information

Number of Batteries:
3
Battery Characteristics:
Maintenance-free, Sealed
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
6 Minute
Backup/Run Time (Half Load):
16 Minute

Physical Characteristics

Height:
225 mm
Width:
151 mm
Depth:
394 mm
Form Factor:
Tower
Weight (Approximate):
13.10 kg

Miscellaneous

Software Included:
PowerPanel Business Edition
