STARTECH .com SAS/SATA Data Transfer Cable for Hard Drive - 50 cm - 1 Pack
Description

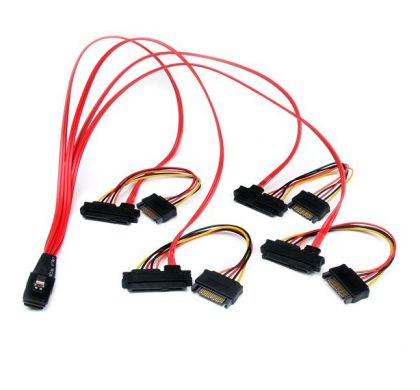

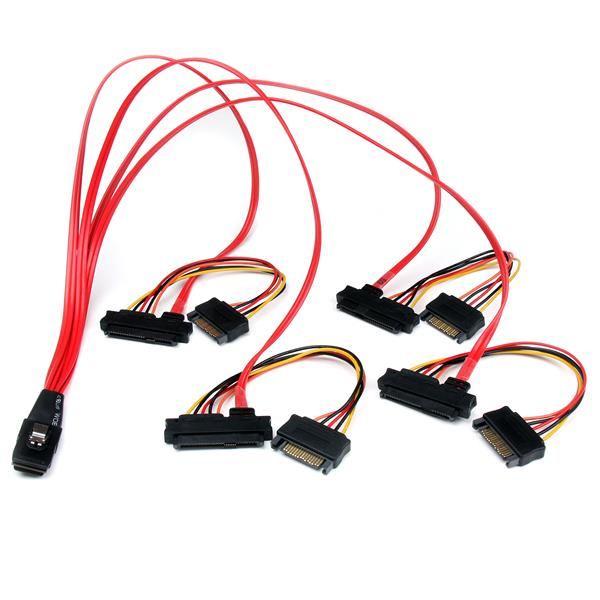

Connect a SAS Controller to 4 SAS drives. The SAS808782P50 Mini SAS to SAS cable (50cm) features one 36-pin SFF-8087 plug, which fans out to four individual 29-pin SFF-8482 receptacles, providing a reliable solution for connecting multiple SAS HDD drives (with both data and power) to a single mini SAS controller connection.
This high quality internal Mini SAS to SAS cable is designed for long-lasting dependability and reliable performance and is backed by our lifetime warranty.
Specifications
General Information
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
50cm Internal Serial Attached SCSI Mini SAS Cable - SFF8087 to 4x SFF8482
Packaged Quantity:
1
Product Type:
Data Transfer Cable
Technical Information
Cable Type:
SAS/SATA
Cable Length:
- 50 cm
Connector on First End:
- 1 x 36-pin SFF-8087 Male Mini-SAS
Connector on Second End:
- 4 x 15-pin Male SATA Power
- 4 x 29-pin SFF-8482 Mini-SAS
Conductor:
Copper
Device Supported:
- Hard Drive
Physical Characteristics
Colour:
- Red
Weight (Approximate):
90.7 g
Miscellaneous
Green Compliant:
Yes
