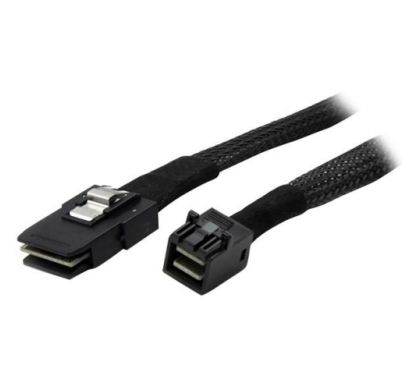

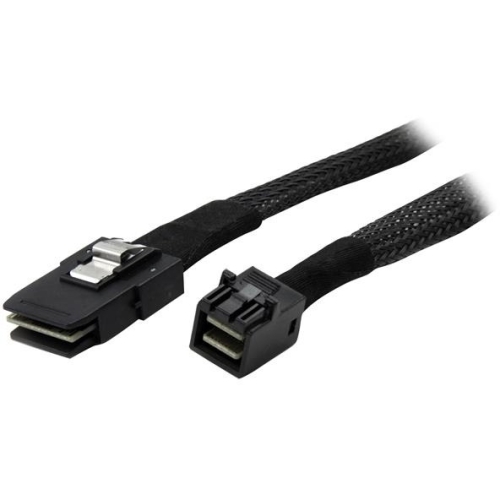

STARTECH .com Mini-SAS/Mini-SAS HD Data Transfer Cable for SATA Controller, Backplane - 1.01 m - Shielding - 1 Pack
Description
Connect a SAS controller to a SAS backplane. This internal mini-SAS cable provides a cost-saving solution for connecting a SAS or SATA adapter to a SAS or SATA backplane that has an SFF-8087 connection.
The cable is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives.
The SAS87431M is backed by StarTech.com's lifetime warranty for guaranteed reliability.
The cable is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives.
The SAS87431M is backed by StarTech.com's lifetime warranty for guaranteed reliability.
Specifications
General Information
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
1m Internal Mini SAS Cable - SFF-8087 to SFF-8643 - Mini SAS to Mini SAS
Packaged Quantity:
1
Product Type:
Data Transfer Cable
Technical Information
Cable Type:
Mini-SAS/Mini-SAS HD
Cable Length:
- 1.01 m
Connector on First End:
- 1 x 36-pin SFF-8087 Male Mini-SAS
Connector on Second End:
- 1 x 36-pin SFF-8643 Male Mini-SAS HD
Features:
- Locking Latch
Shielding:
Yes
Device Supported:
- SATA Controller
- Backplane
American Wire Gauge:
30 AWG
Physical Characteristics
Colour:
- Black
