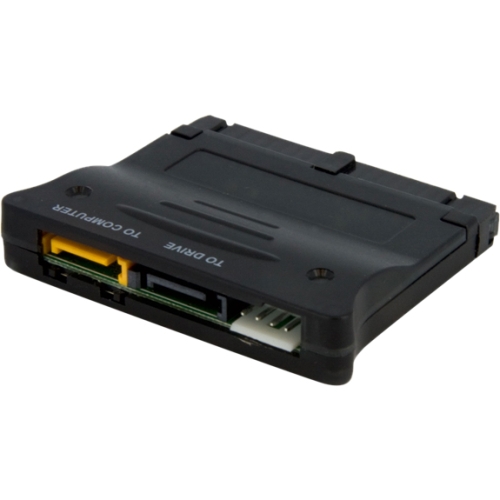

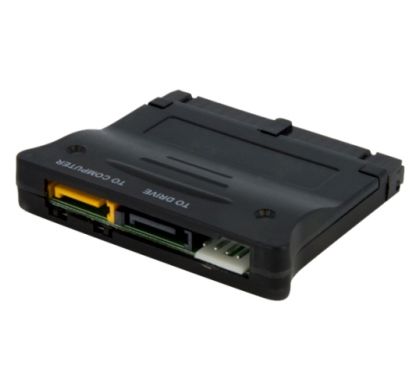

STARTECH .com PATA2SATA3 Data Transfer Adapter
Description
Bi-directional adapter converts IDE to SATA or SATA to IDE.
The PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port.
A cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives, the SATA/IDE adapter eliminates the expense of having to purchase a controller card while saving the expansion slot that would be required for card installation.
In addition to SATA hard drive installation, the adapter can be reversed in order to connect older IDE drives to a newer SATA-enabled motherboard, making it easy to retrieve old files from a previous system.
Specifications
General Information
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Model:
PATA2SATA3
Product Name:
Bi-directional SATA IDE Adapter/Converter
Product Type:
Data Transfer Adapter
Technical Information
Connector on First End:
- 1 x 40-pin Female IDE
- 1 x 4-pin SP4 Male Power
Connector on Second End:
- 2 x 7-pin Male SATA
Physical Characteristics
Colour:
- Black
Width:
50 mm
Length:
61 mm
Weight (Approximate):
20 g
Miscellaneous
Additional Information:
- OS independent: No software or drivers required
Green Compliant:
Yes
