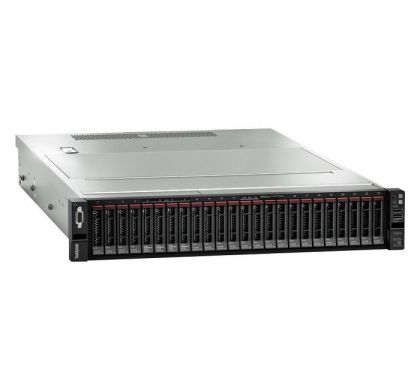

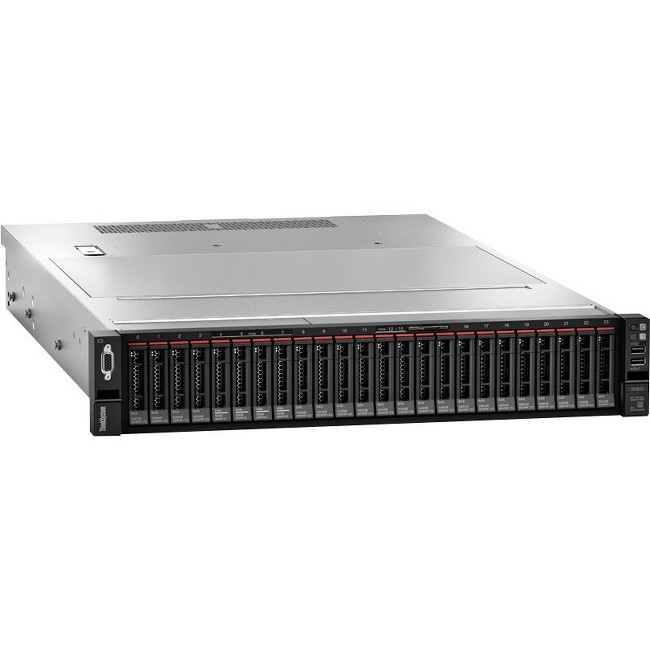

LENOVO ThinkSystem SR650 7X06100EAU 2U Rack Server - 1 x Intel Xeon Gold 6130 Hexadeca-core (16 Core) 2.10 GHz - 32 GB Installed TruDDR4 - 12Gb/s SAS, Serial ATA/600 Controller - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - 1 x 1.10 kW

7X06100EAU
Please Call
Please contact us for pricing

Description

Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
ThinkSystem
Product Series:
SR650
Product Model:
7X06100EAU
Product Name:
ThinkSystem SR650 7X06100EAU Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon Gold
Processor Model:
6130
Processor Core:
Hexadeca-core (16 Core)
Processor Speed:
2.10 GHz

Memory

Standard Memory:
  • 32 GB
Memory Technology:
TruDDR4
Number of Total Memory Slots:
24

Storage

Total Hard Drive Capacity:
No
Optical Drive Type:
No

Controllers

Controller Type:
  • 12Gb/s SAS
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 5, 6, 10, 50, 60, JBOD

I/O Expansions

Number of Total Expansion Bays:
24
Number of Internal 2.5" Bays:
24

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200
Graphics Memory Capacity:
  • Up to 16 MB

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Software

Operating System:
No

Power Description

Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
1.10 kW

Miscellaneous

Package Contents:
  • ThinkSystem SR650 7X06100EAU Server
  • Tool-less Rail Kit
  • Rack Installation Guide
  • Electronic Publications Flyer
  • 2.8 m C13-C14 Rack Power Cable
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • ENERGY STAR 2.1
  • RoHS
  • TÃœV-GS

Physical Characteristics

Form Factor:
Rack
Rack Height:
2U
Height:
86.4 mm
Width:
444.5 mm
Depth:
718.8 mm
Weight (Approximate):
32 kg

Warranty

Standard Warranty:
3 Year
