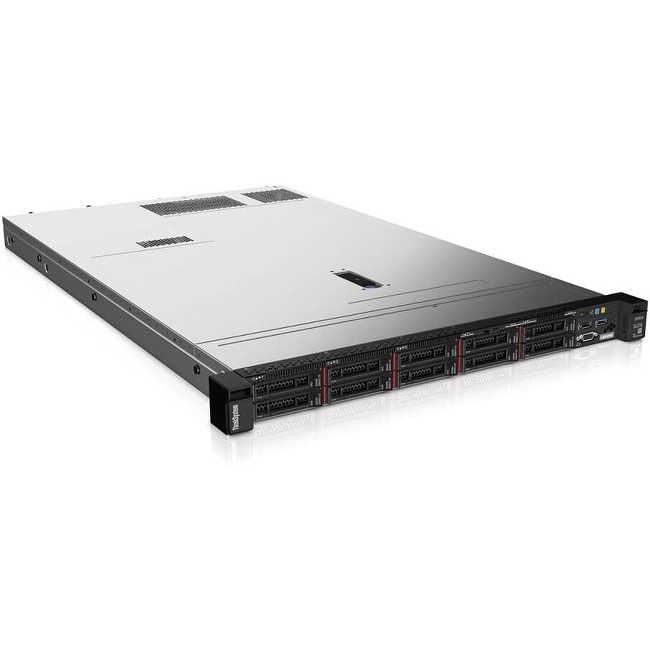

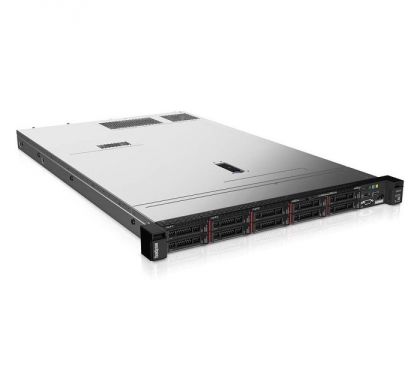

LENOVO ThinkSystem SR630 7X02100BAU 1U Rack Server - 1 x Intel Xeon Gold 5118 Dodeca-core (12 Core) 2.30 GHz - 16 GB Installed TruDDR4 - 12Gb/s SAS, Serial ATA/600 Controller - 0, 1, 5, 10, 50, JBOD RAID Levels - 1 x 1.10 kW

LENOVO ThinkSystem SR630 7X02100BAU 1U Rack Server - 1 x Intel Xeon Gold 5118 Dodeca-core (12 Core) 2.30 GHz - 16 GB Installed TruDDR4 - 12Gb/s SAS, Serial ATA/600 Controller - 0, 1, 5, 10, 50, JBOD RAID Levels - 1 x 1.10 kW
7X02100BAU
Please Call
Please contact us for pricing

Description

Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
ThinkSystem
Product Series:
SR630
Product Model:
7X02100BAU
Product Name:
ThinkSystem SR630 7X02100BAU Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon Gold
Processor Model:
5118
Processor Core:
Dodeca-core (12 Core)
Processor Speed:
2.30 GHz

Memory

Standard Memory:
  • 16 GB
Memory Technology:
TruDDR4
Number of Total Memory Slots:
24

Storage

Total Hard Drive Capacity:
No

Controllers

Controller Type:
  • 12Gb/s SAS
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 5, 10, 50, JBOD

I/O Expansions

Number of Total Expansion Bays:
8
Number of Internal 2.5" Bays:
8

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200
Graphics Memory Capacity:
  • Up to 16 MB

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Software

Operating System:
No

Power Description

Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
1.10 kW

Miscellaneous

Package Contents:
  • ThinkSystem SR630 7X02100BAU Server
  • Rack Installation Guide
  • Electronic Publications Flyer
  • Tool-less Rail Kit
  • 2.8 m C13-C14 Rack Power Cable
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • ENERGY STAR 2.1
  • RoHS
  • TÃœV-GS

Physical Characteristics

Form Factor:
Rack
Rack Height:
1U
Height:
43.2 mm
Width:
434.3 mm
Depth:
713.7 mm
Weight (Approximate):
18.80 kg

Warranty

Standard Warranty:
3 Year
