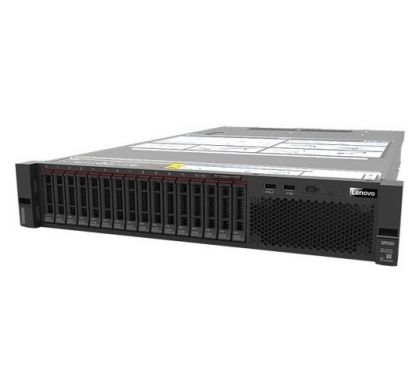

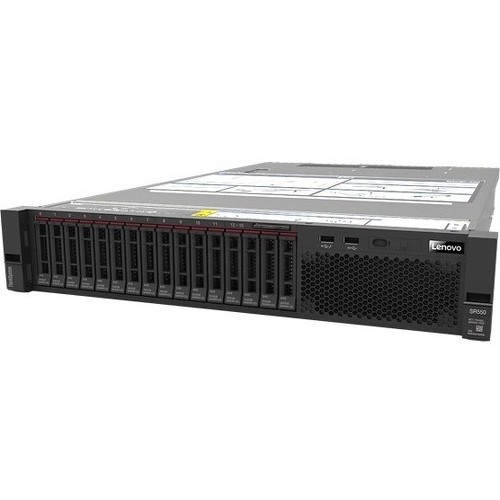

LENOVO ThinkSystem SR550 7X041003AU 2U Rack Server - 1 x Intel Xeon Bronze 3104 Hexa-core (6 Core) 1.70 GHz - 16 GB Installed TruDDR4 - 12Gb/s SAS, Serial ATA/600 Controller - 0, 1, 5, 10, 50, JBOD RAID Levels - 1 x 750 W
Description
The Lenovo ThinkSystem SR550 dual-socket 2U rack server is ideal for small to large organizations that need industry-leading reliability, management, and security, as well as cost-optimized performance, storage capacity, and flexible I/O. Designed to handle a wide range of workloads, the SR550 server cost-effectively performs complex analytics on structured and unstructured data, speeds transactional systems, and powers through collaboration workloads with ever-growing data sets and large files shared within an organization.
Specifications
General Information
Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
ThinkSystem
Product Series:
SR550
Product Model:
7X041003AU
Product Name:
ThinkSystem SR550 7X041003AU Server
Product Type:
Server
Processor & Chipset
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon Bronze
Processor Model:
3104
Processor Core:
Hexa-core (6 Core)
Processor Speed:
1.70 GHz
Memory
Standard Memory:
- 16 GB
Memory Technology:
TruDDR4
Number of Total Memory Slots:
12
Storage
Total Hard Drive Capacity:
No
Optical Drive Type:
No
Controllers
Controller Type:
- 12Gb/s SAS
- Serial ATA/600
RAID Supported:
Yes
RAID Levels:
- 0, 1, 5, 10, 50, JBOD
I/O Expansions
Number of Total Expansion Bays:
16
Number of Internal 2.5" Bays:
16
Display & Graphics
Graphics Controller Manufacturer:
- Matrox
Graphics Controller Model:
- G200
Graphics Memory Capacity:
- Up to 16 MB
Network & Communication
Ethernet Technology:
- Gigabit Ethernet
Software
Operating System:
No
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
750 W
Miscellaneous
Package Contents:
- ThinkSystem SR550 7X041003AU Server
- Rack Installation Guide
- Electronic Publications Flyer
- Tool-less Rail Kit
- 2.8 m C13-C14 Rack Power Cable
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- ENERGY STAR 2.1
- RoHS
- TÃœV-GS
Physical Characteristics
Form Factor:
Rack
Rack Height:
2U
Height:
86.4 mm
Width:
444.5 mm
Depth:
718.8 mm
Weight (Approximate):
26 kg
Warranty
Standard Warranty:
3 Year
