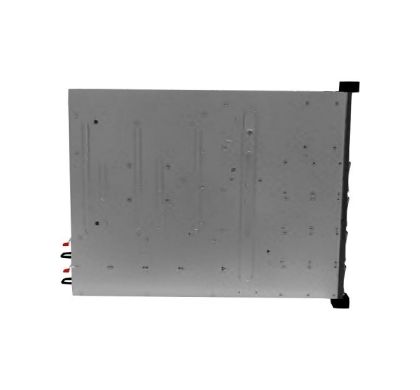

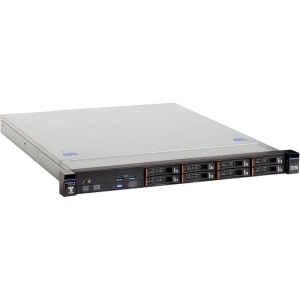

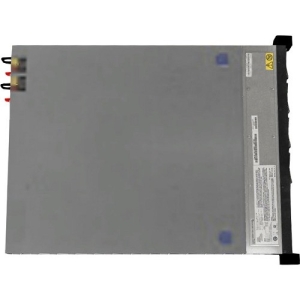

LENOVO System x x3250 M5 5458EHM 1U Rack Server - 1 x Intel Xeon E3-1231 v3 Quad-core (4 Core) 3.40 GHz

LENOVO System x x3250 M5 5458EHM 1U Rack Server - 1 x Intel Xeon E3-1231 v3 Quad-core (4 Core) 3.40 GHz
5458EHM

This product has been discontinued by the manufacturer

Please visit

LENOVO Servers

for alternative options.

Description

The IBM® System x3250 M5 single-socket 1U rack server is designed for small businesses and first-time server buyers looking for a solution to improve business efficiency. It delivers several IBM innovative features in a compact 1U form factor with a competitive price. The IBM System x3250 M5 provides next-generation performance in an innovative and compact design with flexible configuration options, built-in security, and systems management capabilities, as described in the IBM Redbooks® Product Guide. It leverages the next-generation quad-core Intel Xeon processor E3-1200 v3 product family technology.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
System x
Product Series:
x3250 M5
Product Model:
5458EHM
Product Name:
System x3250 M5 5458EHM Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E3-1231 v3
Processor Core:
Quad-core (4 Core)
Processor Speed:
3.40 GHz
Maximum Turbo Speed:
3.80 GHz
Cache:
8 MB
Direct Media Interface:
5 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C226

Memory

Standard Memory:
  • 8 GB
Maximum Memory:
32 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1600/PC3-12800
Number of Total Memory Slots:
4

Storage

Number of Hard Drives:
2
Total Hard Drive Capacity:
2 TB
Hard Drive Interface:
Serial ATA/600
Hard Drive RPM:
7200
Hard Drive Configuration:
2 x 1 TB
Optical Drive Type:
No

Controllers

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0

I/O Expansions

Number of Total Expansion Bays:
4
Number of 3.5" Bays:
4
Number of Total Expansion Slots:
2
Number of PCI Express x4 Slots:
1
Number of PCI Express x8 Slots:
1

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200eR2
Graphics Memory Capacity:
  • Up to 16 MB

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
6
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
2
Network (RJ-45):
Yes
VGA:
Yes
Remote Management:
Yes

Power Description

Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
300 W

Miscellaneous

Package Contents:
  • System x3250 M5 5458EHM Server
  • Statement of Limited Warranty
  • Important Notices
  • Rack Installation Instructions
  • Documentation CD containing Installation and User's Guide
  • Rack mount kit (static rails, non-sliding; no cable management arm included)
  • 1 x 2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable
Compatibility:
  • Microsoft Windows Server 2012 R2
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2008 R2
  • Red Hat Enterprise Linux 6 Server x64 Edition
  • Red Hat Enterprise Linux 6 Server Edition
  • Red Hat Enterprise Linux 5 Server x64 Edition
  • Red Hat Enterprise Linux 5 Server Edition
  • Red Hat Enterprise Linux 5 Server with Xen x64 Edition (support is planned for later in 2013)
  • SUSE Linux Enterprise Server 11 for AMD64/EM64T
  • SUSE Linux Enterprise Server 11 for x86
  • SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T (support is planned for later in 2013)
  • VMware vSphere 5.5 (ESXi) (support is planned for later in 2013)
  • VMware vSphere 5.1 (ESXi)
Certifications & Standards:
  • FCC - Verified to comply with Part 15 of the FCC Rules, Class A
  • Canada ICES-003, issue 4, Class A
  • UL/IEC 60950-1
  • CSA C22.2 No. 60950-1
  • NOM-019
  • Japan VCCI, Class A
  • Australia/New Zealand AS/NZS CISPR 22:2006, Class A
  • IEC-60950-1 (CB Certificate and CB Test Report)
  • Taiwan BSMI CNS 13438, Class A); CNS 14336
  • China CCC (China GB 4943-2001, GB 9254-2008 Class A, GB 17625.1:2003)
  • Korea KN22, Class A; KN24
  • Russia/GOST ME01, IEC-60950-1, GOST R 51318.22-99, GOST R 51318.24-99, GOST R 51317.3.2-2006, GOST R 51317.3.3-99
  • CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3)
  • CISPR 22, Class A
  • TUV-GS (EN60950-1/IEC60950-1,EK1-ITB2000)
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • ENERGY STAR 2.0

Physical Characteristics

Form Factor:
Rack
Rack Height:
1U
Height:
43.2 mm
Width:
434.3 mm
Depth:
576.6 mm
Weight (Approximate):
12.30 kg

Warranty

Standard Warranty:
3 Year
