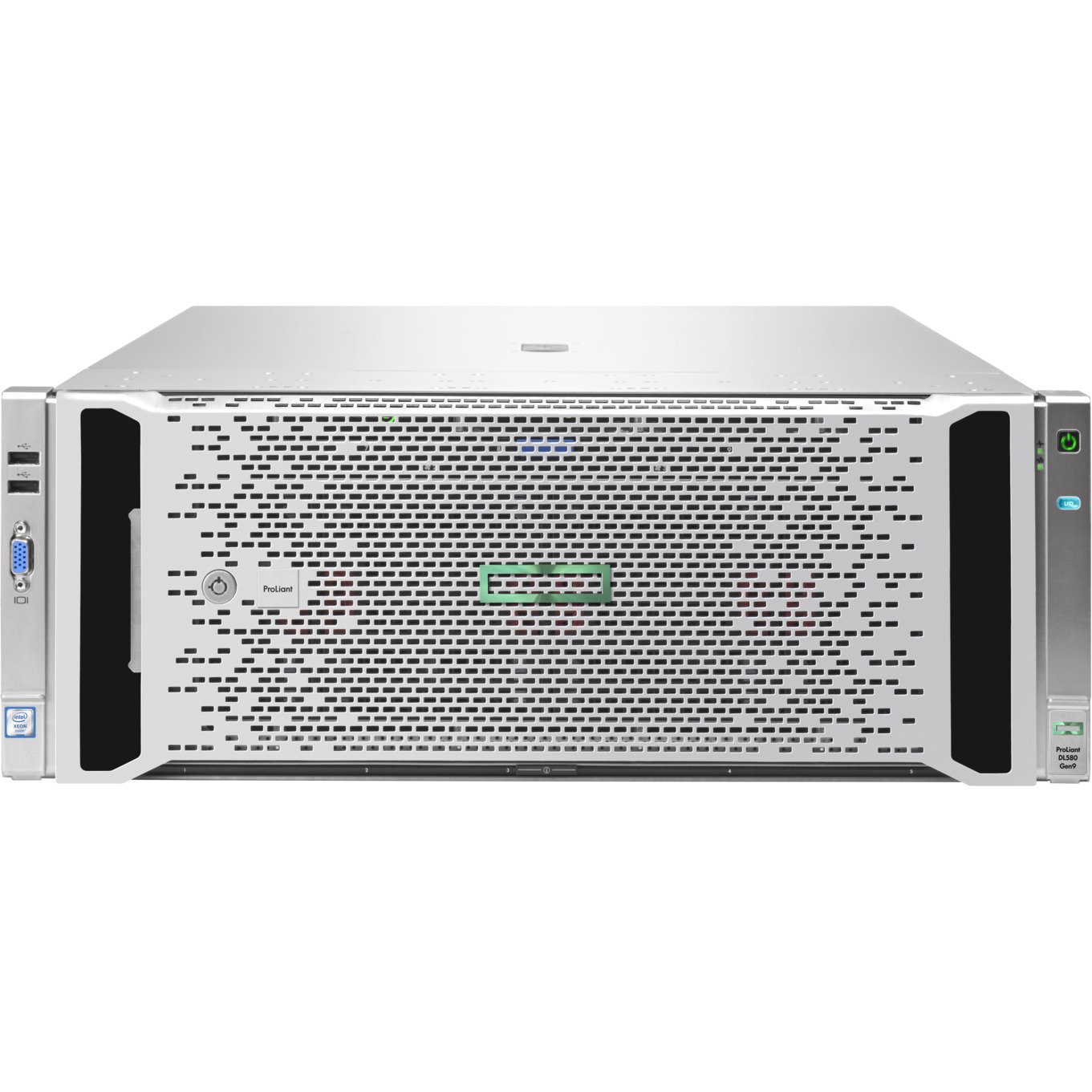

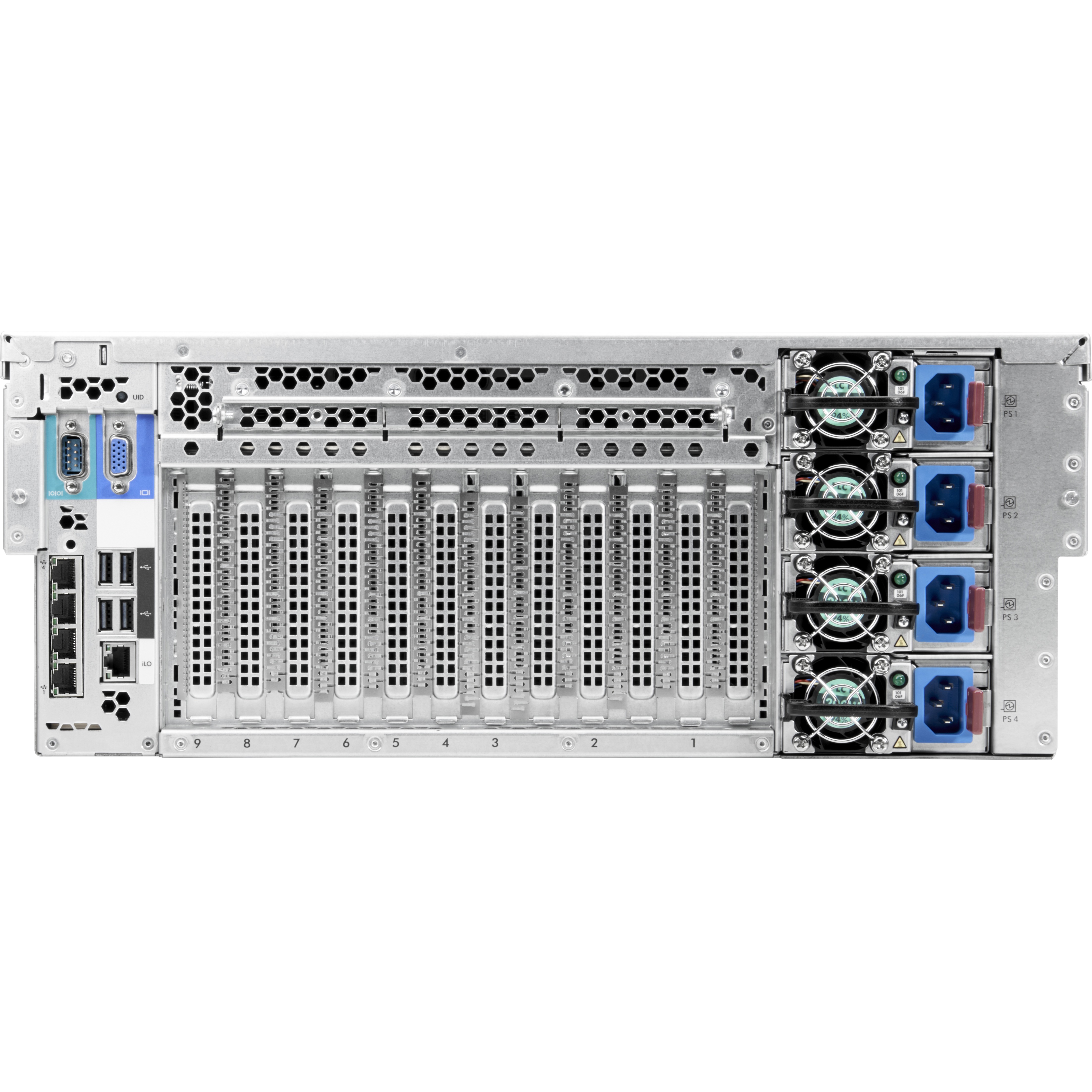

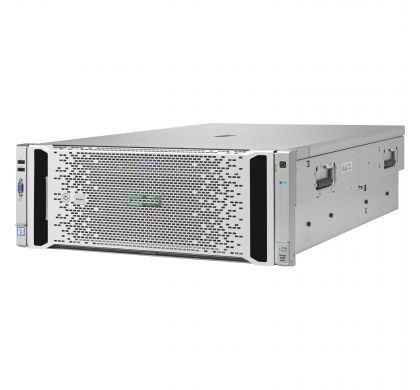

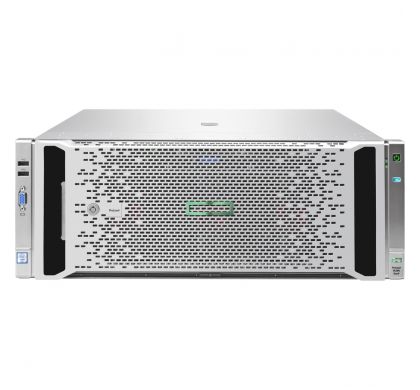

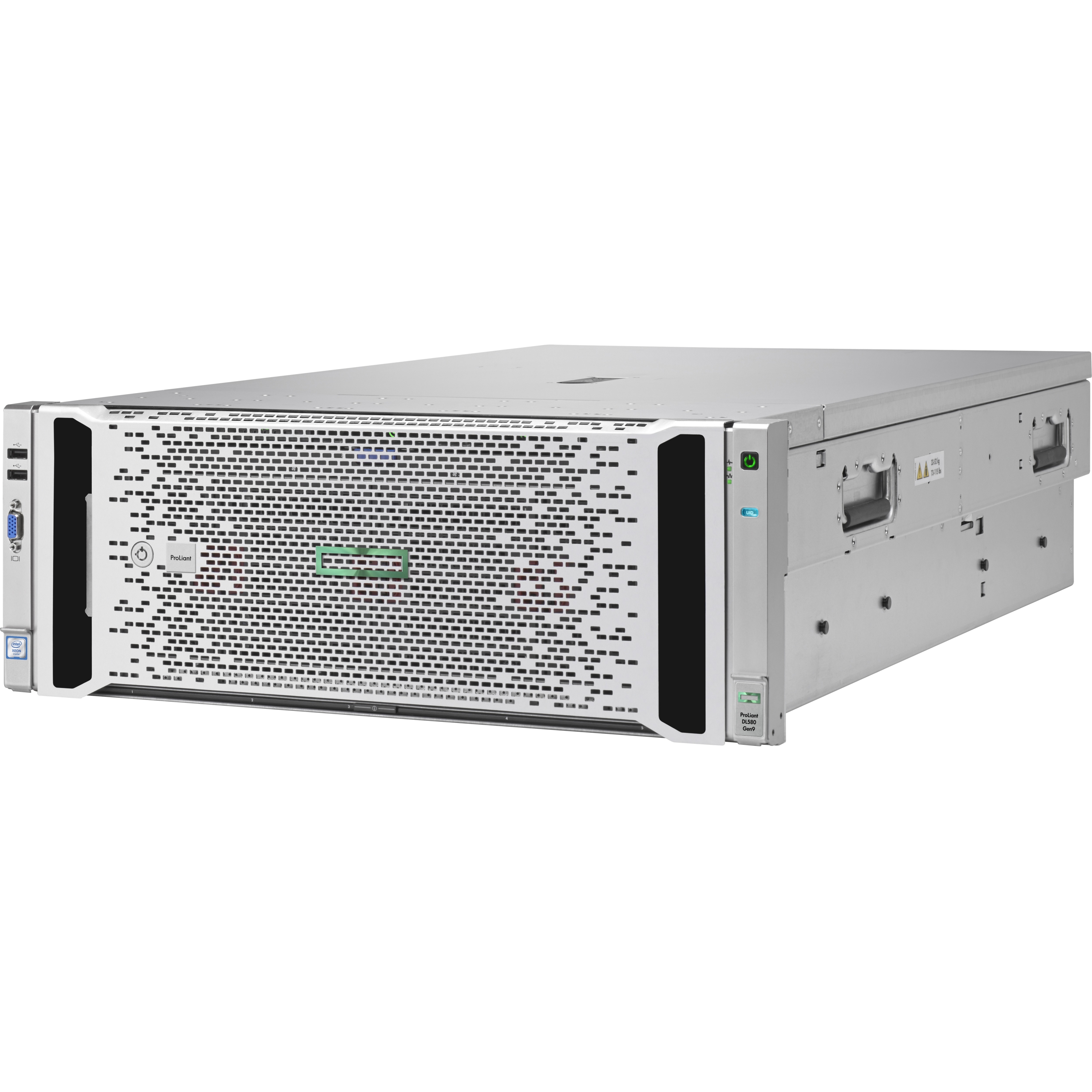

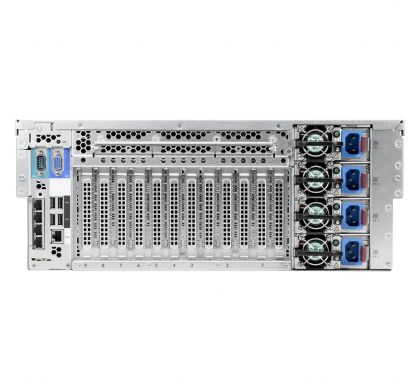

HPE HP ProLiant DL580 G9 4U Rack Server - 4 x Intel Xeon E7-4850 v4 Hexadeca-core (16 Core) 2.10 GHz - 128 GB Installed DDR4 SDRAM - 12Gb/s SAS, Serial ATA/600 Controller - 0, 1, 5, 6, 10, 50, 60 RAID Levels - 4 x 1.20 kW
This product has been discontinued by the manufacturer
Please visit
HPE Serversfor alternative options.
Description
The HPE ProLiant DL580 Gen9 Server is the Hewlett Packard Enterprise four socket (4S) enterprise standard x86 server offering commanding performance, rock-solid reliability and availability, and compelling consolidation and virtualization efficiencies.
Supporting Intel® Xeon® E7-4800/8800 v4/v3 processors, the HPE DL580 Gen9 offers enhanced processor performance, up to 6 TBs of memory, greater IO bandwidth (9 PCIe Gen3.0 slots), and 12 Gb/s of SAS speeds. HPE ProLiant DL580 Gen9 has security and data protection features for system resiliency that your business can depend on. All, making it ideal for mission-critical enterprise, business intelligence, and database applications.
Whether needed for highly virtualized or cloud based deployments, with intelligence and simplicity of automated management with HPE OneView and HPE iLO 4 your business can achieve agile and lower cost infrastructure management.
Supporting Intel® Xeon® E7-4800/8800 v4/v3 processors, the HPE DL580 Gen9 offers enhanced processor performance, up to 6 TBs of memory, greater IO bandwidth (9 PCIe Gen3.0 slots), and 12 Gb/s of SAS speeds. HPE ProLiant DL580 Gen9 has security and data protection features for system resiliency that your business can depend on. All, making it ideal for mission-critical enterprise, business intelligence, and database applications.
Whether needed for highly virtualized or cloud based deployments, with intelligence and simplicity of automated management with HPE OneView and HPE iLO 4 your business can achieve agile and lower cost infrastructure management.
Specifications
General Information
Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
https://www.hpe.com/au/
Brand Name:
HP
Product Family:
ProLiant
Product Series:
DL580 G9
Product Name:
ProLiant DL580 Gen9 E7-4850v4 4P 128GB-R P830i/4G 534FLR-SFP 1200W RPS Server
Product Type:
Server
Processor & Chipset
Number of Processors Supported:
4
Number of Processors Installed:
4
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E7-4850 v4
Processor Core:
Hexadeca-core (16 Core)
Processor Speed:
2.10 GHz
Memory
Standard Memory:
- 128 GB
Maximum Memory:
6 TB
Memory Technology:
DDR4 SDRAM
Storage
Total Hard Drive Capacity:
No
Optical Drive Type:
No
Controllers
Controller Type:
- 12Gb/s SAS
- Serial ATA/600
RAID Supported:
Yes
RAID Levels:
- 0, 1, 5, 6, 10, 50, 60
Display & Graphics
Graphics Controller Manufacturer:
- Matrox
Graphics Controller Model:
- G200
Network & Communication
Ethernet Technology:
- 10 Gigabit Ethernet
Software
Operating System:
No
Power Description
Number of Power Supplies Installed:
4
Maximum Power Supply Wattage:
1.20 kW
Redundant Power Supply:
Yes
Physical Characteristics
Form Factor:
Rack
Rack Height:
4U
Height:
175 mm
Width:
444 mm
Depth:
736 mm
Weight (Approximate):
52.87 kg
