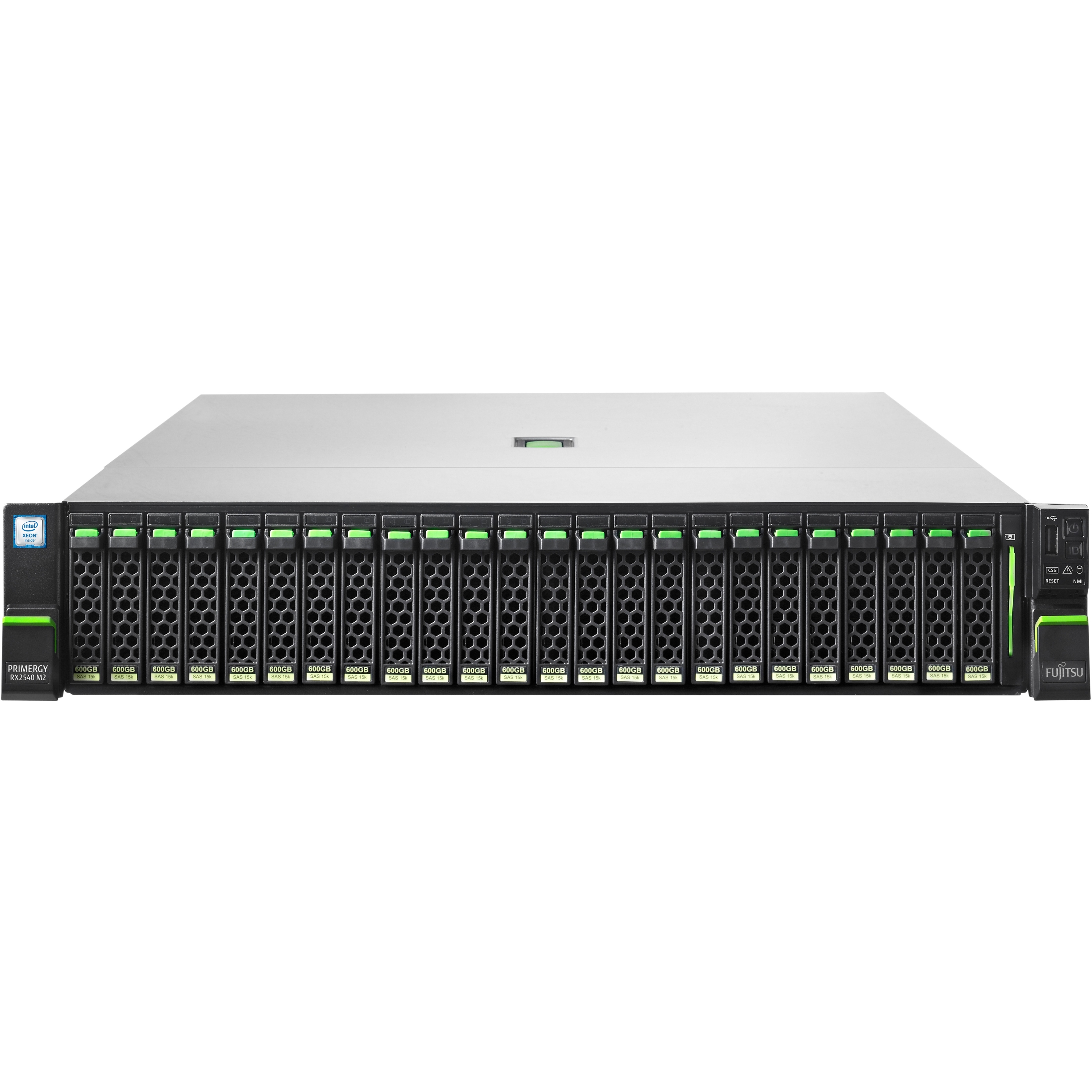

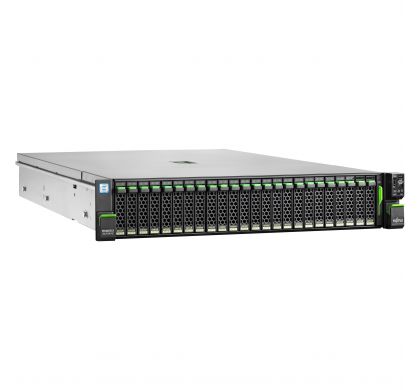

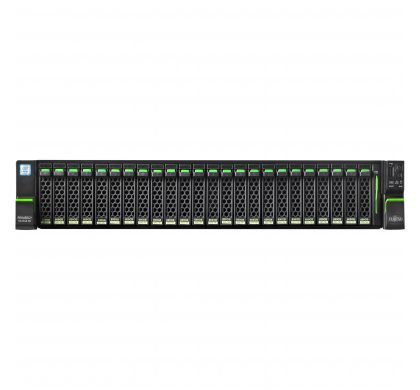

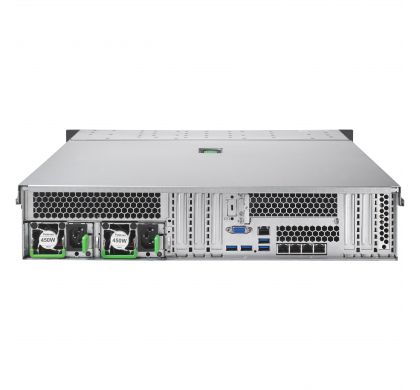

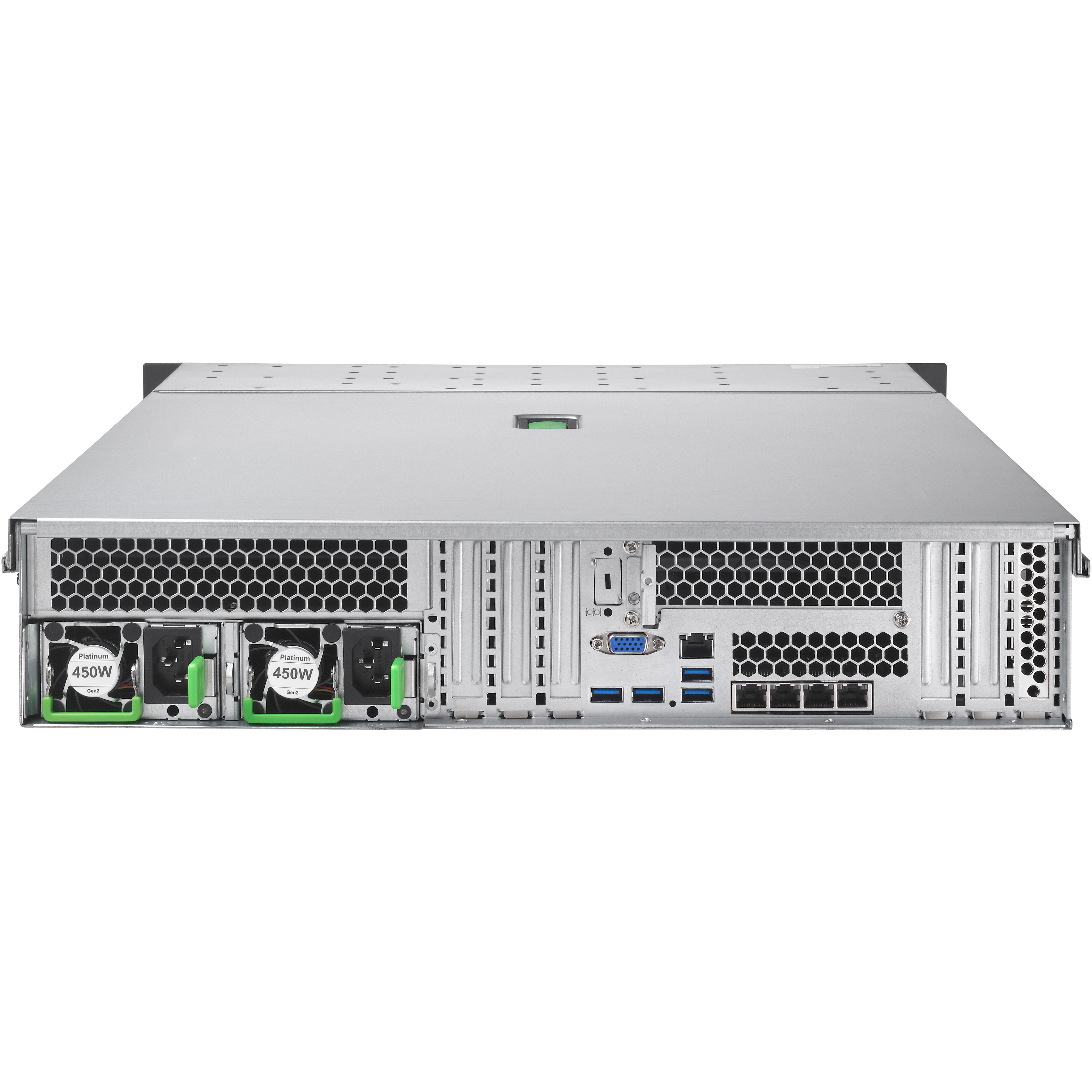

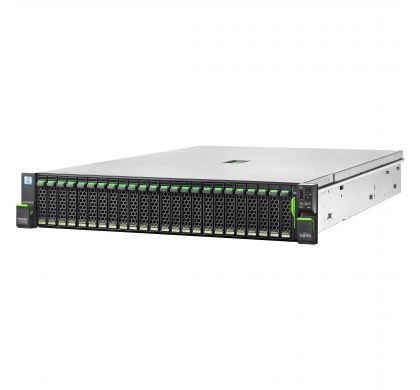

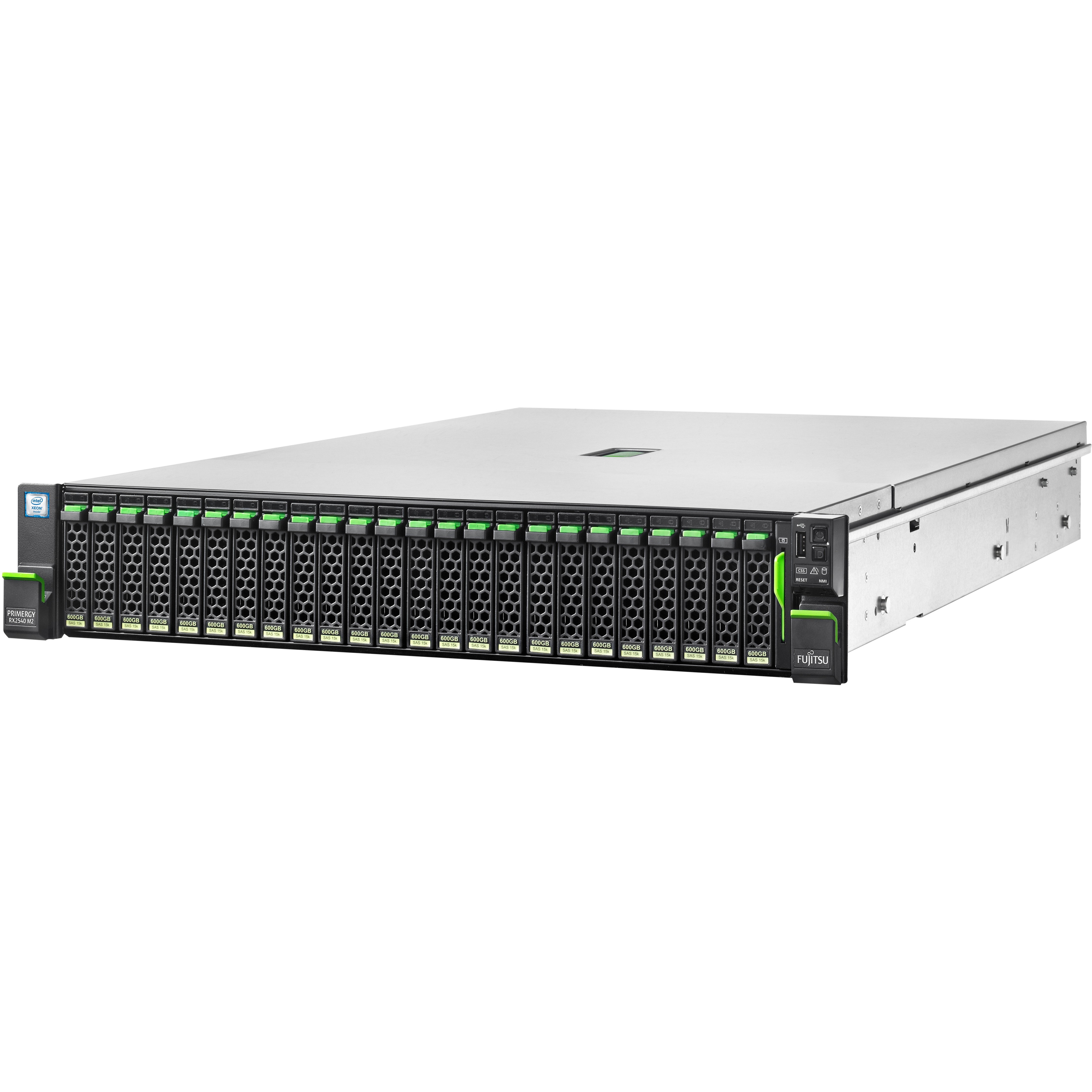

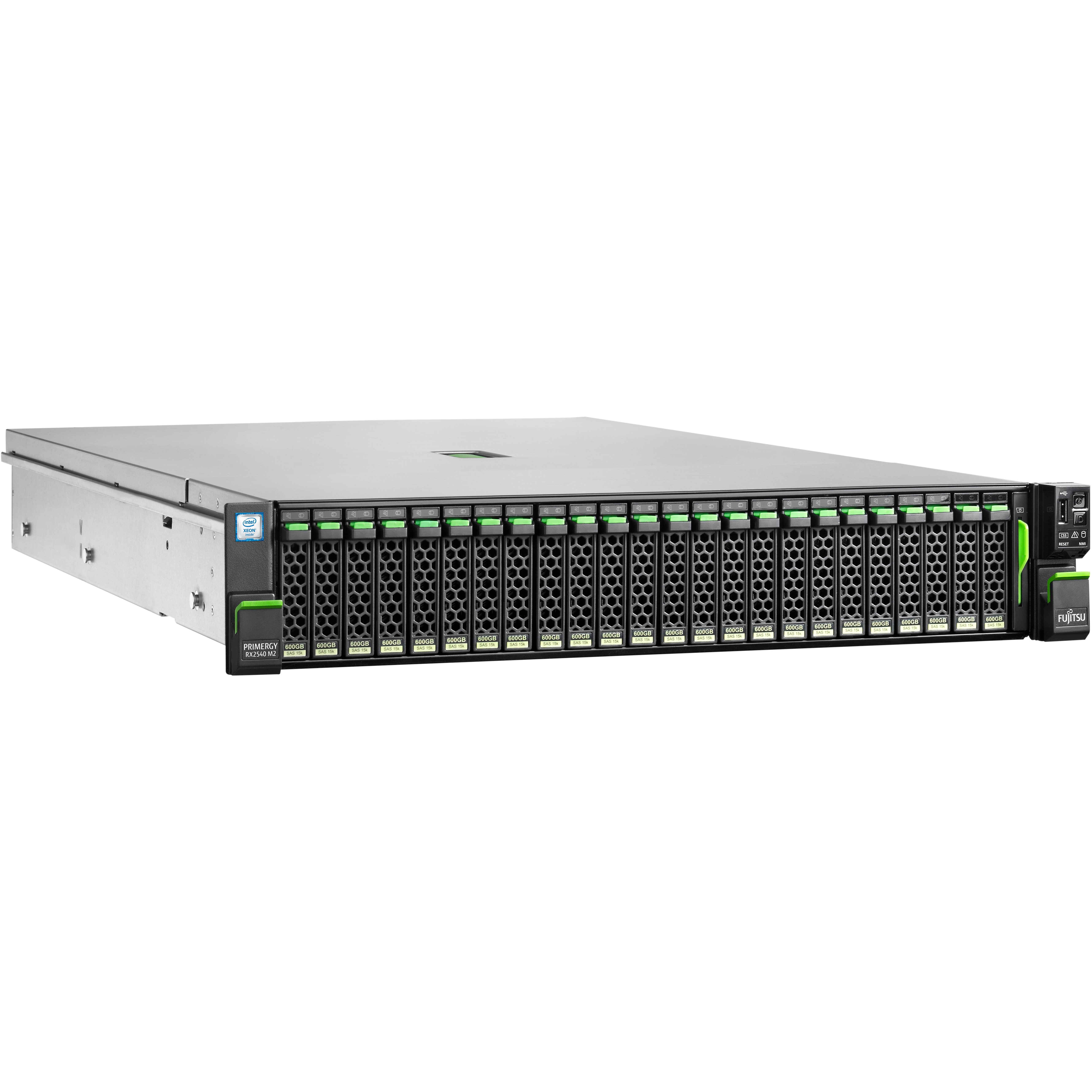

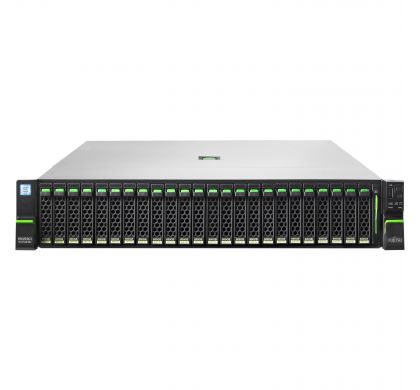

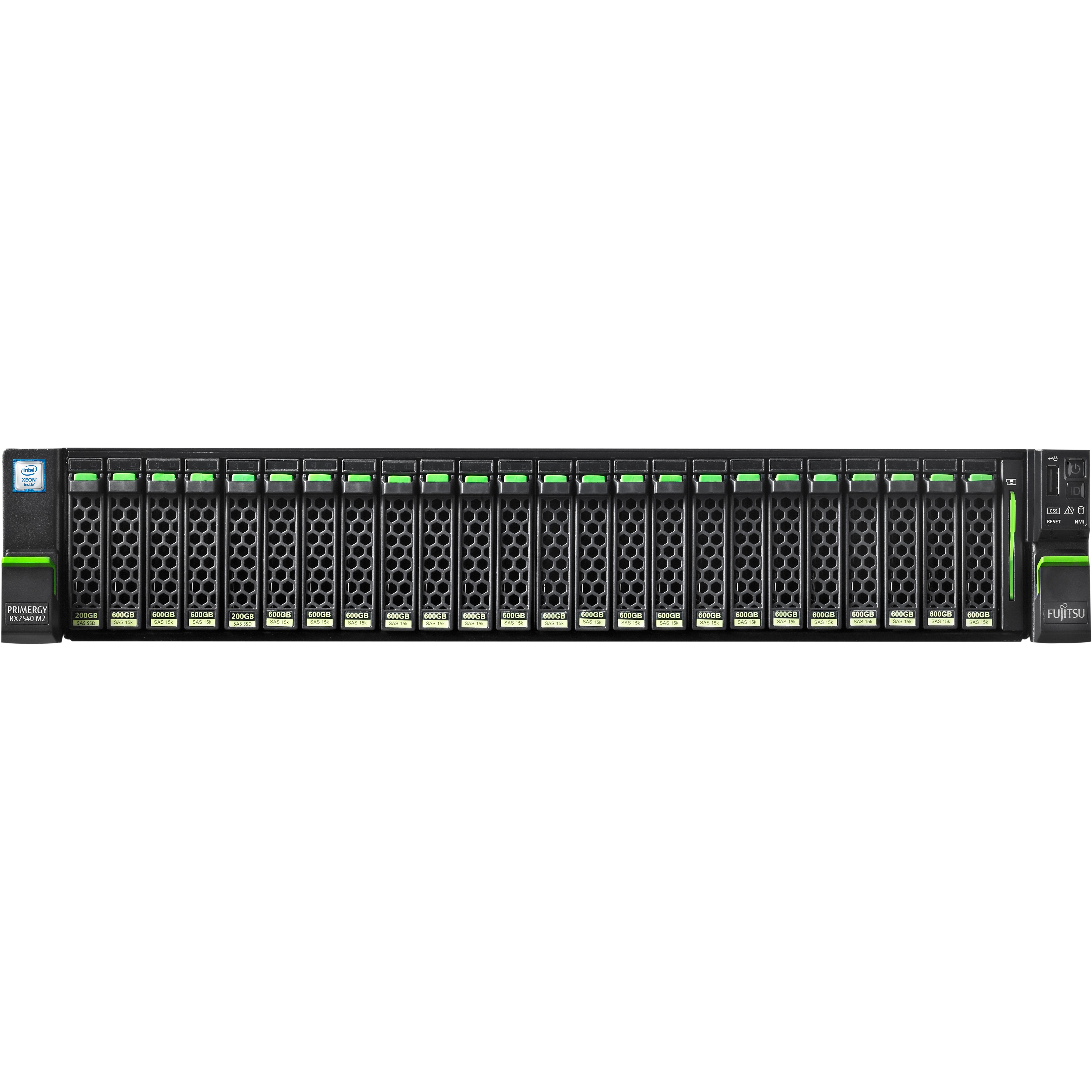

FUJITSU PRIMERGY RX2540 M2 2U Rack Server - 1 x Intel Xeon E5-2620 v4 Octa-core (8 Core) 2.10 GHz - 16 GB Installed DDR4 SDRAM - 12Gb/s SAS, Serial ATA/600 Controller - 0, 1, 5, 6, 10, 50, 60 RAID Levels - 1 x 450 W
This product has been discontinued by the manufacturer
Please visit
FUJITSU Serversfor alternative options.
Description
FUJITSU Server PRIMERGY will give you the servers you need to power any workload and changing business requirements. As business processes expand so does the need for applications. Each has its own resource footprint, so you need a way to optimize your computing to better serve your users. PRIMERGY systems will help you match your computing capabilities to your business priorities with our complete portfolio of expandable PRIMERGY tower servers for remote and branch offices, versatile rack-mount servers, compact and scalable blade systems, as well as hyper-converged scale-out servers. They convince by business proven quality with a wide range of innovations, highest efficiency cutting operational cost and complexity, provide more agility in daily operations, and integrate seamlessly to let help you concentrate on core business functions.
FUJITSU Server PRIMERGY RX rack systems are versatile rack-optimized servers providing best- in-class performance and energy efficiency, and thus form the "standard" in each data center. PRIMERGY RX servers deliver more than 20 years of development and production know-how resulting in extremely low failure rates below market average, and lead to continuous operations and outstanding hardware availability.
PRIMERGY RX2540 M2
The FUJITSU Server PRIMERGY RX2540 M2 sets higher standards for usability, scalability and cost- efficiency. It is a 2U dual-socket rack server ideal for running enterprise applications, collaboration and messaging workloads as well as traditional databases. Plus, it substantially simplifies carrying out infrastructure-related tasks like server virtualization and consolidation. As one of the key innovations, versatile performance is guaranteed by a new generation of processors. The PRIMERGY RX2540 M2 can be equipped with two of the latest Intel® Xeon® E5-2600 v4 processors with up to 44 cores. Along with new DDR4 memory technology with up to 1.5 TB it boosts application performance to be able to cope with the increasing data growth and shortens time to business results. The modular design of the server offers excellent expandability with up to 24 disk drives, high storage density, DynamicLoM technology, up to 8 PCIe Gen 3 I/O expansion slots. The DynamicLoM technology offers users the ability to individually adapt the current server network as well as the ability to change and thus meet future requirements without giving the server infrastructure a general overhaul. The PRIMERGY RX2540 M2 comes with two redundant hot-plug power supply units, offering up to 96% energy efficiency. The Cool-safe® Advanced Thermal Design allows for operation in ambient temperatures of up to 40 °C/104 °F, optionally even up to 45°C/113°F. Both these features in line help to reduce operational expenses.
FUJITSU Server PRIMERGY RX rack systems are versatile rack-optimized servers providing best- in-class performance and energy efficiency, and thus form the "standard" in each data center. PRIMERGY RX servers deliver more than 20 years of development and production know-how resulting in extremely low failure rates below market average, and lead to continuous operations and outstanding hardware availability.
PRIMERGY RX2540 M2
The FUJITSU Server PRIMERGY RX2540 M2 sets higher standards for usability, scalability and cost- efficiency. It is a 2U dual-socket rack server ideal for running enterprise applications, collaboration and messaging workloads as well as traditional databases. Plus, it substantially simplifies carrying out infrastructure-related tasks like server virtualization and consolidation. As one of the key innovations, versatile performance is guaranteed by a new generation of processors. The PRIMERGY RX2540 M2 can be equipped with two of the latest Intel® Xeon® E5-2600 v4 processors with up to 44 cores. Along with new DDR4 memory technology with up to 1.5 TB it boosts application performance to be able to cope with the increasing data growth and shortens time to business results. The modular design of the server offers excellent expandability with up to 24 disk drives, high storage density, DynamicLoM technology, up to 8 PCIe Gen 3 I/O expansion slots. The DynamicLoM technology offers users the ability to individually adapt the current server network as well as the ability to change and thus meet future requirements without giving the server infrastructure a general overhaul. The PRIMERGY RX2540 M2 comes with two redundant hot-plug power supply units, offering up to 96% energy efficiency. The Cool-safe® Advanced Thermal Design allows for operation in ambient temperatures of up to 40 °C/104 °F, optionally even up to 45°C/113°F. Both these features in line help to reduce operational expenses.
Specifications
General Information
Manufacturer:
Fujitsu
Manufacturer Website Address:
http://www.fujitsu.com/au
Brand Name:
Fujitsu
Product Family:
PRIMERGY
Product Model:
RX2540 M2
Product Name:
PRIMERGY RX2540 M2 Server
Product Type:
Server
Processor & Chipset
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5-2620 v4
Processor Core:
Octa-core (8 Core)
Processor Speed:
2.10 GHz
Memory
Standard Memory:
- 16 GB
Maximum Memory:
1.50 TB
Memory Technology:
DDR4 SDRAM
Storage
Optical Drive Type:
DVD-Writer
Controllers
Controller Type:
- 12Gb/s SAS
- Serial ATA/600
RAID Supported:
Yes
RAID Levels:
- 0, 1, 5, 6, 10, 50, 60
Display & Graphics
Graphics Memory Capacity:
- Up to 64 MB
Network & Communication
Ethernet Technology:
- Gigabit Ethernet
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
450 W
Miscellaneous
Green Compliant:
Yes
Physical Characteristics
Form Factor:
Rack
Rack Height:
2U
Height:
86.6 mm
Width:
482.4 mm
Depth:
770 mm
Weight (Approximate):
25 kg
