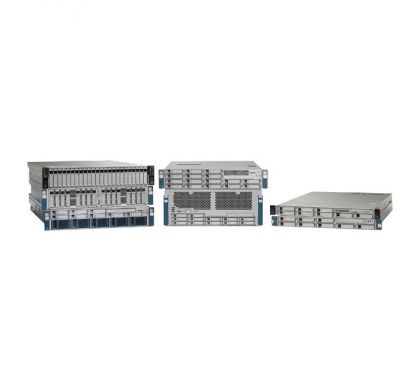

CISCO C220 M5 1U Rack Server - 2 x Intel Xeon Silver 4116 Dodeca-core (12 Core) 2.10 GHz - 64 GB Installed DDR4 SDRAM - 12Gb/s SAS Controller

UCS-SPR-C220M5-A2
Please Call
Please contact us for pricing

Description

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and up to 128GB capacities, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.

The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.

The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
C220 M5
Product Name:
UCS C220 M5 Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
2
Processor Manufacturer:
Intel
Processor Type:
Xeon Silver
Processor Model:
4116
Processor Core:
Dodeca-core (12 Core)
Processor Speed:
2.10 GHz

Memory

Standard Memory:
  • 64 GB
Maximum Memory:
3 TB
Memory Technology:
DDR4 SDRAM
Number of Total Memory Slots:
24

Controllers

Controller Type:
  • 12Gb/s SAS
RAID Supported:
Yes

I/O Expansions

Number of Total Expansion Bays:
10
Number of Internal 2.5" Bays:
10

Display & Graphics

Graphics Controller Manufacturer:
  • ASPEED
Graphics Controller Model:
  • Pilot 4
Graphics Memory Capacity:
  • Up to 16 MB

Network & Communication

Ethernet Technology:
  • 10 Gigabit Ethernet

Physical Characteristics

Form Factor:
Rack
Rack Height:
1U
Height:
43.2 mm
Width:
482.1 mm
Depth:
786.9 mm
Weight (Approximate):
17.01 kg
