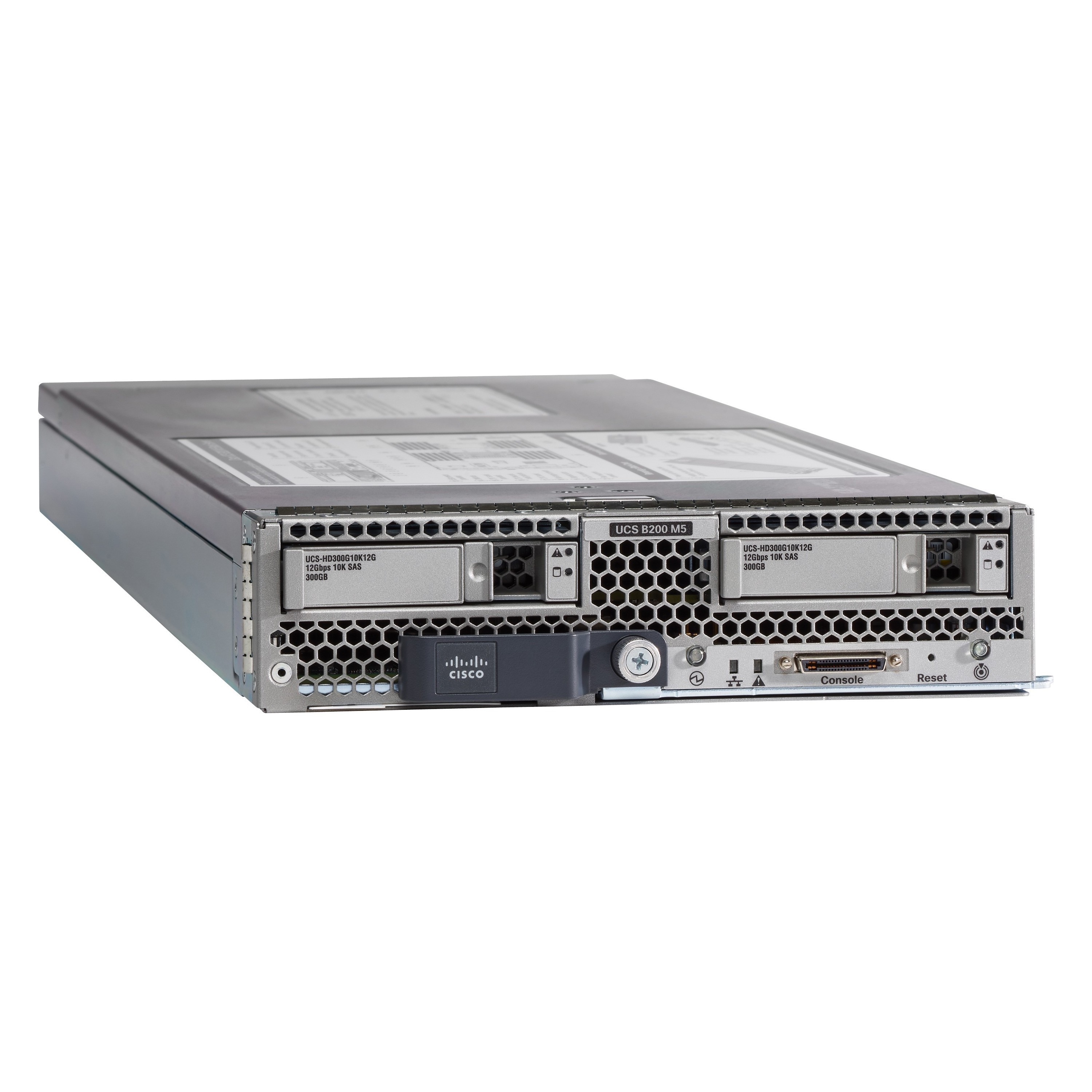

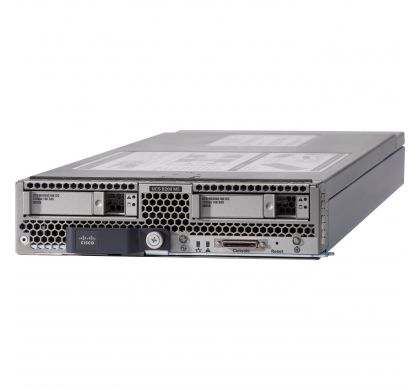

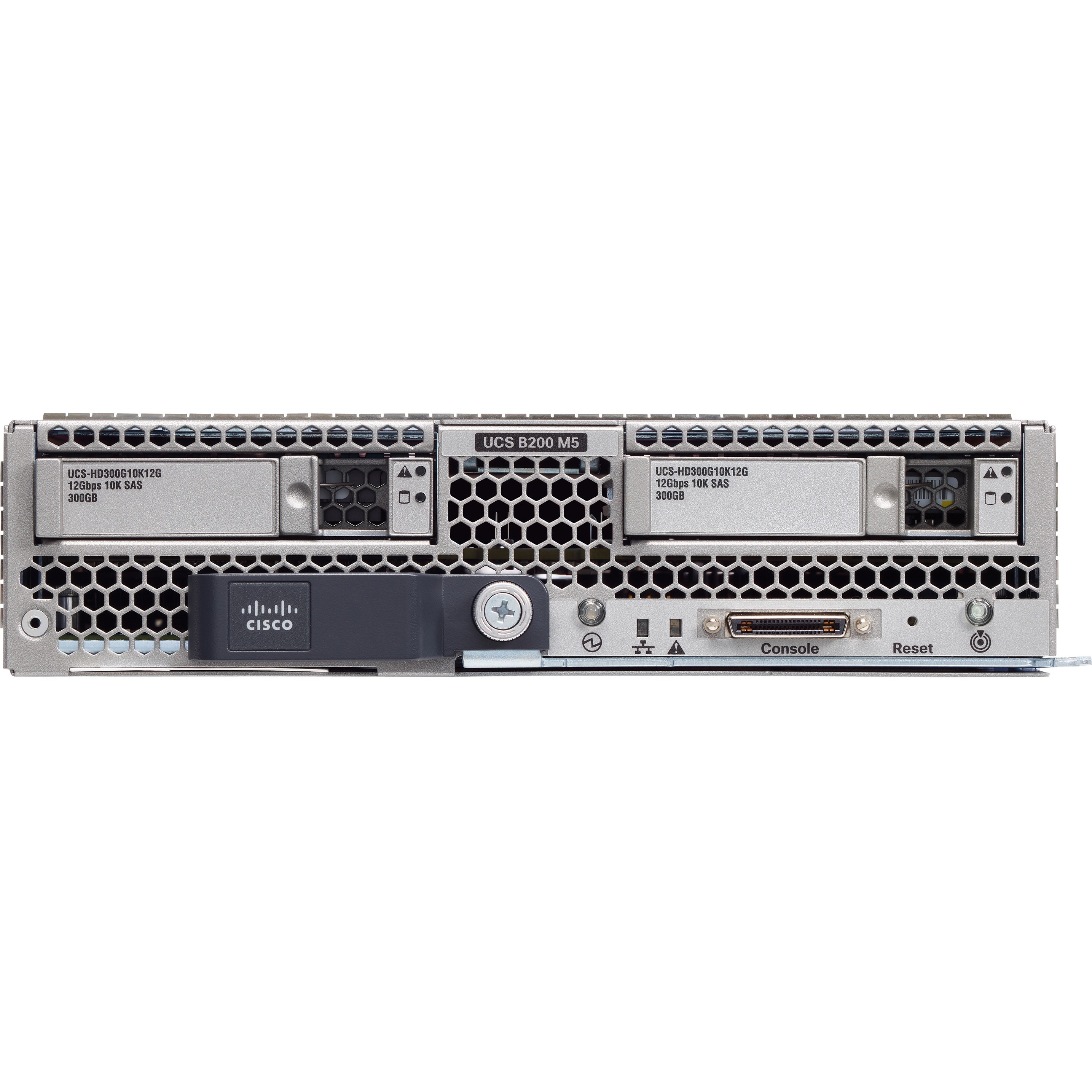

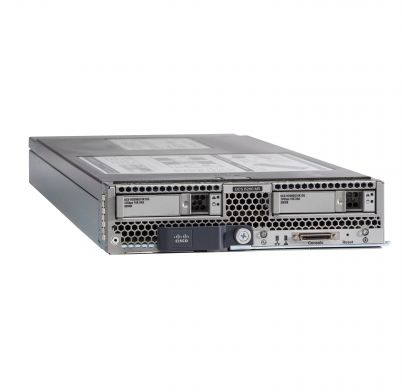

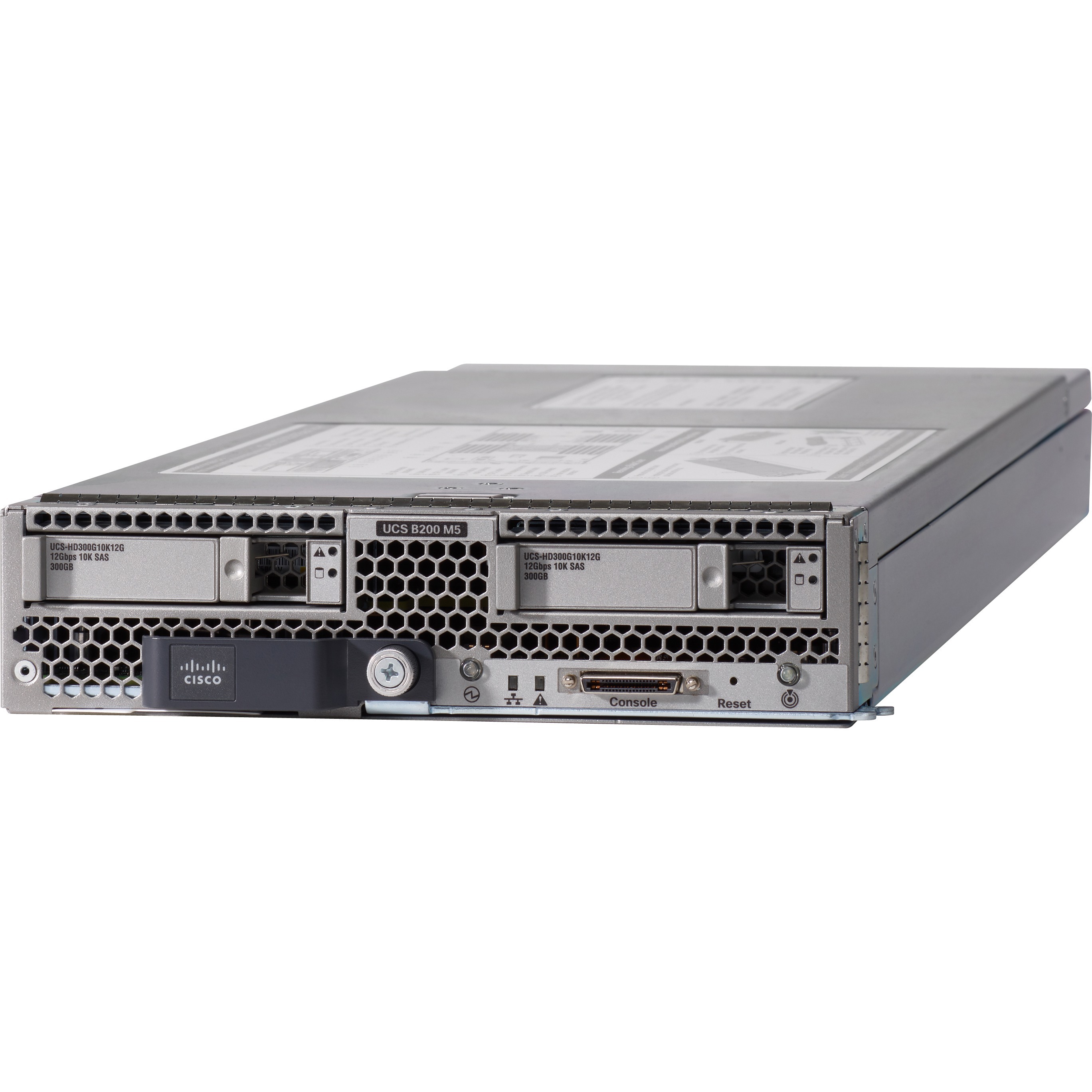

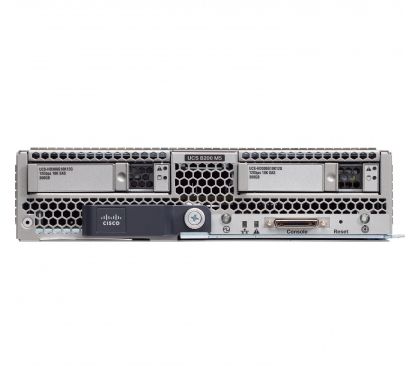

CISCO B200 M5 Blade Server - 2 x Intel Xeon Silver 4114 Deca-core (10 Core) 2.20 GHz - 192 GB Installed DDR4 SDRAM - Serial ATA, 12Gb/s SAS Controller

CISCO B200 M5 Blade Server - 2 x Intel Xeon Silver 4114 Deca-core (10 Core) 2.20 GHz - 192 GB Installed DDR4 SDRAM - Serial ATA, 12Gb/s SAS Controller
UCS-SP-B200M5-CS2

This product has been discontinued by the manufacturer

Please visit

CISCO Servers

for alternative options.

Description

Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.

The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
B200 M5
Product Name:
UCS B200 M5 Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
2
Processor Manufacturer:
Intel
Processor Type:
Xeon Silver
Processor Model:
4114
Processor Core:
Deca-core (10 Core)
Processor Speed:
2.20 GHz

Memory

Standard Memory:
  • 192 GB
Maximum Memory:
3 TB
Memory Technology:
DDR4 SDRAM
Number of Total Memory Slots:
24

Controllers

Controller Type:
  • Serial ATA
  • 12Gb/s SAS
RAID Supported:
Yes

I/O Expansions

Number of Total Expansion Bays:
2
Number of Internal 2.5" Bays:
2

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200e
Graphics Memory Capacity:
  • Up to 8 MB

Network & Communication

Ethernet Technology:
  • 10 Gigabit Ethernet

Physical Characteristics

Form Factor:
Blade
Height:
49.5 mm
Width:
203.2 mm
Depth:
619.8 mm
Weight (Approximate):
4.31 kg
