STARTECH Video Capturing Device - External

STARTECH .com Video Capturing Device - External
Retail price: $415.79
$411.75
(Includes GST) You save: $4.04 (1%) Save 1%
USB3HDCAP
Available
+
Add to favourites

Description

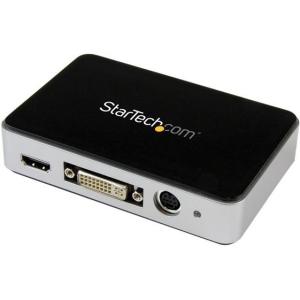

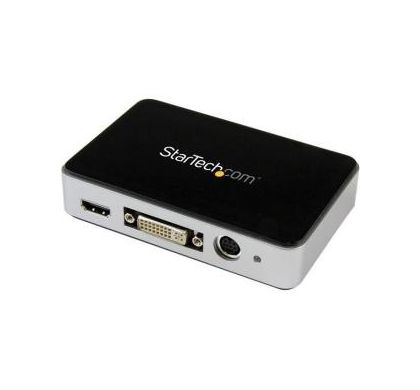

Capture a High-Definition HDMI, DVI, VGA, or Component Video source to your PC. This USB 3.0 external video capture device lets you record 1080p HD video and stereo audio to your computer system. With multiple video inputs including HDMI, DVI, VGA and component, the capture card can record original content from various sources such as computers, camcorders, security systems, POS terminals, and servers. With a framerate of 60 FPS (frames per second) and H.264 encoding, this is the perfect solution for capturing high-definition video for editing, compiling, and archiving.

Seamless picture quality at 60 FPS

Record lossless video at 60 FPS ensuring every frame of content is saved, unlike 30-frame-per-second capture devices that only catch half the action. 60 FPS exactly matches the output of most computer video cards, which is great for recording the output from your PC, server, or POS station when creating software training and tutorial videos.

H.264 encoding for wide device compatibility

The included software encodes in H.264, the most widely adopted video codec in the world, ensuring your video captures will be compatible with almost any device platform such as PC, Mac®, iOS® and Android™ with no editing or converting required. H.264 is also widely supported by most software titles including Adobe Premiere® and Windows Media® Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch or Justin.TV.

This USB capture card is capable of capturing lossless raw video making it compatible with Microsoft® DirectShow. With raw video capture you can record video using your preferred third party DirectShow software such as Open Broadcaster Software (OBS).

Flexible Input Solutions for Convenient Compatibility

With multiple A/V input options you can capture from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using our SDI to HDMI converter (SDI2HD). Support for a variety of A/V device is ideal for archiving analog video footage into a digital database.

The device also includes easy-to-use software that's compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project.

The USB3HDCAP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Notes:
Will not record digitally encrypted content.
Not compatible with ASmedia, or Etron USB 3.0 host controllers. If your system has one of these non-supported controllers you can alternatively add a PCI-express USB 3.0 controller card such as the StarTech.com PEXUSB3S4V, PEXUSB3S23,  PEXUSB3S400 or PEXUSB3S4.

Computer System Requirements:
Operating System: Microsoft® Windows® Vista / 7 / 8 / 8.1 (32/64-bit)
CPU: i3 Dual Core 2.8GHz or higher
Memory: 2 GB
USB 3.0 host controller (Confirmed support with: Intel, Renesas (NEC), VIA, AMD, Fresco FL1100)

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
USB 3.0 HD Video Capture Device
Packaged Quantity:
1
Product Type:
Video Capturing Device

Technical Information

Functions:
  • Video Conversion
  • Video Encoding
Video System:
  • NTSC
  • PAL-M
  • PAL
  • PAL60
Maximum Resolution:
1920 x 1080
Frame Rate:
60 fps
Video Formats:
  • MPEG-4
  • H.264
Platform Supported:
  • PC

Interfaces/Ports

Host Interface:
  • USB 3.0
HDMI:
Yes
Number of HDMI Inputs:
1
DVI:
Yes
Number of DVI Inputs:
1

Physical Characteristics

Form Factor:
External
Height:
25.4 mm
Width:
76.2 mm
Weight (Approximate):
106 g

Miscellaneous

System Requirements:
OS Compatibility:
  • Windows® 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
Certifications & Standards:
  • FCC
  • CE
Green Compliant:
Yes
