STARTECH USB32DVIEH Trigger T5-302 Graphic Adapter - 16 MB DDR2 SDRAM - USB 3.0

STARTECH .com USB32DVIEH Trigger T5-302 Graphic Adapter - 16 MB DDR2 SDRAM - USB 3.0
USB32DVIEH

This product has been discontinued by the manufacturer

Please visit

STARTECH Graphic Cards

for alternative options.

Description

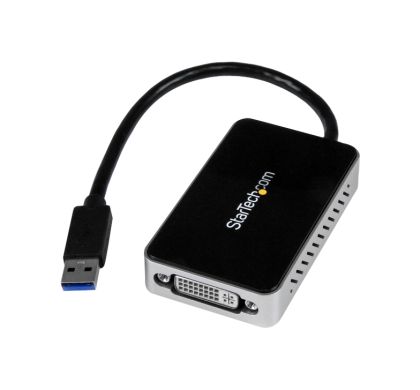

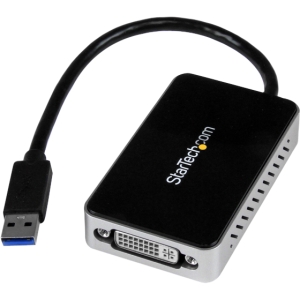

Connect a DVI-equipped display through USB 3.0, while keeping the USB 3.0 port available. The USB32DVIEH USB 3.0 to DVI Adapter turns an available USB 3.0 port into a DVI output port with high resolution 1920x1200 video support. The adapter features a built-in 1-Port USB 3.0 hub, which offers a connection port in place of the USB port used for connecting the DVI adapter - an ideal workaround for Ultrabook™ or laptop users where only a limited number of USB ports are available.

The USB to DVI adapter functions as an external graphics card, providing a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0). The included DVI to VGA adapter also allows you to use this device with a VGA display.

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your DVI display / projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Model:
USB32DVIEH
Product Name:
USB 3.0 to DVI Adapter
Packaged Quantity:
1
Product Type:
Graphic Adapter

Technical Information

Maximum Resolution:
1920 x 1200
Digital Signal:
Yes
Number of Monitors Supported:
1

Processor & Chipset

Chipset Manufacturer:
MCT
Chipset Line:
Trigger
Chipset Series:
5
Chipset Model:
T5-302

Memory

Standard Memory:
  • 16 MB
Memory Technology:
DDR2 SDRAM

Interfaces/Ports

Host Interface:
  • USB 3.0
Audio Line In:
No
Audio Line Out:
No
DVI:
Yes
Number of DVI Outputs:
1

Physical Characteristics

Form Factor:
External
Height:
17.8 mm
Thickness:
48.3 mm
Length:
83.8 mm
Weight (Approximate):
73.7 g

Miscellaneous

Package Contents:
  • USB 3.0 to DVI Adapter
  • DVI to VGA Adapter
  • Software CD
  • Manual
System Requirements:
OS Compatibility:
  • Windows® 10 (32/64)
  • Windows 8 / 8.1 (32/64)
  • Windows 7(32/64)
  • Windows Vista (32/64)
  • Windows XP (32/64)
System:
  • CPU: i3 Dual core 2.8GHz
  • RAM: 2GB or higher
Recommended System:
  • CPU: Quad Core 2.4GHz or Higher (i5 recommended)
  • RAM: 4GB or higher
Certifications & Standards:
  • FCC
  • CE
Platform Supported:
  • PC
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
2 Year
