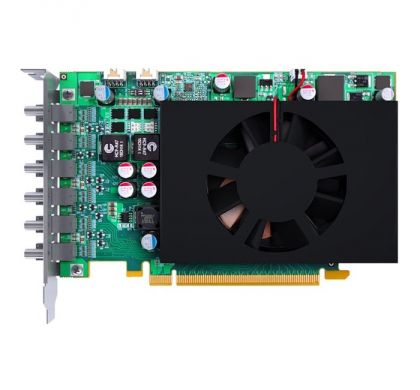

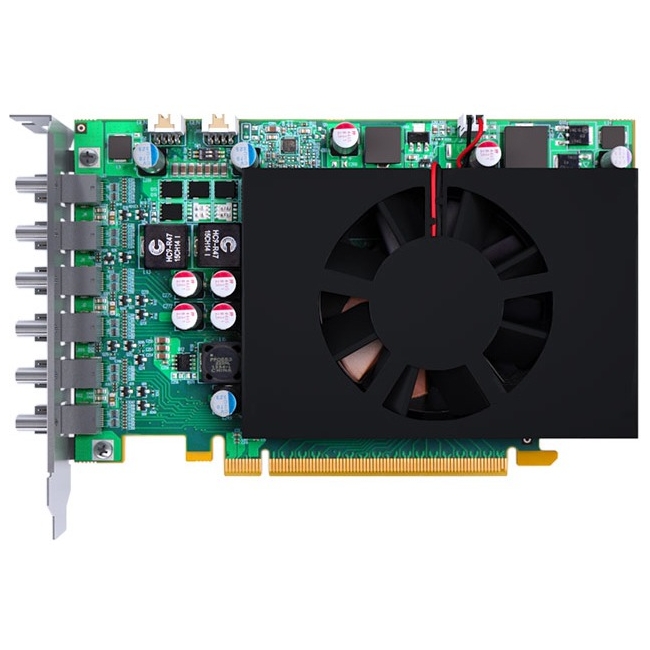

MATROX C680 Graphic Card - 4 GB GDDR5 - Half-length/Full-height

C680-E4GBF

This product has been discontinued by the manufacturer

Please visit

MATROX Graphic Cards

for alternative options.

Description

Performance Meets Flexibility

The Matrox C680 is a single-slot, PCIe® x16 graphics card that drives up to six displays or projectors at resolutions up to 4096 x 2160 per output. The versatile, six-monitor video card can power the latest Ultra HD/4K panels as well as enable 12-monitor configurations when combined with a second Matrox C680 board. The board-to-board framelock feature ensures synchronization of all displays to reduce tearing on digital signage and video walls. With its high reliability, outstanding performance, and advanced multi-monitor capabilities, Matrox C680 delivers the best display density for demanding commercial and critical applications including enterprise, industrial, pro A/V, digital signage, security, control rooms and more.

Specifications

General Information

Manufacturer:
Matrox
Manufacturer Website Address:
http://www.matrox.com
Brand Name:
Matrox
Product Name:
Matrox C680 Graphic Card
Product Type:
Graphic Card

Technical Information

API Supported:
  • DirectX 12
  • OpenGL 4.4
  • OpenCL 1.2
Number of Monitors Supported:
6

Processor & Chipset

Chipset Manufacturer:
Matrox
Chipset Model:
C680

Memory

Standard Memory:
  • 4 GB
Memory Technology:
GDDR5

Interfaces/Ports

Mini DisplayPort:
Yes
Number of Mini DisplayPort Outputs:
6

Physical Characteristics

Form Factor:
Plug-in Card
Card Length:
Half-length
Card Height:
  • Full-height
Cooler Type:
  • Fan Cooler
Height:
102.7 mm
Length:
167.6 mm

Miscellaneous

Platform Supported:
  • Linux
  • PC
Green Compliant:
Yes
