LENOVO 10Gigabit Ethernet Card for Server
Description
The IBM® Flex System™ FC5052 2-port and FC5054 4-port 16Gb FC Adapters enable the highest FC speed access for Flex System compute nodes to an external storage area network (SAN). These adapters are based on the proven Emulex Fibre Channel stack, and work with 16 Gb Flex System Fibre Channel switch modules.

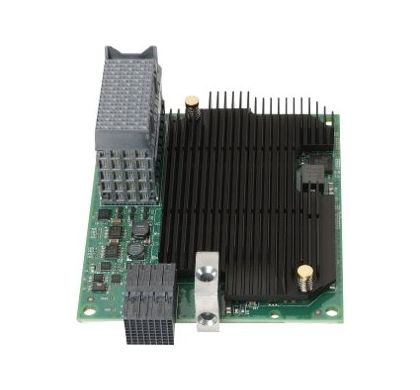

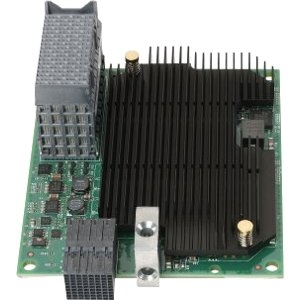

As the only 4-port HBA for IBM Flex System, the FC5054 provides unmatched scalability and redundancy. In addition, the FC5054 has two separate ASICs with no bridge chip, so data flows directly to an independent PCIe bus for high availability without a single point of failure. It also allows for logical partitioning on IBM Power Systems™ compute nodes. The following figure shows the IBM Flex System FC5054 4-port 16Gb FC Adapter.
As the only 4-port HBA for IBM Flex System, the FC5054 provides unmatched scalability and redundancy. In addition, the FC5054 has two separate ASICs with no bridge chip, so data flows directly to an independent PCIe bus for high availability without a single point of failure. It also allows for logical partitioning on IBM Power Systems™ compute nodes. The following figure shows the IBM Flex System FC5054 4-port 16Gb FC Adapter.
Specifications
General Information
Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Name:
Flex System FC5054 4-Port 16Gb FC Adapter
Product Type:
10Gigabit Ethernet Card
Interfaces/Ports
Host Interface:
- PCI Express x8
Total Number of Ports:
4
Media & Performance
Media Type Supported:
- Optical Fiber
Network & Communication
Network Technology:
- Fibre Channel
Physical Characteristics
Form Factor:
Plug-in Card
Width:
99.1 mm
Depth:
78.7 mm
Weight (Approximate):
13 g
Miscellaneous
Device Supported:
- Server
Platform Supported:
- PC
