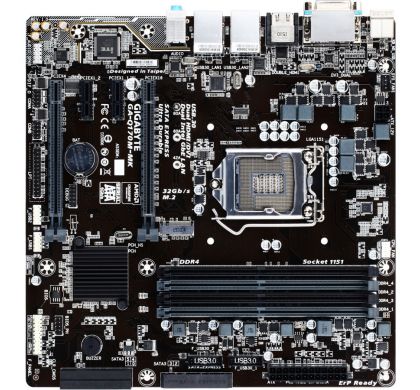

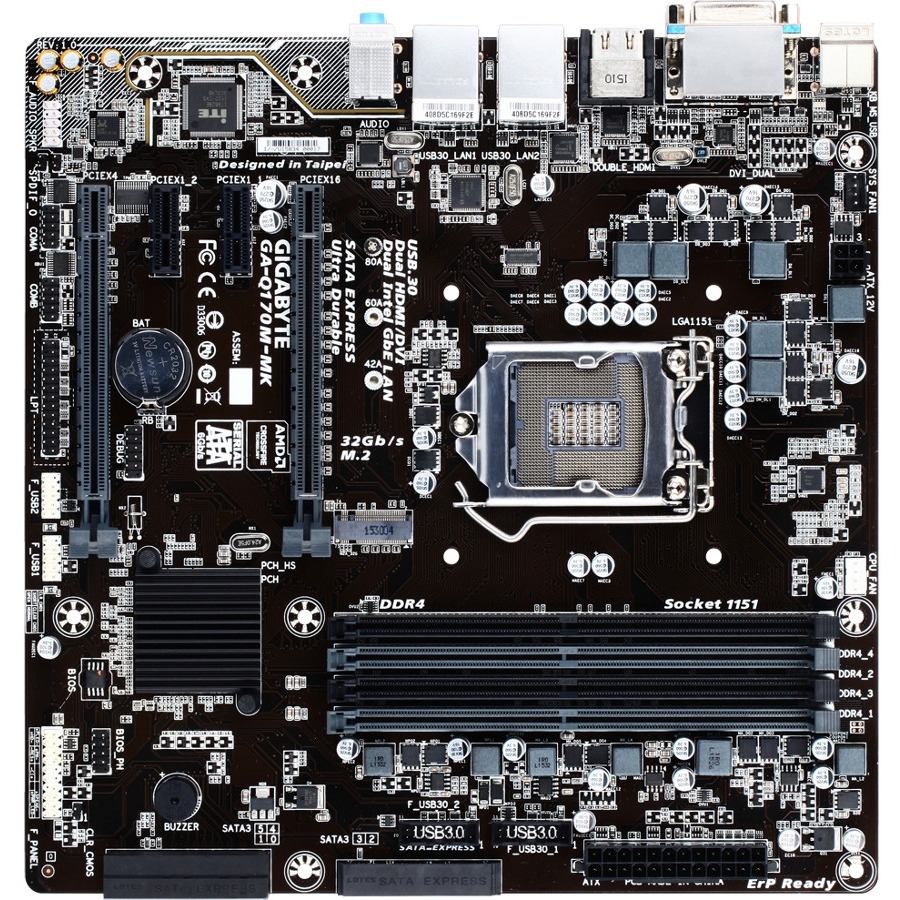

GIGABYTE Ultra Durable GA-Q170M-MK Desktop Motherboard - Intel Q170 Chipset - Socket H4 LGA-1151

GIGABYTE Ultra Durable GA-Q170M-MK Desktop Motherboard - Intel Q170 Chipset - Socket H4 LGA-1151
GA-Q170M-MK

This product has been discontinued by the manufacturer

Please visit

GIGABYTE Motherboards

for alternative options.

Description

Intel® Q170 Chipset

  • Supports 6th Generation Intel® Core™ Processor
  • Dual Channel DDR4, 4 DIMMs
  • 2-Way Graphics with Premium PCIe Lane
  • PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
  • 3 SATA Express Connectors for up to 16Gb/s Data Transfer
  • 8-channel HD Audio with High Quality Audio Capacitors
  • Dual Intel® GbE LAN
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • Dual HDMI , DVI-D, DVI-I
  • GIGABYTE UEFI BIOS Technology
  • Support Intel vPro Techonogy
  • Support Intel® Small Business Advantage

GIGABYTE Ultra Durable ™ Motherboards

GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.

Specifications

General Information

Manufacturer:
GIGABYTE Technology, Inc
Manufacturer Website Address:
http://www.gigabyte.com.au
Brand Name:
Gigabyte
Product Family:
Ultra Durable
Product Series:
100
Product Model:
GA-Q170M-MK
Product Name:
Ultra Durable 100 GA-Q170M-MK (rev. 1.0) Desktop Motherboard
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
Q170
Total Processor Supported:
1
Processor Socket:
Socket H4 LGA-1151
Processor Supported:
  • Core i7
  • Core i3
  • Core i5
  • Pentium
  • Celeron
Multi GPU Supported:
  • CrossFire

Memory

Number of Memory Slots:
4
Memory Form Factor:
  • UDIMM
  • DIMM
Maximum Memory:
64 GB
Memory Technology:
DDR4 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 10
  • 5
  • 1
  • 0

Video

Onboard Video:
CPU Dependent Video
Graphics Controller Manufacturer:
  • Intel

Audio

Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
4
Total Number of PCI Express Slots:
4
Number of PCI Express x1 Slots:
2
Number of PCI Express x16 Slots:
2

Interfaces/Ports

Total Number of USB Ports:
6
Number of USB 3.0 Ports:
4
HDMI:
Yes
DVI:
Yes

Onboard Interfaces

Number of SATA Interfaces:
6
Number of M.2 Interfaces:
1
Number of SATA Express Interfaces:
3
Total Number of Onboard USB Ports:
4
Number of Onboard USB 3.0 Ports:
2
Onboard S/PDIF Header:
Yes

Physical Characteristics

Form Factor:
Micro ATX
Width:
244 mm
Depth:
244 mm
