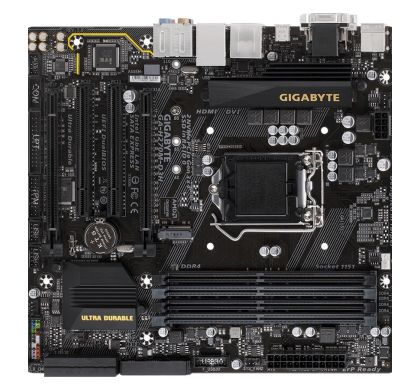

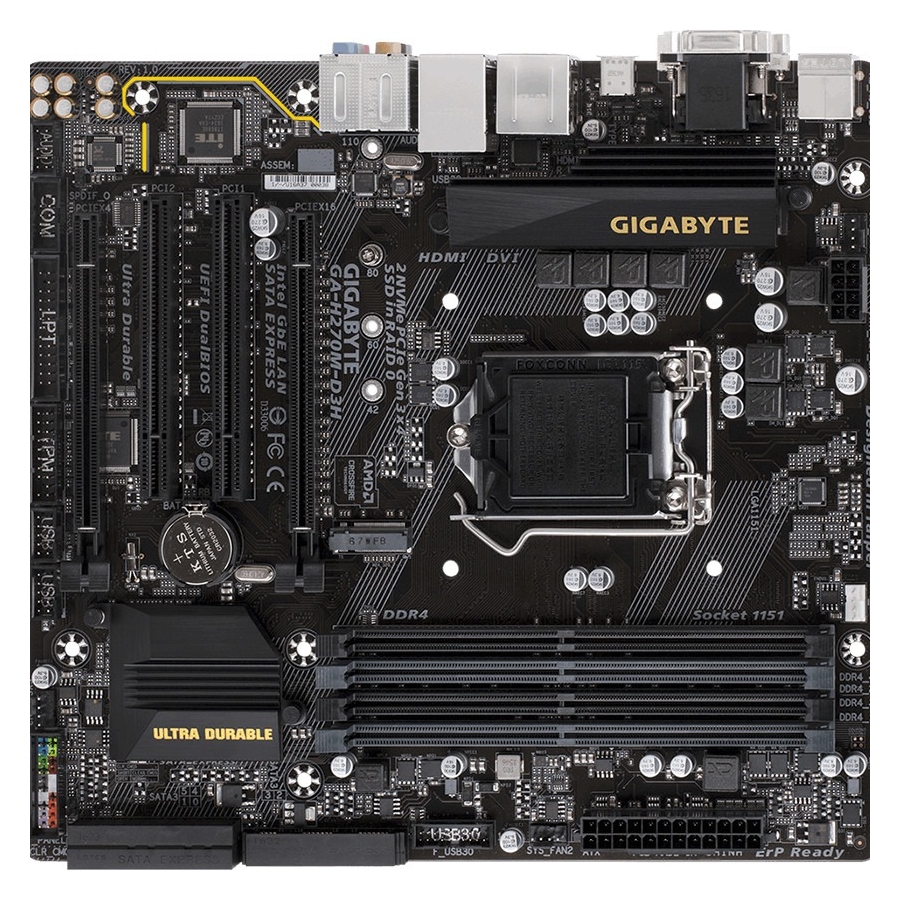

GIGABYTE Ultra Durable GA-H270M-D3H Desktop Motherboard - Intel H270 Chipset - Socket H4 LGA-1151

GIGABYTE Ultra Durable GA-H270M-D3H Desktop Motherboard - Intel H270 Chipset - Socket H4 LGA-1151
GA-H270M-D3H
Available
Please contact us for pricing

Description

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

All Hybrid Fan Pin Headers

  • Hybrid Fan Headers detect whether the cooling device uses PWM or Voltage mode and automatically switches settings accordingly.
  • Supports up to 2 amps with built-in overcurrent protection-a must for high-end high current fans.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans

Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve

Customize fan curves based on specific temperatures with the intuitive graphical UI.

Enhanced BIOS Interface

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change-all without having to load Windows.

Immersive VR Gaming Experience

>VR requires more performance than Full HD graphics for a steady 90FPS or greater.
>Only Gaming PCs can provide the best VR experience.

Intel® GbE LAN with cFosSpeed Internet Accelerator Software

Intel® Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

2-Way CrossFire™ Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Connecting the Future - USB Type-C™:
The World's Next Universal Connector

The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 Gen1 support for 5 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.

GIGABYTE Patented Double Locking Bracket

Anti-Sulfur Resistor Design

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Specifications

General Information

Manufacturer:
GIGABYTE Technology, Inc
Manufacturer Website Address:
http://www.gigabyte.com.au
Brand Name:
Gigabyte
Product Family:
Ultra Durable
Product Model:
GA-H270M-D3H
Product Name:
Ultra Durable GA-H270M-D3H (rev. 1.0) Desktop Motherboard
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
H270
Total Processor Supported:
1
Processor Socket:
Socket H4 LGA-1151
Processor Supported:
  • Core i7
  • Core i3
  • Core i5
  • Celeron
  • Pentium
Multi GPU Supported:
  • CrossFireX

Memory

Number of Memory Slots:
4
Memory Form Factor:
  • UDIMM
  • DIMM
Maximum Memory:
64 GB
Memory Technology:
DDR4 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 10
  • 5
  • 1
  • 0

Video

Onboard Video:
CPU Dependent Video
Graphics Controller Manufacturer:
  • Intel
Graphics Controller Model:
  • HD Graphics

Audio

Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
4
Total Number of PCI Express Slots:
2
Number of PCI Express x1 Slots:
1
Number of PCI Express x16 Slots:
1

Interfaces/Ports

Total Number of USB Ports:
7
Number of USB 3.1 Ports:
5
VGA:
Yes
HDMI:
Yes
DVI:
Yes

Onboard Interfaces

Number of SATA Interfaces:
6
Number of M.2 Interfaces:
1
Number of SATA Express Interfaces:
2
Total Number of Onboard USB Ports:
6
Number of Onboard USB 3.1 Ports:
2
Onboard S/PDIF Header:
Yes

Physical Characteristics

Form Factor:
Micro ATX
Width:
244 mm
Depth:
225 mm
