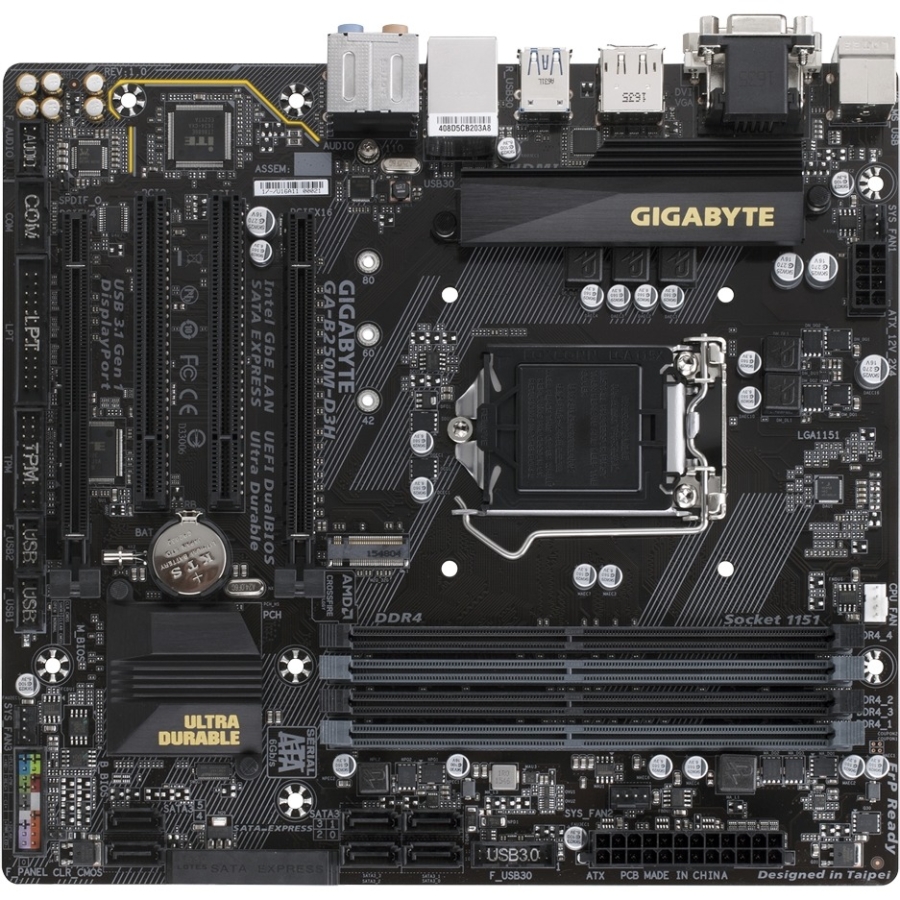

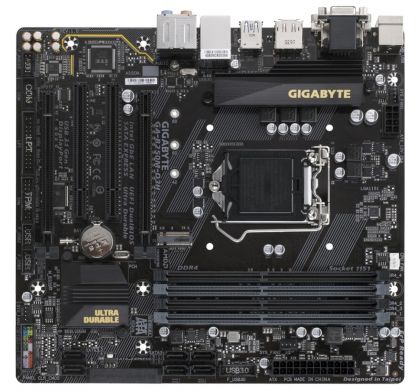

GIGABYTE Ultra Durable GA-B250M-D3H Desktop Motherboard - Intel B250 Chipset - Socket H4 LGA-1151

GIGABYTE Ultra Durable GA-B250M-D3H Desktop Motherboard - Intel B250 Chipset - Socket H4 LGA-1151
GA-B250M-D3H
Available
Please contact us for pricing

Description

  • Supports 7th/ 6th Generation Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 2-Way CrossFire™ Multi-Graphics Support
  • SATA Express Connector for up to 16Gb/s Data Transfer
  • Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
  • Intel® Optane™ Memory Ready
  • Triple display interfaces including High Definition Multimedia Interface
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
  • GIGABYTE UEFI DualBIOS™
  • APP Center Including Cloud Station™ Utility

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

All Hybrid Fan Pin Headers

  • All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
  • Supports up to 2 amps with built-in overcurrent protection-a must for high-end high current fans.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans

Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve

Customize fan curves based on specific temperatures with the intuitive graphical UI.

Enhanced BIOS Interface

The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change-all without having to load Windows.

Immersive VR
Gaming Experience
> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.

Intel® GbE LAN with cFosSpeed Internet Accelerator Software

Intel® Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Fast Onboard Storage with NVMe
PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)

GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

2-Way CrossFire™ Multi Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Specifications

General Information

Manufacturer:
GIGABYTE Technology, Inc
Manufacturer Website Address:
http://www.gigabyte.com.au
Brand Name:
Gigabyte
Product Family:
Ultra Durable
Product Model:
GA-B250M-D3H
Product Name:
Ultra Durable GA-B250M-D3H (rev. 1.0) Desktop Motherboard
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
B250
Total Processor Supported:
1
Processor Socket:
Socket H4 LGA-1151
Processor Supported:
  • Core i7
  • Core i3
  • Core i5
  • Celeron
  • Pentium
Multi GPU Supported:
  • CrossFireX

Memory

Number of Memory Slots:
4
Memory Form Factor:
  • DIMM
  • UDIMM
Maximum Memory:
64 GB
Memory Technology:
DDR4 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/600

Video

Onboard Video:
CPU Dependent Video
Graphics Controller Manufacturer:
  • Intel
Graphics Controller Model:
  • HD Graphics

Audio

Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
4
Total Number of PCI Express Slots:
2
Number of PCI Express x16 Slots:
2

Interfaces/Ports

Total Number of USB Ports:
6
Number of USB 3.1 Ports:
4
VGA:
Yes
HDMI:
Yes
DisplayPort:
Yes
DVI:
Yes

Onboard Interfaces

Number of SATA Interfaces:
6
Number of M.2 Interfaces:
1
Number of SATA Express Interfaces:
1
Total Number of Onboard USB Ports:
6
Number of Onboard USB 3.1 Ports:
2
Onboard S/PDIF Header:
Yes

Physical Characteristics

Form Factor:
Micro ATX
Width:
244 mm
Depth:
225 mm

Miscellaneous

Green Compliant:
Yes
Country of Origin:
  • China
