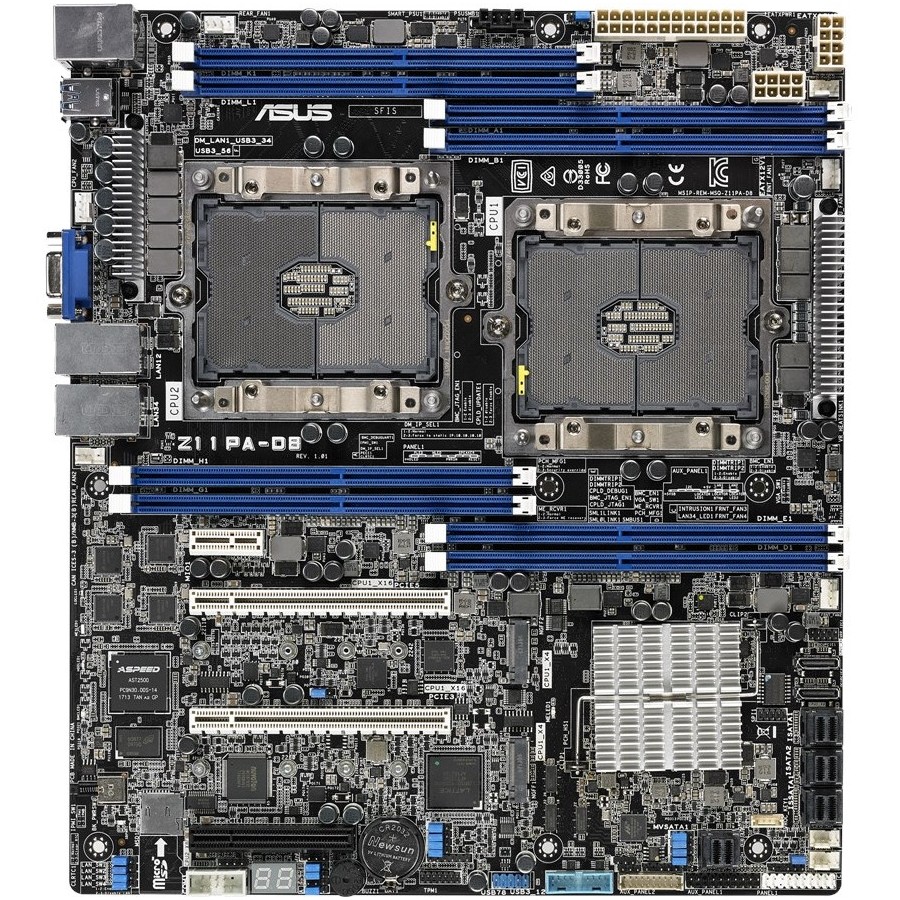

ASUS Z11PA-D8 Server Motherboard - Intel Chipset - Socket P LGA-3647

Z11PA-D8
Please Call
Please contact us for pricing

Description

Intel® Xeon® server motherboard with 8 DIMM slots

  • Powerful performance with Intel® Xeon® Scalable processor and ECC memory
  • Increased performance or data redundancy with dual M.2 SSDs in RAID mode
  • High-speed storage interface support with dual OCuLink for NVMe
  • Connect up to 16 SATA 6Gb/s storage devices
  • Comprehensive IT infrastructure management software
  • More flexible storage capability with SD card support
  • Quick initialization guidance for faster BIOS tracking enhancement

Powerful performance with Intel® Xeon® Scalable processor and ECC memory

Z11PA-D8 is built on the Intel® Xeon® Scalable Platform to deliver higher per-core performance and four memory channels that provide 50% more memory bandwidth and capacity for 1.65X faster average system-level performance compared to previous-generation processors. The Intel® Xeon® Scalable platform also delivers better virtualization performance, enabling 4.2X more virtual machines (VMs) per system.

With 8 DIMM slots that support up to 2TB of fast DDR4-2666, 2400MHz 3DS ECC RDIMMs or LRDIMMs, Z11PA-D8 delivers industry-leading memory capability for your business.

Increased performance or data redundancy with dual M.2 SSDs in RAID mode

Dual M.2 SATA SSDs enable top performance or data redundancy in RAID mode
In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy. Z11PA-D8 comes with an optional Virtual RAID on CPU (VROC) enabling connector to support NVMe SSDs with Intel® Volume Management Device technology. The NVMe SSDs are directly connected to the CPU, enabling latency reduction and increased bandwidth, while reducing power consumption by 15W compared to traditional hardware RAID cards.

High-speed storage interface support with dual OCuLink for NVMe

Dual OCuLink for efficient connections to NVMe devices
Z11PA-D8 features dual onboard OCuLink to provide efficient port-to-port connection with most OCuLink-supported NVMe devices, eliminating the need for PCIe transaction cards.

Connect up to 16 SATA 6Gb/s storage devices

Z11PA-D8 comes with four mini-SAS HD connectors that support up to 16 SATA ports each for high-speed 6Gb/s connectivity with external devices and cleaner cable routing.

Comprehensive IT infrastructure management software

Z11PA-D8 features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses:

ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline - through a user-friendly, web-based graphical interface that works with all major browsers.

Specifications

General Information

Manufacturer:
ASUS Computer International
Manufacturer Website Address:
http://www.asus.com/au
Brand Name:
Asus
Product Model:
Z11PA-D8
Product Name:
Z11PA-D8 Server Motherboard
Product Type:
Server Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Total Processor Supported:
2
Processor Socket:
Socket P LGA-3647
Processor Supported:
  • Xeon

Memory

Number of Memory Slots:
8
Memory Form Factor:
  • LRDIMM
  • RDIMM
  • DIMM
Maximum Memory:
2 TB
Memory Technology:
DDR4 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 10
  • 5
  • 1
  • 0

Video

Onboard Video:
On-board Video Chipset
Graphics Controller Manufacturer:
  • ASPEED
Graphics Controller Model:
  • AST2500

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
3
Total Number of PCI Express Slots:
3
Number of PCI Express x8 Slots:
1
Number of PCI Express x16 Slots:
2

Interfaces/Ports

Total Number of USB Ports:
4
Number of USB 3.0 Ports:
4
VGA:
Yes

Onboard Interfaces

Number of Mini-SAS Interfaces:
4
Number of M.2 Interfaces:
2
Total Number of Onboard USB Ports:
4
Number of Onboard USB 3.0 Ports:
2

Physical Characteristics

Form Factor:
SSI CEB
Width:
304.8 mm
Depth:
266.7 mm
Weight (Approximate):
1.24 kg

Miscellaneous

Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • WEEE
Country of Origin:
  • China
