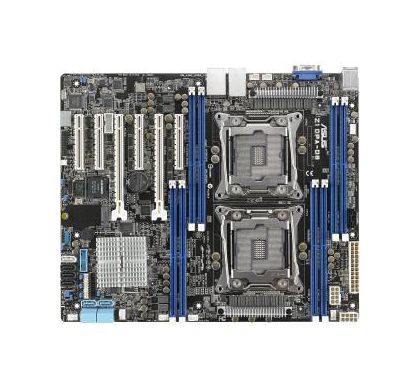

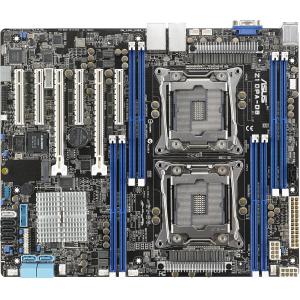

ASUS Z10PA-D8 Server Motherboard - Intel C612 Chipset - Socket R3 (LGA2011-3)

ASUS Z10PA-D8 Server Motherboard - Intel C612 Chipset - Socket R3 (LGA2011-3)
Z10PA-D8

This product has been discontinued by the manufacturer

Please visit

ASUS Motherboards

for alternative options.

Description

Most Compact Dual LGA2011-3 Serverboard

The ASUS Z10PA-D8 serverboard integrates versatile features into a 12"x10" size allowing this board to fit into many ATX cases. Through innovative and top-notch engineering design, this board features server performance with compact design, enhanced storage expandability, premium components for premium efficiency. With the support of dual CPUs and a form factor fitting to PC ATX case, server rack and tower designs, Z10PA-D8 is ideal for small and medium business (SMB) general purpose host server, web server, mail server, file server, storage server, and small- or home-office applications.

Specifications

General Information

Manufacturer:
ASUS Computer International
Manufacturer Website Address:
http://www.asus.com/au
Brand Name:
Asus
Product Model:
Z10PA-D8
Product Name:
Z10PA-D8 Server Motherboard
Product Type:
Server Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
C612
Total Processor Supported:
2
Processor Socket:
Socket R3 (LGA2011-3)
Processor Supported:
  • Xeon

Memory

Number of Memory Slots:
8
Memory Form Factor:
  • DIMM
  • UDIMM
  • LRDIMM
Maximum Memory:
512 GB

I/O Controller

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0
  • 1
  • 5
  • 10

Video

Onboard Video:
On-board Video Chipset
Graphics Controller Manufacturer:
  • ASPEED
Graphics Controller Model:
  • AST2400

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
6
Total Number of PCI Express Slots:
6
Number of PCI Express x8 Slots:
4
Number of PCI Express x16 Slots:
2

Interfaces/Ports

Total Number of USB Ports:
4
Number of USB 3.0 Ports:
2
VGA:
Yes

Onboard Interfaces

Number of SATA Interfaces:
10
Number of M.2 Interfaces:
1
Total Number of Onboard USB Ports:
4
Number of Onboard USB 3.0 Ports:
2

Physical Characteristics

Form Factor:
ATX
Width:
304.8 mm
Depth:
254 mm

Miscellaneous

Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
Country of Origin:
  • Taiwan
