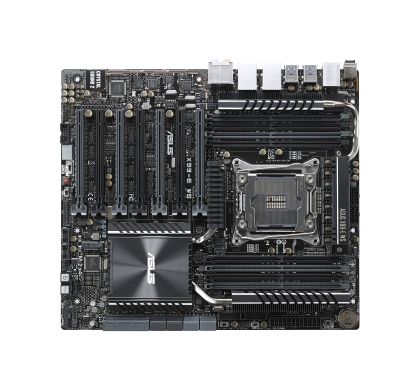

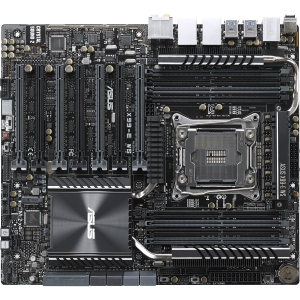

ASUS X99-E WS Workstation Motherboard - Intel X99 Chipset - Socket LGA 2011-v3

ASUS X99-E WS Workstation Motherboard - Intel X99 Chipset - Socket LGA 2011-v3
X99-E WS
Available
Please contact us for pricing

Description

Intel® Core™ i7 Processor LGA2011-v3 Ready

This motherboard supports Intel® Core™ i7 processors in the LGA2011-v3 package, with memory and PCI Express controllers integrated to support 4-channel (8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.

Specifications

General Information

Manufacturer:
ASUS Computer International
Manufacturer Website Address:
http://www.asus.com/au
Brand Name:
Asus
Product Model:
X99-E WS
Product Name:
X99-E WS Workstation Motherboard
Product Type:
Workstation Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
X99
Total Processor Supported:
1
Processor Technology:
  • Turbo Boost Technology 2.0
Processor Socket:
Socket LGA 2011-v3
Processor Supported:
  • Core i7
  • Xeon
64-bit Processing:
Yes
Multi GPU Supported:
  • CrossFireX
  • SLI

Memory

Number of Memory Slots:
8
Memory Form Factor:
DIMM
Maximum Memory:
64 GB
Memory Standard:
  • DDR4-3200/PC4-25600 (O.C.)
  • DDR4-3000/PC4-24000 (O.C.)
  • DDR4-2800/PC4-22400 (O.C.)
  • DDR4-2666/PC4-21300 (O.C.)
  • DDR4-2400/PC4-19200 (O.C.)
  • DDR4-2133/PC4-17000
Memory Technology:
DDR4 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0
  • 1
  • 5
  • 10

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
7
PCI Express Standard:
  • PCI Express 3.0
  • PCI Express 2.0
Total Number of PCI Express Slots:
7
Number of PCI Express x16 Slots:
7

Interfaces/Ports

eSATA:
Yes
Number of eSATA Ports:
2
Total Number of USB Ports:
10
Number of USB 3.0 Ports:
10
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
S/PDIF:
Yes
Number of S/PDIF Out Ports:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2

Onboard Interfaces

Number of SATA Interfaces:
8
Number of M.2 Interfaces:
1
Number of SATA Express Interfaces:
2
Total Number of Onboard USB Ports:
8
Number of Onboard USB 2.0 Ports:
4
Number of Onboard USB 3.0 Ports:
4
Onboard S/PDIF Header:
Yes
Onboard Thunderbolt Header:
Yes

Controls/Indicators

Buttons & Keys:
  • Dr. Power Switch
  • Power
  • Reset
  • CMOS Clear
  • MemOK
  • TPU
  • EPU

Power Description

Power Supply Supported:
EATX12V

Physical Characteristics

Form Factor:
SSI CEB
Width:
304.8 mm
Depth:
266.7 mm
