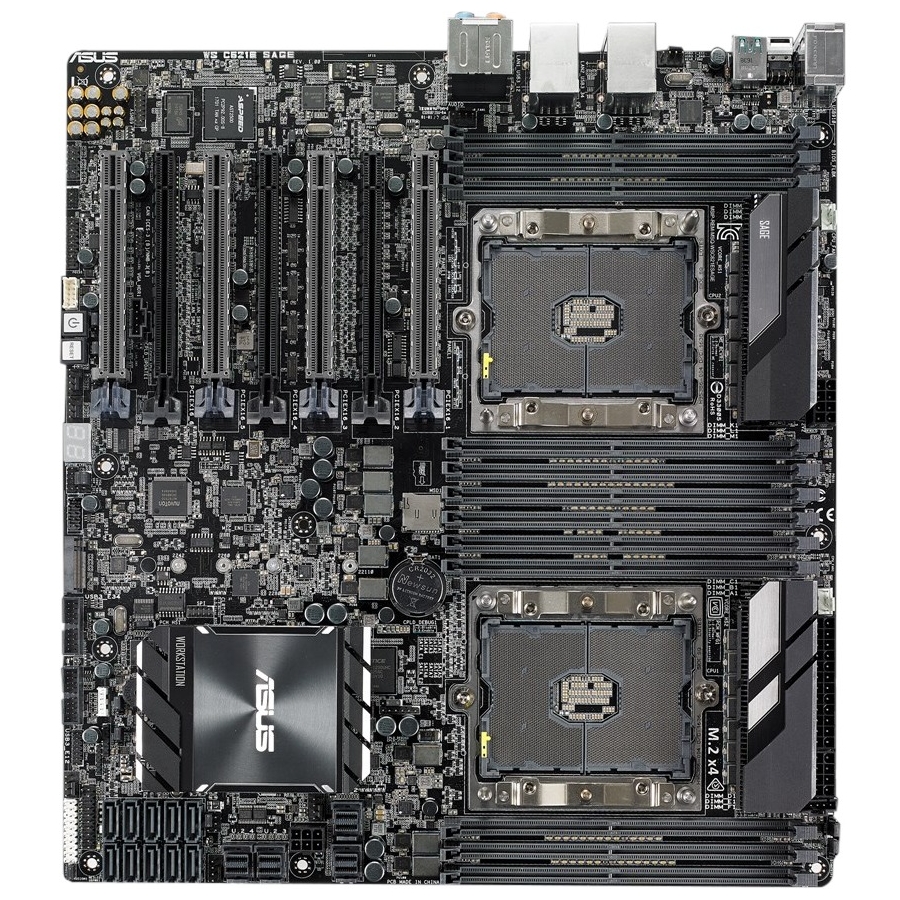

ASUS WS C621E SAGE Workstation Motherboard - Intel Chipset - Socket P LGA-3647

ASUS WS C621E SAGE Workstation Motherboard - Intel Chipset - Socket P LGA-3647
WS C621E SAGE
Please Call
Please contact us for pricing

Description

Intel® C621 motherboard with quad-strength graphics support and 12 DDR4 memory slots

  • Up to 4-Way NVIDIA® SLI® and AMD® Crossfire X™ on demand
  • Two-way Xeon® CPU OC tuning for extreme performance
  • Superb scalability and connectivity with onboard U.2, M.2, and USB 3.1 Type-C and Type-A
  • Built with premium components for excellent power efficiency
  • Easy Management and maintenance with ASUS Control Center (ACC) management software and USB BIOS Flashback

Extreme Power and Performance

Up to 4-way multiple-graphic cards

The Intel® C621 chipset-based dual socket workstation motherboard features on-demand NVIDIA® GeForce® SLI®, NVIDIA Quadro® SLI®, and AMD® CrossFireX™ technology.

ASUS WS C621E SAGE accommodates up to four dual-width graphic cards with a four true PCIe Gen3 x16 link to unleash maximum graphic performance. With support for up to 4-way NVIDIA® GeForce® SLI®, AMD® CrossFireX™, and 2-Way NVIDIA Quadro® SLI®, WS C621E SAGE is an excellent choice for content creators, mechanical or architectural engineers, and anyone with processing-intensive workloads.

Extraordinary performance with dual Intel® Xeon® CPU overclocking

Dual Intel® Xeon® CPU overclocking, pushes the power processing power beyond the extreme

ASUS WS C621E SAGE breaks performance barriers, giving you the capability to overclock dual Xeon® CPUs. With its unique BIOS mechanism dedicated to boosting CPU performance, WS C621E SAGE can deliver incredible system speed.

Expandable and Scalable

Supporting up to 12 DDR4 Error-correcting code memory (ECC Memory)

Keeps your system running at a brisk pace, even when running multiple hardware-intensive programs!
ASUS WS C621E SAGE supports up to 12 DDR4 error-correcting code (ECC) memory to ensure fast and responsive system performance, even when running multiple RAM-intensive applications - such as video, audio and image editing applications - simultaneously.

Lightning-fast storage speed with NVMe PCIe SSD RAID 0 support

With support for multiple NVMe PCIe storage devices configured as a RAID 0 array, ASUS WS C621E SAGEA lets you enjoy lightning-fast data transfers that are far beyond those provided by single drives.

Super-fast transfers at up to 32Gbps with onboard four U.2 and M.2

ASUS WS C621E SAGE is built with onboard M.2 and U.2 connectors to fit both 2.5-inch NVMe and M.2 SSDs. By using the maximum PCIe Gen3.0 x4 bandwidth of 32Gbps, WS C621E SAGE enables data transfer speeds that are up to 5.3X faster than traditional storage devices.


10Gb/s USB 3.1 Gen2 onboard

With backward-compatible USB 3.1 Gen2 Type-A and reversible USB 3.1 Gen2 Type-C ports, you'll experience ultimate connection flexibility and data-transfer speeds of up to 10Gb/s - twice as fast as USB 3.0 or USB 3.1 Gen1.

Specifications

General Information

Manufacturer:
ASUS Computer International
Manufacturer Website Address:
http://www.asus.com/au
Brand Name:
Asus
Product Model:
WS C621E SAGE
Product Name:
WS C621E SAGE Workstation Motherboard
Product Type:
Workstation Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Total Processor Supported:
2
Processor Socket:
Socket P LGA-3647
Processor Supported:
  • Xeon

Memory

Number of Memory Slots:
12
Memory Form Factor:
  • DIMM
  • RDIMM
  • LRDIMM
Maximum Memory:
768 GB
Memory Technology:
DDR4 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0
  • 5
  • 10

Video

Onboard Video:
No

Audio

Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
7
Total Number of PCI Express Slots:
7
Number of PCI Express x16 Slots:
7

Interfaces/Ports

Total Number of USB Ports:
10
Number of USB 3.1 Ports:
6
S/PDIF:
Yes

Onboard Interfaces

Number of SATA Interfaces:
10
Number of M.2 Interfaces:
1
Total Number of Onboard USB Ports:
6
Number of Onboard USB 3.1 Ports:
4

Physical Characteristics

Form Factor:
SSI EEB
Width:
304.8 mm
Depth:
330.2 mm

Miscellaneous

Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • WEEE
  • RoHS
