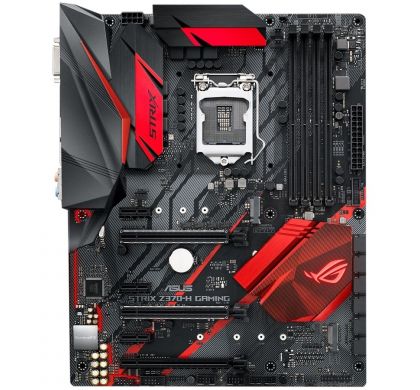

ASUS ROG Strix Z370-H GAMING Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151

ASUS ROG Strix Z370-H GAMING Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151
ROG STRIX Z370-H GAMING
Available
Please contact us for pricing

Description

Intel Z370 ATX gaming motherboard with DDR4 4000MHz support, DP HDMI, dual M.2, SATA 6Gbps and USB 3.1

  • LGA1151 socket for 8th-gen Intel® Core™ desktop processors
  • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
  • Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.
  • Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
  • Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst.
  • Gamer's Guardian: ASUS SafeSlot and premium components for maximum endurance.

With aesthetics inspired by the sharpest blades and premium colorways to match any mood, the all-new ROG Strix Z370 motherboards are ready to do battle - and infused with all the essential ROG engineering needed to push performance as far as you dare. Ready for the latest 8th Generation Intel® Core™ processors, ROG Strix Z370-H Gaming is loaded with overclocking and cooling innovations to keep your gaming rig's thermals in check as you turn up the clock. Factor in the atmospheric red glow from the built-in LEDs and superior SupremeFX audio and you'll know that ROG Strix Z370-H Gaming looks great and sounds amazing - and outperforms every expectation to dominate your game!

PERFORMANCE

ROG Strix Z370-H Gaming rocks core ROG features to help you max out all aspects of system performance, handing you the tools needed to realize your system's true potential.

5-WAY OPTIMIZATION

ONE-CLICK OVERCLOCK AND COOLING, DONE!

One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.

With ROG Strix Z370-H Gaming you have comprehensive control over fans and all-in-one (AIO) coolers, via either Fan Xpert 4 Core or our media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum - keeping your system whisper-quiet when performing light tasks.

COOLER BY DESIGN

ROG Strix Z370-H Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 Core or the UEFI BIOS:

  • Multiple temperature sources

  • 4-pin PWM/DC fan

  • AIO Pump Fan

Each header can be set to monitor and react to three user-configurable thermal sensors, for workload based cooling - all easily managed by Fan Xpert 4 or the media-acclaimed ASUS UEFI.

DDR4 OVERCLOCKING STRENGTH IN NUMBERS

ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and our T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing memory speeds of DDR4-4000 and beyond with all slots populated.

Improved Stability and Overclocking

With all slots populated

DDR4 - 4000 MHz

CPU : Intel LGA 1151 i7-8700K | Motherboard : ROG STRIX Z370-H GAMING|
DRAM : CORSAIR CMK32GX4M4B4000C19R Ver. 4.31 | Power : Corsair AX1500i |
Water-cooling : Corsair H115i | OS: Windows 10

Specifications

General Information

Manufacturer:
ASUS Computer International
Manufacturer Website Address:
http://www.asus.com/au
Brand Name:
ROG
Product Family:
Strix
Product Model:
Z370-H GAMING
Product Name:
Strix Z370-H GAMING Desktop Motherboard
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Total Processor Supported:
1
Processor Socket:
Socket H4 LGA-1151
Processor Supported:
  • Core i7
  • Core i5
  • Core i3

Memory

Number of Memory Slots:
4
Memory Form Factor:
  • DIMM
  • UDIMM
Maximum Memory:
64 GB
Memory Technology:
DDR4 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 10
  • 5
  • 1
  • 0

Video

Onboard Video:
CPU Dependent Video

Audio

Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
6
Total Number of PCI Express Slots:
6
Number of PCI Express x1 Slots:
3
Number of PCI Express x16 Slots:
3

Interfaces/Ports

Total Number of USB Ports:
8
Number of USB 3.1 Ports:
6
S/PDIF:
Yes
HDMI:
Yes
DVI:
Yes

Onboard Interfaces

Number of SATA Interfaces:
6
Number of M.2 Interfaces:
2
Total Number of Onboard USB Ports:
8
Number of Onboard USB 3.1 Ports:
4

Physical Characteristics

Form Factor:
ATX
Width:
304.8 mm
Depth:
243.8 mm

Miscellaneous

Package Contents:
  • Strix Z370-H GAMING Desktop Motherboard
  • User's manual
  • I/O Shield
  • 2 x SATA 6Gb/s Cable(s)
  • 1 x M.2 Screw Package
  • 1 x CPU Installation Tool
  • 1 x Supporting DVD
  • 1 x MOS Cooling Kit (fan bracket and 40mm x 40mm fan)
  • 1 x SLI HB BRIDGE(2-WAY-M)
  • 1 x ROG Strix Stickers
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
3 Year
