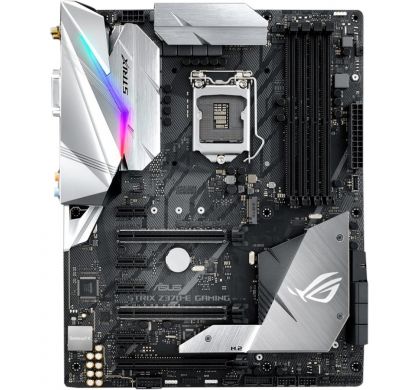

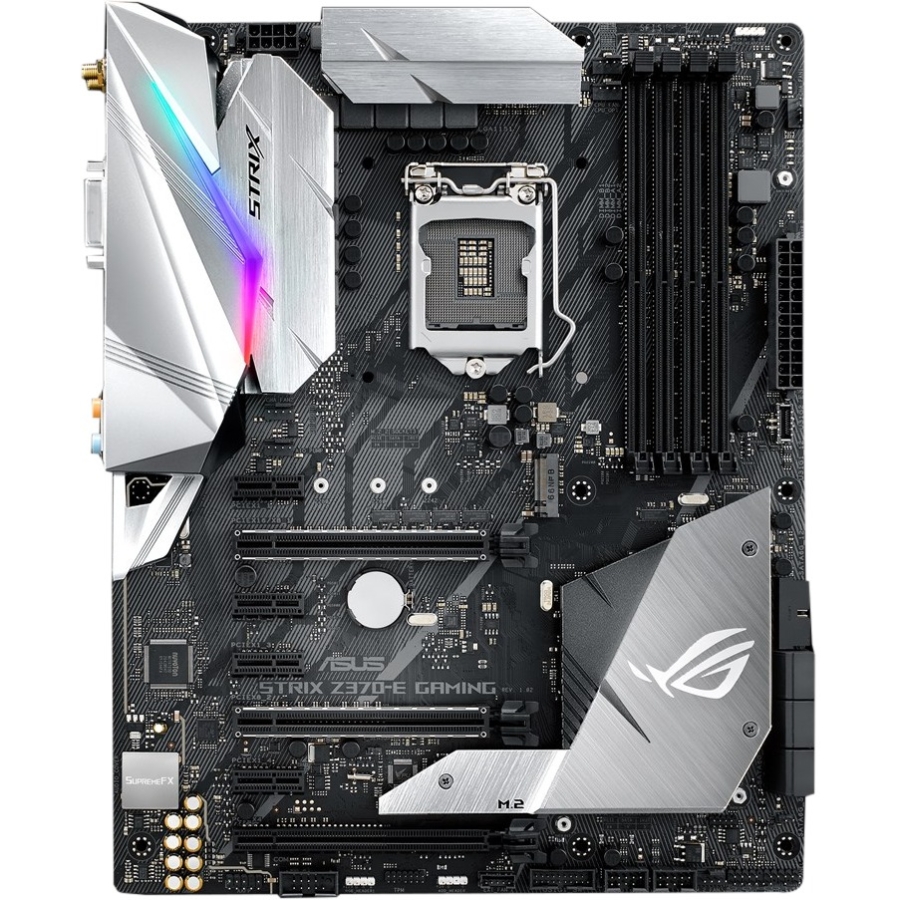

ROG STRIX Z370-E GAMING

This product has been discontinued by the manufacturer

Please visit

ASUS Motherboards

for alternative options.

Description

ASUS ROG STRIX Z370-E GAMING LGA1151 DDR4 DP HDMI DVI M.2 Z370 ATX Motherboard with onboard 802.11ac WiFi and USB 3.1 for 8th Generation Intel® Core™ Processors

  • Designed exclusively for 8th generation Intel® Core™ processors to maximize connectivity and speed with Dual M.2, 802.11ac WiFi, Gigabit LAN, front panel USB 3.1 and Intel® Optane™ Memory compatibility
  • 5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
  • Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, two additional RGB headers, addressable RGB header and 3D-printing mounts
  • Two Patent-pending SafeSlots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
  • Industry-leading 8-channel HD audio with dual headphone amplifiers and ROG exclusive SupremeFX S1220A CODEC driven by Japanese capacitors

With aesthetics inspired by the sharpest blades and premium colorways to match any mood, the all-new ROG Strix Z370 motherboards are ready to do battle - and infused with all the essential ROG engineering needed to push performance as far as you dare. Ready for the latest 8th Generation Intel® Core™ processors, ROG Strix Z370-E Gaming is loaded with overclocking and cooling innovations to keep your gaming rig's thermals in check as you turn up the clock. Factor in custom Aura RGB illumination and superior SupremeFX audio and you'll know that ROG Strix Z370-E Gaming looks great and sounds amazing - and outperforms every expectation to dominate your game!

CUSTOMIZATION

ROG Strix Z370-E Gaming looks as good as it performs, with built-in RGB illumination and support for 3D-printed parts, it's perfect for the style-conscious part of your personality!

OUTSHINE THE COMPETITION

A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

RGB HEADERS RGB LIGHTING PERFECTED

ROG Strix Z370-E Gaming features a pair of onboard 5050 RGB headers and an addressable RGB header that can be connected to compatible lighting strips, fans, coolers, and PC cases, creating a new world of illumination possibilities.

AURA LIGHTING CONTROL

ASUS Aura has evolved and is friendlier than ever.

Aura now supports RGB color codes, for easier setup

You can also customize temperature thresholds to choose how CPU and GPU temps are expressed via RGB lighting

INFINITE LIGHTING POSSIBILITIES

ASUS Aura Sync RGB LED technology makes ROG Strix Z370-E Gaming the control hub for your illumination ambitions - so it's easy to synchronize incredible lighting effects between compatible components, including RGB LED strips, graphics cards, keyboards and even mice! Change all LEDs in unison or employ dynamic modes to flow the illumination effects smoothly across all synchronized devices.

3D PRINTING FRIENDLY

Dedicated 3D Mounts on the motherboard makes fitting 3D-printed parts easy. Using the same screws as M.2 drives and standard motherboard mounting holes, you can easily add nameplates, cable covers, or an M.2 fan holder.

Specifications

General Information

Manufacturer:
ASUS Computer International
Manufacturer Website Address:
http://www.asus.com/au
Brand Name:
ROG
Product Family:
Strix
Product Model:
Z370-E GAMING
Product Name:
Strix Z370-E GAMING Desktop Motherboard
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Total Processor Supported:
1
Processor Socket:
Socket H4 LGA-1151
Processor Supported:
  • Core i7
  • Core i5
  • Core i3

Memory

Number of Memory Slots:
4
Memory Form Factor:
  • UDIMM
  • DIMM
Maximum Memory:
64 GB
Memory Technology:
DDR4 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0
  • 1
  • 5
  • 10

Video

Onboard Video:
CPU Dependent Video

Audio

Audio Channels:
7.1

Network & Communication

Bluetooth:
Yes
Gigabit Ethernet:
Yes
Wi-Fi:
Yes

I/O Expansions

Number of Total Expansion Slots:
7
Total Number of PCI Express Slots:
7
Number of PCI Express x1 Slots:
4
Number of PCI Express x16 Slots:
3

Interfaces/Ports

Total Number of USB Ports:
6
Number of USB 3.1 Ports:
4
S/PDIF:
Yes
HDMI:
Yes
DisplayPort:
Yes
DVI:
Yes

Onboard Interfaces

Number of SATA Interfaces:
6
Number of M.2 Interfaces:
2
Total Number of Onboard USB Ports:
9
Number of Onboard USB 3.1 Ports:
5

Physical Characteristics

Form Factor:
ATX
Width:
304.8 mm
Depth:
243.8 mm

Miscellaneous

Package Contents:
  • Strix Z370-E GAMING Desktop Motherboard*
  • User's Manual
  • ASUS Q-Shield
  • 1 x ASUS Fan Holder
  • 4 x SATA 6Gb/s Cable(s)
  • 1 x M.2 Screw Package
  • 1 x CPU Installation Tool
  • 1 x Supporting DVD
  • 1 x ASUS 2T2R Dual Band Wi-Fi Moving Antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  • 1 x CABLE TIE BLACK
  • 1 x SLI HB BRIDGE(2-WAY-M)
  • 1 x ROG Strix Stickers
  • 1 x 10-in-1 ROG Cable Label
  • ROG Fan Label
  • 1 x ROG Door Hanger(s)
  • 1 x Extension Cable for RGB strips (80 cm)
  • 1 x Extension Cable for Addressable LED
  • 1 x Thermistor Cable(s)
  • 1 x 3D Printing Mount Package
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
3 Year
