ASUS ROG Strix B350-I GAMING Desktop Motherboard - AMD Chipset - Socket AM4

ASUS ROG Strix B350-I GAMING Desktop Motherboard - AMD Chipset - Socket AM4

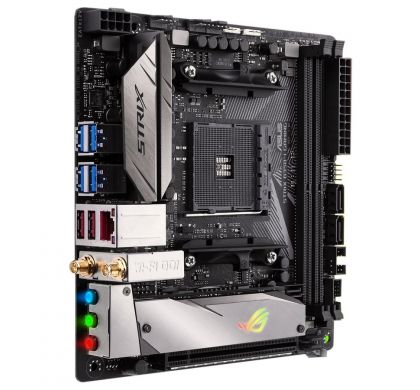

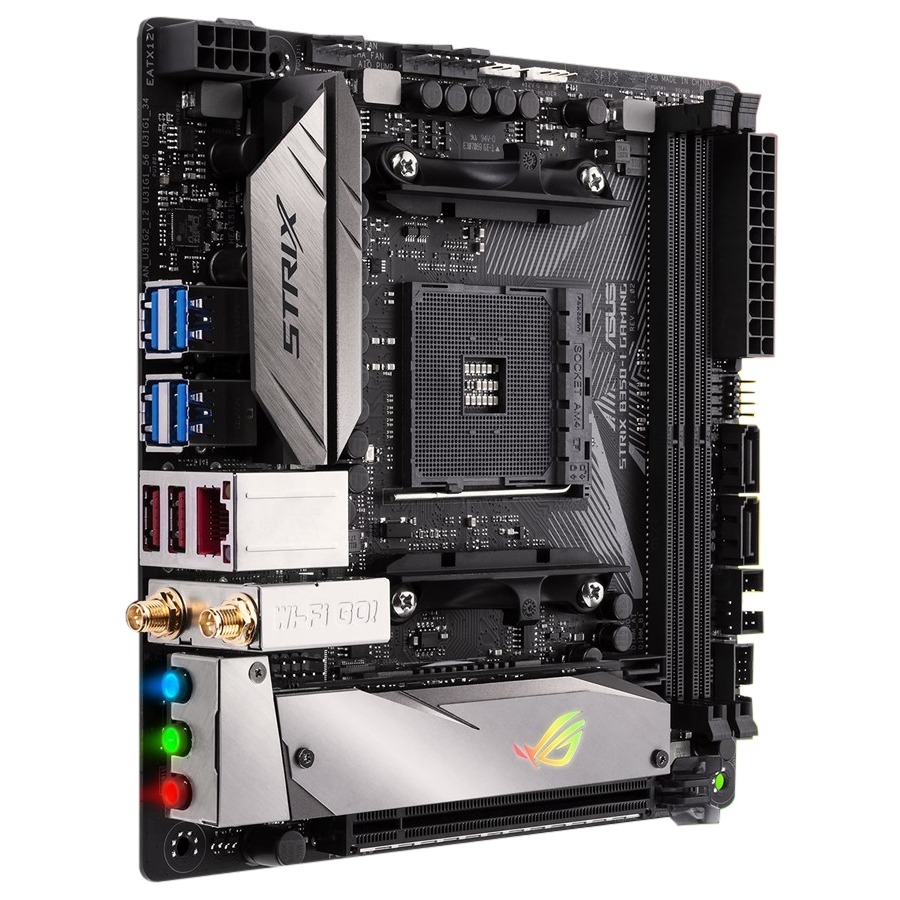

ROG STRIX B350-I GAMING
Available
Please contact us for pricing

Description

AMD AM4 B350 mini-ITX gaming motherboard with discrete M.2 Audio Combo Card design, dual M.2, USB 3.1 Gen2, 802.11ac Wi-Fi, DDR4 3600MHz and Aura Sync RGB Lighting

  • Supports AMD AM4-socket Ryzen™ processors, 7th Generation A-series APUs and Athlon™ ACPUs.
  • Gaming innovation: Discrete M.2 Audio Combo Card delivers clean audio and alleviates board space for more features.
  • SupremeFX audio: Renowned audio performance with intuitive Sonic Studio III and Sonic Radar III.
  • Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
  • Gaming networking: Intel Gigabit Ethernet, LANGuard, GameFirst and 2x2 802.11ac Wi-Fi with MU-MIMO support.
  • 5-Way Optimization: One-click system-wide overclocking and cooling.
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strip.
  • Gaming durability: ASUS SafeSlot and premium components for maximum durability.

ROG Strix B350-I Gaming draws on the proud legacy of our renowned Pro Gaming series by packing acclaimed ROG innovations into a mini-ITX motherboard that's as sleek, small and stylish as it is powerful - ready for you to create a gaming rig that rivals anything built around a bigger board! Experience the all-new ROG M.2 Audio Combo Card that both frees up space and delivers crystal-clear audio, push performance to the limits with 5-Way optimization, and up the aesthetic ante with Aura Sync illumination. Join the Republic with ROG Strix B350-I Gaming and dominate your game!

INNOVATION
& AUDIO

M.2 AUDIO COMBO

ROG Strix B350-I Gaming features an innovative riser card to help alleviate the constraints imposed by the mini-ITX form factor. The M.2 Audio Combo Card frees up prized real estate by raising M.2 drives and SupremeFX audio circuitry above the mainboard to minimize lateral signal interference. And it's neatly covered by a stylish heatsink that's capable of keeping the latest high-performance SDDs cool.

SUPREME

FX
SHIELDED AUDIO, SUPERIOR SOUND

ROG Strix SupremeFX audio has levelled up, delivering an exceptional 113dB signal-to-noise ratio on the line-in connection, and 120dB on the line-out for crystal-clear recording and playback. We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220A codec, plus Texas Instruments® RC4580 and OPA1688 op-amps for high gain with low distortion. It all adds up to audio that envelops you as never before.

Dual Op Amplifiers

One op amp adds voltage gain while the other works as a buffer. Together, they're capable of driving 32-600Ω headphones effortlessly.

LED-Illuminated Audio Jacks

Backlit audio jacks save you from fumbling around in the dark.

Premium Nichicon™ Audio Capacitors

High-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.

SONIC STUDIO III

Sonic Studio now supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

SONIC RADAR III SCAN AND DETECT TO DOMINATE

Sonic Radar III is all new - with an evolved audio engine that processes sounds more accurately than ever, ensuring you're always aware of what's going on around you. A new on-screen arrow has also been added to help you pinpoint the enemy position instantly!

Specifications

General Information

Manufacturer:
ASUS Computer International
Manufacturer Website Address:
http://www.asus.com/au
Brand Name:
ROG
Product Family:
Strix
Product Model:
B350-I GAMING
Product Name:
Strix B350-I GAMING Desktop Motherboard
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
AMD
Total Processor Supported:
1
Processor Socket:
Socket AM4
Processor Supported:
  • A-Series
  • Ryzen
  • Athlon

Memory

Number of Memory Slots:
2
Memory Form Factor:
  • UDIMM
  • DIMM
Maximum Memory:
32 GB
Memory Technology:
DDR4 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 10
  • 1
  • 0

Video

Onboard Video:
No

Audio

Audio Channels:
7.1

Network & Communication

Bluetooth:
Yes
Gigabit Ethernet:
Yes
Wi-Fi:
Yes

I/O Expansions

Number of Total Expansion Slots:
1
Total Number of PCI Express Slots:
1
Number of PCI Express x16 Slots:
1

Interfaces/Ports

Total Number of USB Ports:
6
Number of USB 3.1 Ports:
6

Onboard Interfaces

Number of SATA Interfaces:
4
Number of M.2 Interfaces:
2
Total Number of Onboard USB Ports:
4
Number of Onboard USB 3.1 Ports:
2

Physical Characteristics

Form Factor:
Mini ITX
Width:
170.2 mm
Depth:
170.2 mm

Miscellaneous

Package Contents:
  • Strix B350-I GAMING Desktop Motherboard
  • User's Manual
  • M.2 Mounting Kit
  • I/O Shield
  • 4 x SATA 6Gb/s Cable(s)
  • 2 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x ASUS 2T2R Dual Band Wi-Fi Moving Antennas (Wi-Fi 802.11a/b/g/n/ac Compliant)
  • 1 x ROG Strix Stickers
  • 1 x Cable ties Pack(s)
  • 1 x Extension Cable for Addressable LED
  • 1 x Panel Cable
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
3 Year
