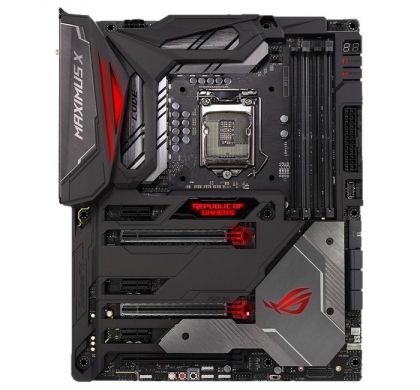

ASUS ROG MAXIMUS X CODE Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151

ASUS ROG MAXIMUS X CODE Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151
ROG MAXIMUS X CODE
Available
Please contact us for pricing

Description

Intel Z370 ATX gaming motherboard with Aura Sync RGB LEDs, 802.11ac Wi-Fi, DDR4 4133MHz, dual M.2 and USB 3.1 Gen 2

  • LGA1151 socket for 8th Gen Intel® Core™ desktop processors.
  • Leading personalization: ASUS-exclusive Aura Sync RGB lighting, including headers for both standard and addressable RGB strips.
  • Onboard M.2 Heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.
  • Gaming Audio: SupremeFX and Sonic Studio III - High fidelity audio that draws you deeper into the action.
  • All the connectivity you need: Intel Gigabit Ethernet, LANGuard, 2x2 802.11ac Wi-Fi, Dual M.2, USB 3.1 Gen 2 Type-A and Type-C™ connectors.
  • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
  • Gaming durability: ROG Armor, pre-mounted I/O shield and premium components throughout.

Drawing from a heritage that spans more than a decade, the latest incarnation of the Maximus series augments Intel's Z370 chipset with all the enhancements that enthusiasts crave. Each model sports a unique blend of features to cater to a distinct audience, yet the core ROG DNA ripples through the entire lineup. From overclocking and cooling options to satiate die-hard fanatics, to clean, refined aesthetics that are tastefully accented by RGB lighting, Maximus X-series motherboards bring the octane to your build.

CUSTOMIZATION

AURA SYNC

ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

RGB LIGHTING PERFECTED

Maximus X Code features a pair of onboard 5050 RGB headers and a pair of addressable headers that can be connected to compatible lighting strips, fans, coolers, and PC cases, creating a new world of illumination possibilities.

AURA LIGHTING CONTROL

ASUS Aura has evolved and is friendlier than ever.

Aura now supports RGB color codes, for easier setup

You can also customize temperature thresholds to choose how CPU and GPU temps are expressed via RGB lighting

INFINITE LIGHTING POSSIBILITIES

ASUS Aura SDK allows developers to take full advantage of the vast eco-system of Aura Sync-capable PC gear. From in-system illumination to peripherals and beyond, the SDK provides an evolving toolkit of options to enhance games and software with RGB lighting. Game effects, alerts, and audio can all be portrayed via Aura-compatible hardware, creating subtle or dazzling visual cues to augment the action. There's also scope to map system parameters such as temperatures to lighting, giving enthusiasts new ways to monitor vital information.

COOLING

M.2 HEATSINK

ROG Maximus X Code is equipped with a stylish, angular M.2 heatsink that keeps your SSD cool. By efficiently dissipating heat away from the M.2 area, ROG Maximus X Code minimizes the possibility of the performance-sapping throttling that can happen when drives become too warm. The heatsink's angular design adds an eye-catching touch to any build, while the T-sensor detects temperatures in the vital M.2 area for instant monitoring.

CONNECTIVITY

2X2 802.11 AC WIFI WITH MU-MIMO

Rog Maximus X Code Is Engineered With 2X2 Dual-Band 2.4/5Ghz Antennas For Up To 867Mbps transfer speeds - and the very latest Multi-User MIMO (MU-MIMO) technology to ensure that every connected user experiences the best wireless and online speeds!

Specifications

General Information

Manufacturer:
ASUS Computer International
Manufacturer Website Address:
http://www.asus.com/au
Brand Name:
ROG
Product Model:
MAXIMUS X CODE
Product Name:
MAXIMUS X CODE Desktop Motherboard
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Total Processor Supported:
1
Processor Socket:
Socket H4 LGA-1151
Processor Supported:
  • Core

Memory

Number of Memory Slots:
4
Memory Form Factor:
  • UDIMM
  • DIMM
Maximum Memory:
64 GB
Memory Technology:
DDR4 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 10
  • 5
  • 1
  • 0

Video

Onboard Video:
CPU Dependent Video

Audio

Audio Channels:
7.1

Network & Communication

Bluetooth:
Yes
Gigabit Ethernet:
Yes
Wi-Fi:
Yes

I/O Expansions

Number of Total Expansion Slots:
6
Total Number of PCI Express Slots:
6
Number of PCI Express x1 Slots:
3
Number of PCI Express x16 Slots:
3

Interfaces/Ports

Total Number of USB Ports:
10
Number of USB 3.1 Ports:
6
S/PDIF:
Yes
HDMI:
Yes
DisplayPort:
Yes

Onboard Interfaces

Number of SATA Interfaces:
6
Number of M.2 Interfaces:
2
Total Number of Onboard USB Ports:
6
Number of Onboard USB 3.1 Ports:
4

Physical Characteristics

Form Factor:
ATX
Width:
304.8 mm
Depth:
243.8 mm
