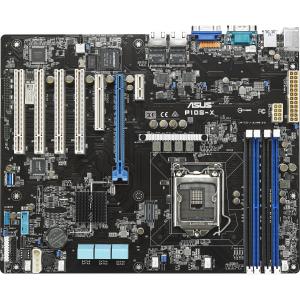

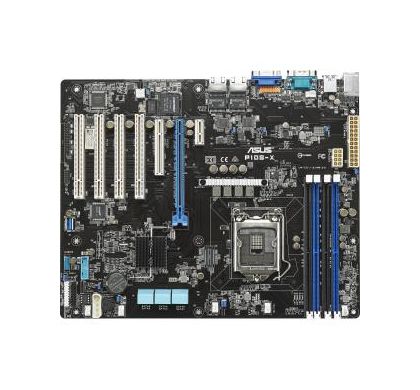

ASUS P10S-X Server Motherboard - Intel C232 Chipset - Socket H4 LGA-1151
This product has been discontinued by the manufacturer
Please visit
ASUS Motherboardsfor alternative options.
Description
Exclusive Combat Model
- Cost-effective C232 ServerBoard
- Platinum-Grade Power Efficiency
- Multiple PCI slots reserve the usage ability of legacy PCI devices
Specifications
General Information
Manufacturer:
ASUS Computer International
Manufacturer Website Address:
http://www.asus.com/au
Brand Name:
Asus
Product Model:
P10S-X
Product Name:
P10S-X Server Motherboard
Product Type:
Server Motherboard
Processor & Chipset
Chipset Manufacturer:
Intel
Chipset Model:
C232
Total Processor Supported:
1
Processor Socket:
Socket H4 LGA-1151
Processor Supported:
- Core i3
- Pentium
- Celeron
- Xeon
Memory
Number of Memory Slots:
4
Memory Form Factor:
UDIMM
Maximum Memory:
64 GB
Memory Technology:
DDR4 SDRAM
I/O Controller
Controller Type:
- Serial ATA/600
RAID Supported:
Yes
RAID Levels:
- 10
- 5
- 1
- 0
Video
Onboard Video:
On-board Video Chipset
Graphics Controller Manufacturer:
- ASPEED
Graphics Controller Model:
- AST1400
Network & Communication
Gigabit Ethernet:
Yes
I/O Expansions
Number of Total Expansion Slots:
6
Total Number of PCI Express Slots:
2
Number of PCI Express x8 Slots:
1
Number of PCI Express x16 Slots:
1
Interfaces/Ports
Total Number of USB Ports:
4
Number of USB 3.0 Ports:
2
VGA:
Yes
Onboard Interfaces
Total Number of Onboard USB Ports:
5
Number of Onboard USB 3.0 Ports:
3
Physical Characteristics
Form Factor:
ATX
Width:
304.8 mm
Depth:
243.8 mm
Miscellaneous
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Country of Origin:
- China
