LENOVO ThinkStation E31 2555AF5 Tower Workstation - 1 x Intel Xeon E3-1245V2 3.4GHz - 8 GB RAM - 180 GB SSD - DVD-Writer - Intel HD P4000 Graphics - DisplayPort

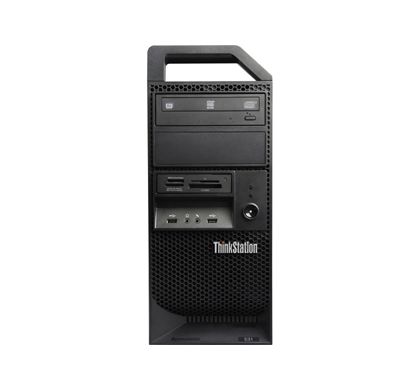

LENOVO ThinkStation E31 Workstation 2555AF5
2555AF5

This product has been discontinued by the manufacturer

Please visit

LENOVO Workstations

for alternative options.

Description

Unleash your potential.High-performance, 3D graphics solutions, dual-CPU systems, productivity-enhancing details - no standard desktop can do what these machines do. With ThinkStation®, there's no limit to what you can do.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
ThinkStation
Product Series:
E31
Product Model:
2555AF5
Product Name:
ThinkStation E31 2555AF5 Workstation
Product Type:
Workstation

Processor & Chipset

Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E3-1245V2
Processor Core:
Quad-core (4 Core)
Processor Speed:
3.40 GHz
Cache:
8 MB
Direct Media Interface:
5 GT/s
Hyper-Threading:
Yes
64-bit Processing:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C216

Memory

Standard Memory:
  • 8 GB
Maximum Memory:
32 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1600/PC3-12800
Number of Total Memory Slots:
4
Memory Card Reader:
Yes

Storage

Number of Solid State Drives:
1
Total Solid State Drive Capacity:
180 GB
Solid State Drive Interface:
Serial ATA/600
Solid State Drive Configuration:
1 x 180 GB
Optical Drive Type:
DVD-Writer
Optical Media Supported:
DVD-RAM/±R/±RW
Dual-Layer Media Supported:
Yes

Controllers

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0, 1

Display & Graphics

Graphics Controller Manufacturer:
  • Intel
Graphics Controller Model:
  • HD P4000
Graphics Memory Technology:
  • DDR3 SDRAM
Graphics Memory Accessibility:
  • Shared

I/O Expansions

Number of Total Expansion Bays:
5
Number of External 5.25" Bays:
2
Number of 3.5" Bays:
3
Number of Total Expansion Slots:
4
Number of PCI Slots:
2
Number of PCI Express x1 Slots:
1
Number of PCI Express x16 Slots:
1

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
8
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
4
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone:
Yes
VGA:
Yes
DisplayPort:
Yes

Input Devices

Keyboard:
Yes
Pointing Device Type:
  • Mouse

Power Description

Maximum Power Supply Wattage:
280 W

Miscellaneous

Package Contents:
  • ThinkStation E31 2555AF5 Workstation
  • Keyboard
  • Mouse
Certifications & Standards:
ISV Certified
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • Energy Star 5.2
  • GREENGUARD
  • RoHS

Physical Characteristics

Colour:
  • Raven Black
Form Factor:
Tower
Height:
424.2 mm
Width:
175.3 mm
Depth:
431.8 mm
Weight (Approximate):
12.50 kg
