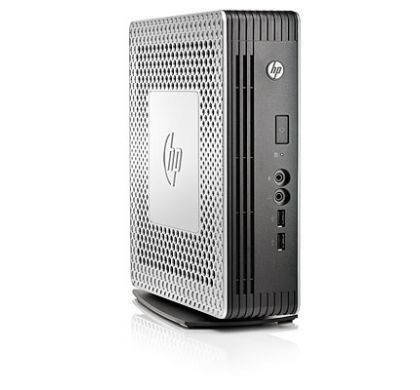

HP B8D16AA Tower Thin Client - AMD G-Series T56N 1.65 GHz - 4 GB RAM - 16 GB Flash - Wi-Fi - Windows Embedded Standard 7 - DisplayPort - DVI

B8D16AA

This product has been discontinued by the manufacturer

Please visit

HP Terminals/Thin Clients

for alternative options.

Description

HP t610 Flexible Series Thin Clients deliver added security, broad expansion options and a PC-like multimedia experience for virtualized desktops. A flexible, two-form factor solution with one powerful boost in performance.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Series:
t610 PLUS
Product Model:
B8D16AA
Product Name:
t610 PLUS Flexible Thin Client (ENERGY STAR) (B8D16AA)
Product Type:
Thin Client

Processor & Chipset

Processor Manufacturer:
AMD
Processor Type:
G-Series
Processor Model:
T56N
Processor Core:
Dual-core (2 Core)
Processor Speed:
1.65 GHz
Cache:
1 MB
64-bit Processing:
Yes
Chipset Manufacturer:
AMD
Chipset Model:
A55E

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
4 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1600/PC3-12800
Number of Total Memory Slots:
2
Flash Memory:
16 GB

Display & Graphics

Graphics Controller Manufacturer:
  • AMD
Graphics Controller Model:
  • Radeon HD 6320
Graphics Memory Capacity:
  • 512 MB
Graphics Memory Accessibility:
  • Shared

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet
Wi-Fi:
Yes
Wi-Fi Standard:
  • IEEE 802.11a/b/g/n

I/O Expansions

Number of Total Expansion Slots:
1
Number of PCI Express x4 Slots:
1

Interfaces/Ports

DVI:
Yes
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
2
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
DisplayPort:
Yes

Software

Operating System:
Windows Embedded Standard 7
Software Included:
Microsoft Internet Explorer 8

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Maximum Power Supply Wattage:
85 W

Physical Characteristics

Form Factor:
Tower
Height:
240.0 mm
Width:
220.0 mm
Depth:
65.0 mm
Height with Stand:
251 mm
Width with Stand:
220 mm
Depth with Stand:
65 mm
Weight (Approximate):
2.04 kg

Miscellaneous

Package Contents:
  • t610 PLUS Flexible Thin Client (ENERGY STAR) (B8D16AA)
  • Stand for Vertical Orientation
  • Dual DVI-I Dongle
Compatibility:
SERVER OS COMPATIBILITY/SUPPORT:
  • Citrix XenApp 5 and 6
  • Citrix XenDesktop 3 and 4
  • Citrix Presentation Server 4.0
  • Windows Server 2008 Terminal Services
  • Windows 2000/2003 Server families, Windows 2000/2003 Server Terminal Services
  • VMware Virtual Desktop Infrastructure
Certifications & Standards:
Ergonomics:
  • German ZH1/618
  • EN29241-3
Safety:
  • UL 1950
  • CSA 950
  • TÜV-GS (EN60 950)
RF Interference:
  • FCC Class B
  • CE
  • EN55022B
  • VCCI
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • Energy Star
  • EPEAT Gold
  • RoHS
  • WEEE

Warranty

Standard Warranty:
3 Year
