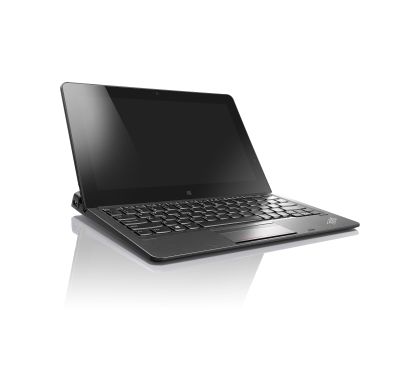

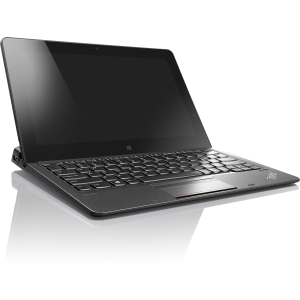

LENOVO ThinkPad Helix 20CG000YAU Ultrabook/Tablet - 29.5 cm (11.6") - In-plane Switching (IPS) Technology, VibrantView - Wireless LAN - Intel Core M 5Y70 Dual-core (2 Core) 1.10 GHz - Graphite Black

LENOVO ThinkPad Helix 20CG000YAU Ultrabook/Tablet - 29.5 cm (11.6") - In-plane Switching (IPS) Technology, VibrantView - Wireless LAN - Intel Core M 5Y70 Dual-core (2 Core) 1.10 GHz - Graphite Black
20CG000YAU

This product has been discontinued by the manufacturer

Please visit

LENOVO Tablets & Tablet PCs

for alternative options.

Description

The new ultrabook convertible defines the next generation of mobile computing through its ground breaking "rip and flip" design. This special design gives users absolute mobile freedom and versatility with four unique ways to use it. It's an ultra flexible machine with four usage modes - laptop mode, tablet mode, stand mode and tablet+ mode.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
ThinkPad Helix
Product Model:
20CG000YAU
Product Name:
ThinkPad Helix 20CG000YAU Ultrabook/Tablet
Product Type:
Ultrabook/Tablet

Processor & Chipset

Processor Manufacturer:
Intel
Processor Type:
Core M
Processor Model:
5Y70
Processor Speed:
1.10 GHz
Maximum Turbo Speed:
2.60 GHz
Processor Core:
Dual-core (2 Core)
Cache:
4 MB
64-bit Processing:
Yes
Hyper-Threading:
Yes
vPro Technology:
Yes
Chipset Manufacturer:
Intel

Memory

Standard Memory:
  • 8 GB
Memory Technology:
LPDDR3
Memory Standard:
  • LPDDR3-1600
Memory Card Reader:
Yes
Memory Card Supported:
  • MicroSD High Capacity (microSDHC)
  • microSD Extended Capacity (microSDXC)
  • microSD

Storage

Solid State Drive Capacity:
128 GB
Solid State Drive Interface:
Serial ATA/600
Solid State Drive Configuration:
1 x 128 GB
Optical Drive Type:
No

Display & Graphics

Screen Size:
29.5 cm (11.6")
Display Screen Type:
Active Matrix TFT Colour LCD
Display Screen Technology:
  • VibrantView
  • In-plane Switching (IPS) Technology
Aspect Ratio:
16:9
Screen Mode:
Full HD
Screen Resolution:
1920 x 1080
Backlight Technology:
LED
Touchscreen:
Yes
Multi-touch Screen:
Yes
Graphics Controller Manufacturer:
  • Intel
Graphics Controller Model:
  • HD Graphics 5300
Graphics Memory Technology:
  • LPDDR3
Graphics Memory Accessibility:
  • Shared

Network & Communication

Wi-Fi:
Yes
Wi-Fi Manufacturer:
Intel
Wi-Fi Model:
Dual Band Wireless-AC 7265
Wi-Fi Standard:
  • IEEE 802.11ac
Near Field Communication:
Yes

Interfaces/Ports

Micro HDMI:
Yes
Total Number of USB Ports:
2
Network (RJ-45):
No
Headphone/Microphone Combo Port:
Yes

Input Devices

Keyboard Type:
Physical Keyboard
Keyboard:
Yes

Built-in Devices

Sensor Type:
  • Inclinometer
  • Gyro Sensor
  • Digital Compass
  • Magnetometer
  • Accelerometer
  • Ambient Light Sensor
Front Camera/Webcam:
Yes
Front Camera Resolution/Webcam Resolution:
2 Megapixel
Rear Camera:
Yes
Rear Camera Resolution:
5 Megapixel
Rear Camera Video Resolution:
1920 x 1080
Focus Modes:
  • Auto-focus
  • Fixed Focus
Microphone:
Yes
Finger Print Reader:
Yes
Speakers:
Yes

Software

Operating System Platform:
Windows
Operating System:
Windows 8.1 Pro
Operating System Architecture:
64-bit

Battery Information

Number of Cells:
2-cell
Battery Chemistry:
Lithium Polymer (Li-Polymer)
Battery Energy:
35 Wh

Power Description

Maximum Power Supply Wattage:
36 W

Physical Characteristics

Colour:
  • Graphite Black
Form Factor:
Convertible
Width:
302.3 mm
Depth:
192.5 mm

Miscellaneous

Package Contents:
  • ThinkPad Helix 20CG000YAU Ultrabook/Tablet
  • AC Adapter
Features:
  • One Glass Solution (OGS) Panel
  • Gorilla Glass
Security Features:
    • Power-on Password
    • Hard Disk Password
    • Supervisor Password
    • Security Keyhole
    • Trusted Platform Module, TCG 1.2-compliant
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • GREENGUARD
  • RoHS
  • ENERGY STAR 6.1
