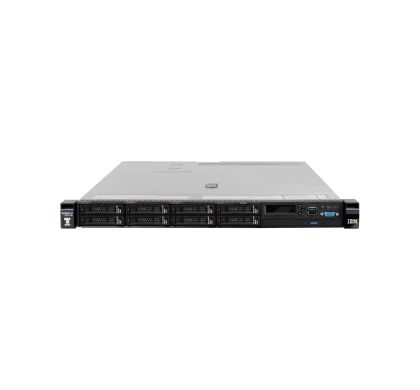

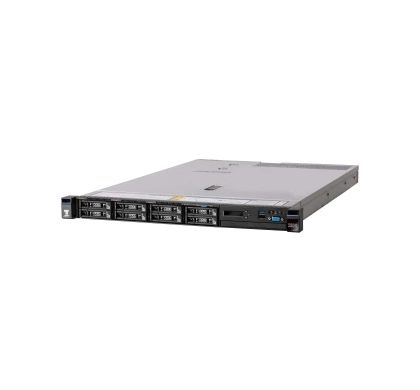

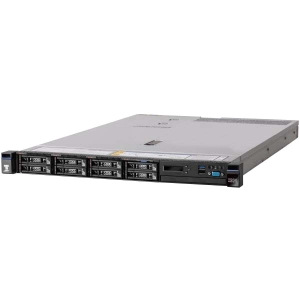

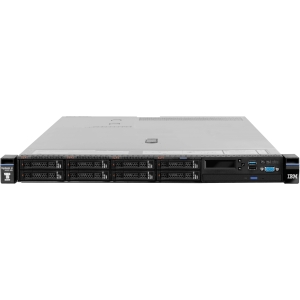

Lenovo System x x3550 M5 5463M2M 1U Rack Server - 1 x Intel Xeon E5-2699 v3 Octadeca-core (18 Core) 2.30 GHz
This product has been discontinued by the manufacturer
Please visit
LENOVO Serversfor alternative options.
Description
Designed in a compact, versatile 1U two-socket rack server, the IBM® System x3550 M5 rack server fuels almost any workload from infrastructure to high-performance computing (HPC) to cloud or big data with leadership security, efficiency, and reliability. Integrated with up to two Intel Xeon processors of the E5-2600 v3 product family with faster, energy-efficient TruDDR4 Memory, the x3550 M5 delivers exceptional performance. Storage can include up to 12 drives in an impressive selection of sizes and types. This IBM Redbooks® Product Guide describes the System x3550 M5.
Specifications
General Information
Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
System x
Product Series:
x3550 M5
Product Model:
5463M2M
Product Name:
System x3550 M5 5463M2M Server
Product Type:
Server
Processor & Chipset
Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5-2699 v3
Processor Core:
Octadeca-core (18 Core)
Processor Speed:
2.30 GHz
Maximum Turbo Speed:
3.60 GHz
Cache:
45 MB
QuickPath Interconnect:
9.60 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C612
Memory
Standard Memory:
- 16 GB
Memory Technology:
DDR4 SDRAM
Memory Standard:
- DDR4-2133/PC4-17000
Number of Total Memory Slots:
24
Storage
Number of Hard Drives:
No
Controllers
Controller Type:
- 12Gb/s SAS
- 6Gb/s SAS
RAID Supported:
Yes
RAID Levels:
- 0, 1, 10
I/O Expansions
Number of Internal 2.5" Bays:
4
Number of Total Expansion Slots:
2
Number of PCI Express x16 Slots:
2
Display & Graphics
Graphics Controller Manufacturer:
- Matrox
Graphics Controller Model:
- G200eR2
Graphics Memory Capacity:
- Up to 16 MB
Network & Communication
Ethernet Technology:
- Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
2
Number of USB 3.0 Ports:
3
Network (RJ-45):
Yes
VGA:
Yes
Remote Management:
Yes
Software
Operating System:
No
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
900 W
Miscellaneous
Package Contents:
- System x3550 M5 5463M2M Server
- Statement of Limited Warranty
- Important Notices
- Rack Installation Instructions
- Documentation CD that contains the Installation and User's Guide
- IBM System x3550 M5 Slide Kit G4
- 1 x 2.8 m C13-C14 Power Cord
Compatibility:
- Microsoft:
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2
- Red Hat:
- Red Hat Enterprise Linux 7
- Red Hat Enterprise Linux 6 Server x64 Edition (Update 5)
- SUSE:
- SUSE LINUX Enterprise Server 11 for AMD64/EM64T (SP3)
- SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T (SP3)
- VMware:
- VMware vSphere 5.5 (ESXi) (planned for later in 2014)
- VMware vSphere 5.1 (ESXi) (Update 2)
Certifications & Standards:
- FCC - Verified to comply with Part 15 of the FCC Rules, Class A
- Canada ICES-003, issue 5, Class A
- UL/IEC 60950-1
- CSA C22.2 No. 60950-1
- NOM-019
- Argentina IEC60950-1
- Japan VCCI, Class A
- Australia/New Zealand AS/NZS CISPR 22, Class A; AS/NZS 60950.1
- China CCC GB4943.1, GB9254 Class A, GB17625.1
- Taiwan BSMI CNS13438, Class A; CNS14336-1
- Korea KN22, Class A; KN24
- Russia, Belorussia and Kazakhstan, TR CU 020/2011 (for EMC) and TR CU 004/2011 (for safety)
- IEC 60950-1 (CB Certificate and CB Test Report)
- CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3)
- CISPR 22, Class A
- TUV-GS (EN60950-1/IEC60950-1,EK1-ITB2000)
Physical Characteristics
Form Factor:
Rack
Rack Height:
1U
Height:
43 mm
Width:
429 mm
Depth:
734 mm
Weight (Approximate):
19.30 kg
Warranty
Standard Warranty:
3 Year
