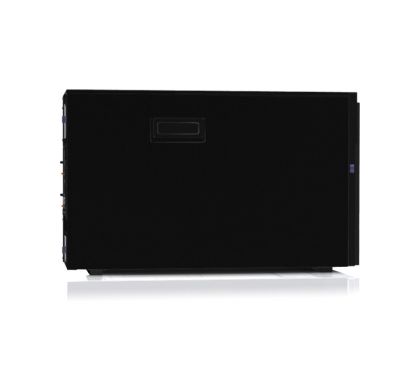

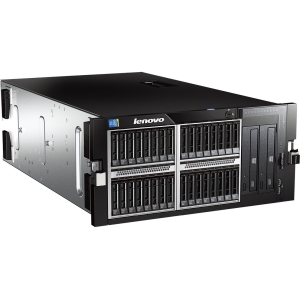

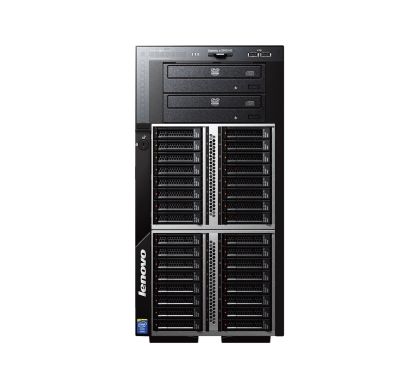

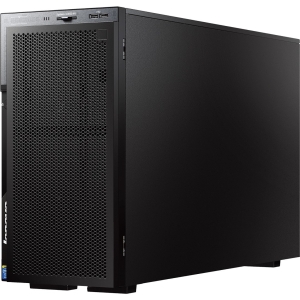

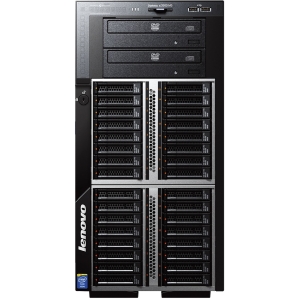

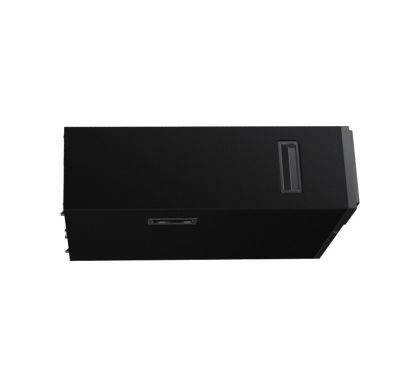

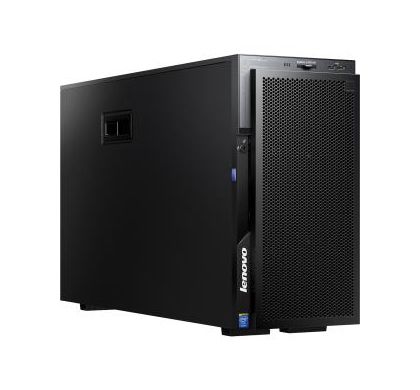

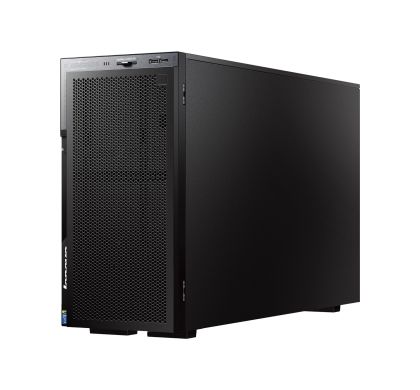

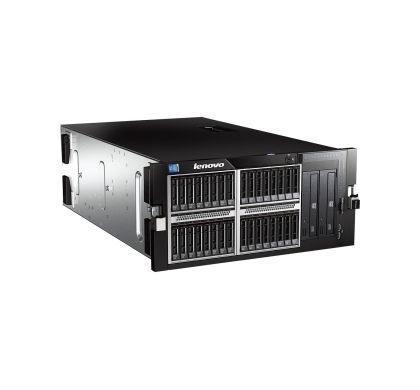

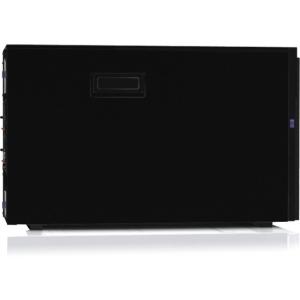

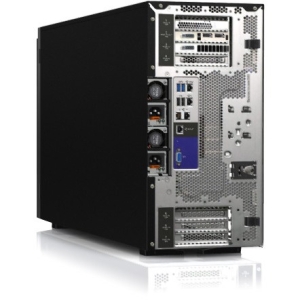

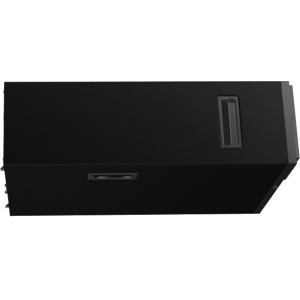

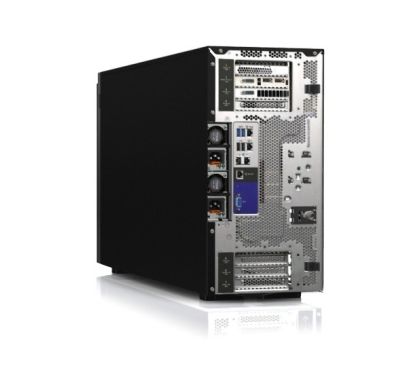

Lenovo System x x3500 M5 5464ELM 5U Tower Server - 1 x Intel Xeon E5-2640 v3 Octa-core (8 Core) 2.60 GHz

Lenovo System x x3500 M5 5464ELM 5U Tower Server - 1 x Intel Xeon E5-2640 v3 Octa-core (8 Core) 2.60 GHz
5464ELM

This product has been discontinued by the manufacturer

Please visit

LENOVO Servers

for alternative options.

Description

The Lenovo System x3500 M5 server provides outstanding performance for your business-critical applications. Its energy-efficient design supports more cores, memory, and data capacity in a scalable Tower or 5U Rack package that is easy to service and manage. With more computing power per watt and the latest Intel Xeon E5-2600 v3 processors, you can reduce costs while maintaining speed and availability.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
System x
Product Series:
x3500 M5
Product Model:
5464ELM
Product Name:
System x3500 M5 5464ELM Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5-2640 v3
Processor Core:
Octa-core (8 Core)
Processor Speed:
2.60 GHz
Maximum Turbo Speed:
3.40 GHz
Cache:
20 MB
QuickPath Interconnect:
8 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C612

Memory

Standard Memory:
  • 16 GB
Memory Technology:
DDR4 SDRAM
Memory Standard:
  • DDR4-2133/PC4-17000
Number of Total Memory Slots:
24

Storage

Number of Hard Drives:
No
Optical Drive Type:
DVD-Writer
Optical Media Supported:
DVD-RAM/±R/±RW
Dual-Layer Media Supported:
Yes

Controllers

Controller Type:
  • 6Gb/s SAS
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0, 5, 5+0, 6, 6+0

I/O Expansions

Number of Total Expansion Bays:
10
Number of External 5.25" Bays:
2
Number of Internal 2.5" Bays:
8
Number of Total Expansion Slots:
7
Number of PCI Express x8 Slots:
3
Number of PCI Express x16 Slots:
4

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200eR2
Graphics Memory Capacity:
  • Up to 16 MB

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
8
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
4
Network (RJ-45):
Yes
VGA:
Yes
Remote Management:
Yes

Software

Operating System:
No

Power Description

Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
750 W

Miscellaneous

Package Contents:
  • System x3500 M5 5464ELM Server
  • Statement of Limited Warranty
  • Important Notices
  • Registration flyer
  • Documentation CD that contains the Installation and User's Guide
  • 1 x 2.8 m C13 Line Cord
Compatibility:
  • Microsoft Windows Server 2012 R2
  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2012
  • SUSE LINUX Enterprise Server 11 for AMD64/EM64T
  • SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T
  • Red Hat Enterprise Linux 6 Server x64 Edition
  • Red Hat Enterprise Linux 7
  • SUSE Enterprise Linux Server (SLES) 12
  • SUSE Linux Enterprise Server 12 with XEN
  • VMware vSphere 5.5 (ESXi)
  • VMware vSphere 5.1 (ESXi)
Certifications & Standards:
  • FCC - Verified to comply with Part 15 of the FCC Rules, Class A
  • Canada ICES-003, issue 5, Class A
  • UL/IEC 60950-1
  • CSA C22.2 No. 60950-1-07
  • NOM-019
  • Argentina IEC60950-1
  • Japan VCCI, Class A
  • IEC-60950-1 (CB Certificate and CB Test Report)
  • Australia/New Zealand AS/NZS CISPR 22:2006, Class A; AS/NZS 60950.1
  • Taiwan BSMI CNS13438, Class A ;CNS14336-1
  • GB9254 Class A, GB17625.1
  • China CCC GB4943.1
  • Korea KN22, Class A; KN24

Physical Characteristics

Form Factor:
Tower
Rack Height:
5U
Height:
440 mm
Width:
218 mm
Depth:
720 mm
Weight (Approximate):
45.50 kg

Warranty

Standard Warranty:
3 Year
