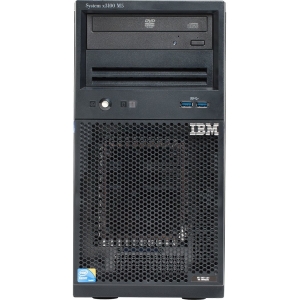

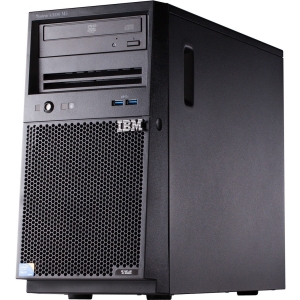

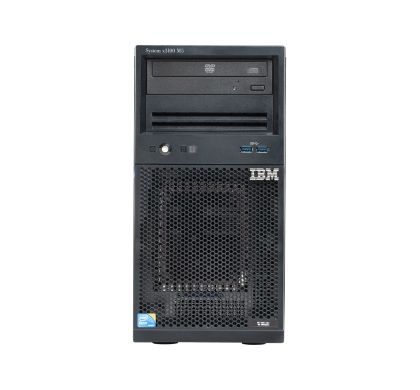

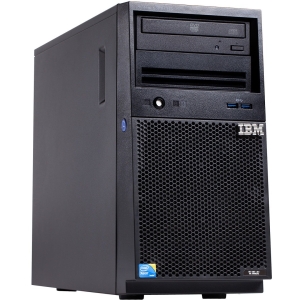

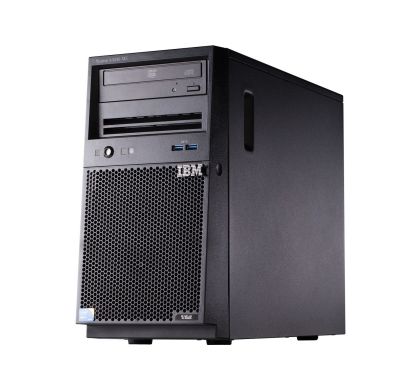

Lenovo System x x3100 M5 5457B3M 4U Mini-tower Server - 1 x Intel Xeon E3-1220 v3 Quad-core (4 Core) 3.10 GHz

Lenovo System x x3100 M5 5457B3M 4U Mini-tower Server - 1 x Intel Xeon E3-1220 v3 Quad-core (4 Core) 3.10 GHz
5457B3M
Please Call
Please contact us for pricing

Description

The IBM® System x3100 M5 single-socket tower server is designed for small businesses and first-time server buyers looking for a solution to improve business efficiency. It delivers several innovative features with a competitive price, either in a compact mini-tower form factor, or standard tower form factor with hot-swap power supplies and disk drives. The IBM System x3100 M5 provides next-generation performance in an innovative and compact design with flexible configuration options, built-in security, and systems management capabilities. It leverages the next-generation dual-core and quad-core Intel Xeon processor technology.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
System x
Product Series:
x3100 M5
Product Model:
5457B3M
Product Name:
System x3100 M5 5457B3M Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E3-1220 v3
Processor Core:
Quad-core (4 Core)
Processor Speed:
3.10 GHz
Maximum Turbo Speed:
3.50 GHz
Cache:
8 MB
Direct Media Interface:
5 GT/s
64-bit Processing:
Yes
Hyper-Threading:
No
Chipset Manufacturer:
Intel
Chipset Model:
C222

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
32 GB
Memory Technology:
DDR3L SDRAM
Memory Standard:
  • DDR3L-1600/PC3-12800
Number of Total Memory Slots:
4

Storage

Number of Hard Drives:
No
Optical Drive Type:
DVD-Reader
Optical Media Supported:
DVD-ROM
Dual-Layer Media Supported:
Yes

Controllers

Controller Type:
  • Serial ATA/300
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0

I/O Expansions

Number of Total Expansion Bays:
6
Number of External 5.25" Bays:
2
Number of 3.5" Bays:
4
Number of Total Expansion Slots:
4
Number of PCI Express x4 Slots:
1
Number of PCI Express x8 Slots:
2
Number of PCI Express x16 Slots:
1

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200eR2
Graphics Memory Capacity:
  • Up to 16 MB

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
7
Number of USB 2.0 Ports:
5
Number of USB 3.0 Ports:
2
Network (RJ-45):
Yes
VGA:
Yes
Remote Management:
Yes

Software

Operating System:
No

Power Description

Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
350 W

Miscellaneous

Package Contents:
  • System x3100 M5 5457B3M Server
  • Statement of Limited Warranty.
  • Important Notices.
  • Documentation CD that contains the Installation and Service Guide.
  • Country-specific Power Cord.
Compatibility:
  • Microsoft Windows Server 2008 R2 SP1
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R2
  • Red Hat Enterprise Linux 5 Server Edition U10
  • Red Hat Enterprise Linux 5 Server with Xen x64 Edition U10
  • Red Hat Enterprise Linux 5 Server x64 Edition U10
  • Red Hat Enterprise Linux 6 Server Edition U5
  • Red Hat Enterprise Linux 6 Server x64 Edition U5
  • Red Hat Enterprise Linux 7
  • SUSE Linux Enterprise Server 11 for AMD64/EM64T U3
  • SUSE Linux Enterprise Server 11 for x86 U3
  • SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T U3
  • VMware vSphere 5.1 (ESXi) U2
  • VMware vSphere 5.5 (ESXi)
Certifications & Standards:
  • ASHRAE A3
  • FCC - Verified to comply with Part 15 of the FCC Rules, Class A
  • Canada ICES003, issue 5, Class A
  • UL/IEC 60950-1
  • CSA C22.2 No. 60950-1
  • NOM-019
  • Argentina IEC60950-1
  • Japan VCCI, Class A
  • Australia/New Zealand AS/NZS CISPR 22, Class A; AS/NZS 60950.1
  • IEC-60950-1 (CB Certificate and CB Test Report)
  • China CCC GB4943.1, GB9254 Class A, and GB17625.1
  • Taiwan BSMI CNS13438, Class A); CNS14336-1
  • Korea KN22, Class A; KN24
  • Russia, Belorussia and Kazakhstan, TR CU 020/2011 (for EMC) and TR CU004/2011 (for safety)
  • IEC 60950-1 (CB Certificate and CB Test Report)
  • CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, and EN61000-3-3)
  • CISPR 22, Class A
  • TUV-GS (EN60950-1 /IEC60950-1, EK1-ITB2000)

Physical Characteristics

Form Factor:
Mini-tower
Rack Height:
4U
Height:
360.7 mm
Width:
180.3 mm
Depth:
480.1 mm
Weight (Approximate):
13.02 kg

Warranty

Standard Warranty:
1 Year
