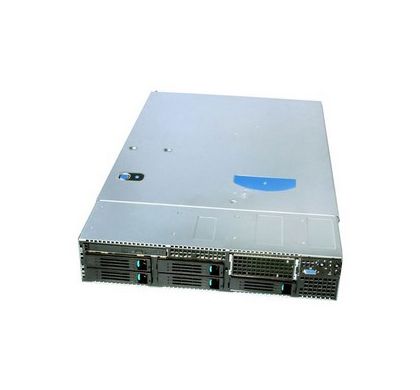

INTEL SR2600URLXR - INTEGRATED 2U

INTEL SR2600URLXR - INTEGRATED 2U
SR2600URLXR

This product has been discontinued by the manufacturer

Please visit

INTEL Servers

for alternative options.

Specifications

General Information

Manufacturer Website Address:
http://www.intel.com.au
Brand Name:
Intel
Product Name:
Server System SR2600URLXR Barebone System
Product Type:
Barebone System

Processor & Chipset

Number of Processors Supported:
2
Chipset Manufacturer:
Intel
Chipset Model:
5520

Memory

Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1333/PC3-10600
Number of Total Memory Slots:
12

Controllers

Controller Type:
  • Serial Attached SCSI (SAS)

I/O Expansions

Number of Total Expansion Bays:
8
Number of External 5.25" Bays:
1
Number of 3.5" Bays:
7
Number of Total Expansion Slots:
5
Number of PCI Express x8 Slots:
5

Display & Graphics

Graphics Controller Model:
  • Server Engine
Graphics Memory Capacity:
  • 64 MB
Graphics Memory Technology:
  • DDR2 SDRAM

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Network (RJ-45):
Yes

Power Description

Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
750 W

Miscellaneous

Package Contents:
  • Server System SR2600URLXR Barebone System
  • 1 x Full Height PCI Express 2.0 Riser Card
  • Intel Server Chassis SR2600
  • Intel Server Board S5520UR
  • 5 x Hot Swap HDD Carriers
  • 1 x 750 Watt Power Supply
  • Standard Front Panel
  • Active SAS Midplane
  • 2 x CPU Heatsinks
  • Pre-routed Cables
  • Memory Blanks
  • ODD Tray
  • 6 x Fans
    • Additional Information:
    QuickPath Technology:
  • QuickPath Interconnect supports up to 6.4 GT/s
    • Green Compliant:
    Yes
    Green Compliance Certificate/Authority:
    • 80 Plus
    • Energy Star
    • RoHS
    • WEEE

    Physical Characteristics

    Form Factor:
    Rack-mountable
    Rack Height:
    2U
    Height:
    87.0 mm
    Width:
    430.0 mm
    Depth:
    705.0 mm
