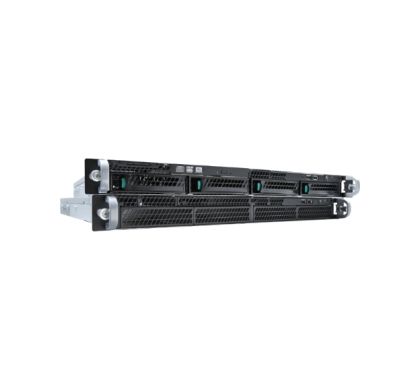

INTEL Server System R1304BTLSHBNR Barebone System - 1U Rack-mountable - Socket H2 LGA-1155 - 1 x Total Processor - Xeon Support

INTEL Server System R1304BTLSHBNR Barebone System - 1U Rack-mountable - Socket H2 LGA-1155 - 1 x Total Processor - Xeon Support
R1304BTLSHBNR

This product has been discontinued by the manufacturer

Please visit

INTEL Servers

for alternative options.

Description

Value priced 1U system with high-end server featuresThe Intel® Server Systems R1304BTL and R1304BTS represent the latest generation of 1U rack-optimized system solutions from Intel. Providing higher flexibility in data storage and security, including scalable, affordable upgrade options for Intel® Remote Management Module (Intel® RMM), SAS controllers, and Intel® Trusted Platform Module (Intel® TPM).

Specifications

General Information

Manufacturer:
Intel Corporation
Manufacturer Website Address:
http://www.intel.com.au
Brand Name:
Intel
Product Family:
Server System
Product Model:
R1304BTLSHBNR
Product Name:
Server System R1304BTLSHBNR
Product Type:
Barebone System

Processor & Chipset

Number of Processors Supported:
1
Direct Media Interface:
5 GT/s
64-bit Processing:
Yes

Memory

Maximum Memory:
32 GB
Memory Technology:
DDR3 SDRAM
Number of Total Memory Slots:
4

Controllers

Controller Type:
  • Serial ATA
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0, 5

I/O Expansions

Number of Total Expansion Bays:
5
Number of External 5.25" Bays:
1
Number of 3.5" Bays:
4
Number of Total Expansion Slots:
1
Number of PCI Express x16 Slots:
1

Display & Graphics

Graphics Controller Manufacturer:
  • Intel
Graphics Memory Accessibility:
  • Shared
Graphics Memory Technology:
  • DDR3 SDRAM

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
9
Network (RJ-45):
Yes

Software

Software Included:
Intel Server Management Software

Power Description

Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
350 W

Miscellaneous

Package Contents:
  • Server System R1304BTLSHBNR
  • 1 x 4-port Passive SATA Backplane
  • 4 x Hotswap Drive Sleds
  • 3 x Non-Redundant/Non-Hotswap Fans
  • 1 x Full-height Riser with One PCI Express 3.0 x8 Wired Slot (one x16 connector)
  • 1 x 350W Power Supply
  • 1 x Cable for Optical Drive Bay
  • 1 x Processor Heatsink
  • 2 x Chassis Front Handles in the Box (ears)

Physical Characteristics

Form Factor:
Rack-mountable
Rack Height:
1U

Warranty

Standard Warranty:
3 Year
