IBM x3850 X5 2xE7520 4C SERVER

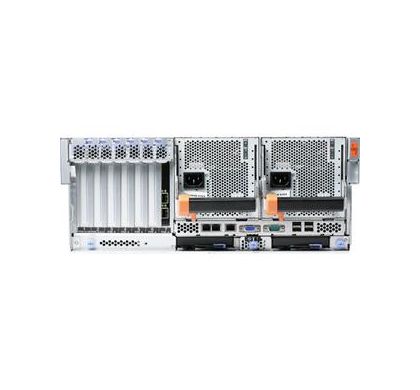

IBM x3850 X5 2xE7520 4C SERVER Rear
71451RM

This product has been discontinued by the manufacturer

Please visit

IBM Servers

for alternative options.

Specifications

General Information

Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
IBM
Product Family:
System x
Product Series:
x3850 X5
Product Name:
System x3850 X5 71451RY Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
4
Number of Processors Installed:
2
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E7520
Processor Core:
Quad-core
Processor Speed:
1.86 GHz
Cache:
18 MB
64-bit Processing:
Yes
Hyper-Threading:
Yes

Memory

Maximum Memory:
1 TB
Memory Technology:
DDR3 SDRAM
Number of Total Memory Slots:
64

Storage

Optical Drive Type:
No
Optical Media Supported:
No

Controllers

Controller Type:
  • Serial Attached SCSI (SAS)
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1E

I/O Expansions

Expansion Bays:
  • 8 x 2.5" Drive Bay Total Hot-swappable
Expansion Slots:
  • 7 x PCI (Half-length) Total

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200eV
Graphics Memory Capacity:
  • 16 MB
Graphics Memory Technology:
  • DDR2 SDRAM
Graphics Controller Interface:
PCI Express

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
6
Number of USB 2.0 Ports:
6
Network (RJ-45):
Yes

Power Description

Input Voltage:
  • 220 V AC
Number of Power Supplies Installed:
2
Maximum Power Supply Wattage:
3.95 kW

Physical Characteristics

Form Factor:
Rack
Rack Height:
4U
Height:
173.0 mm
Width:
483.0 mm
Depth:
720.0 mm
Weight (Approximate):
47.62 kg

Warranty

Standard Warranty:
3 Year Limited
