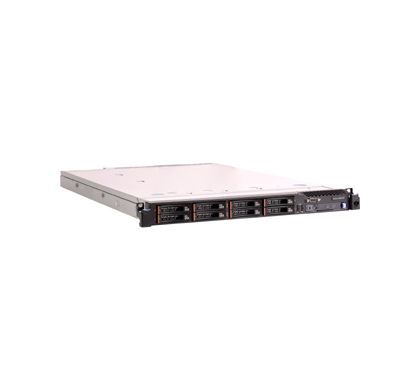

IBM System x 794472M 1U Rack Server - 1 x Intel Xeon X5675 3.06 GHz

794472M

This product has been discontinued by the manufacturer

Please visit

IBM Servers

for alternative options.

Description

The IBM System x3550 M3 builds on the latest Intel Xeon processor technology with extreme processing power and superior energy-management and cooling features. With twice the performance of previous generations and a flexible, energy-smart design that integrates low-wattage components, the x3550 M3 can help you meet demanding workloads at a lower cost per watt.

Specifications

General Information

Manufacturer:
IBM Corporation
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
IBM
Product Family:
System x
Product Series:
x3550 M3
Product Model:
794472M
Product Name:
System x3550 M3 794472M Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
X5675
Processor Core:
Hexa-core (6 Core)
Processor Speed:
3.06 GHz
Cache:
12 MB
QuickPath Interconnect:
6.40 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
5520

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
144 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1333/PC3-10600
Number of Total Memory Slots:
18

Storage

Number of Hard Drives:
No
Optical Drive Type:
No

Controllers

Controller Type:
  • Serial Attached SCSI (SAS)
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0, 5, 5+0

I/O Expansions

Number of Internal 2.5" Bays:
4
Number of Total Expansion Slots:
2
Number of PCI Express x16 Slots:
2

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200eV
Graphics Memory Capacity:
  • 16 MB

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
5
Number of USB 2.0 Ports:
4
Network (RJ-45):
Yes
VGA:
Yes
Remote Management:
Yes

Software

Operating System:
No

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
675 W

Miscellaneous

Package Contents:
  • System x3550 M3 794472M Server
  • Important Notices and Statement of Limited Warranty Documents
  • Documentation CD
  • Rack Installation Instructions
  • IBM Systems Director 6.2 Base for x86 DVD-ROM
  • IBM Gen 2 Slides Kit
  • IBM Gen 2 Cable Management Arm
  • 1 x 2.8 m C13 - C14 Power Cord
Compatibility:
  • Microsoft Windows HPC Server 2008
  • Microsoft Windows Server 2003 Compute Cluster Edition
  • Microsoft Windows Server 2003 R2 x64 Datacenter Edition Unlimited Virtualization
  • Microsoft Windows Server 2003, Web Edition
  • Microsoft Windows Server 2003/2003 R2, Datacenter x64 Edition
  • Microsoft Windows Server 2003/2003 R2, Enterprise Edition
  • Microsoft Windows Server 2003/2003 R2, Enterprise x64 Edition
  • Microsoft Windows Server 2003/2003 R2, Standard Edition
  • Microsoft Windows Server 2003/2003 R2, Standard x64 Edition
  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2008, Datacenter x64 Edition
  • Microsoft Windows Server 2008, Datacenter x86 Edition
  • Microsoft Windows Server 2008, Enterprise x64 Edition
  • Microsoft Windows Server 2008, Enterprise x86 Edition
  • Microsoft Windows Server 2008, Standard x64 Edition
  • Microsoft Windows Server 2008, Standard x86 Edition
  • Microsoft Windows Server 2008, Web x64 Edition
  • Microsoft Windows Server 2008, Web x86 Edition
  • Microsoft Windows Small Business Server 2003/2003 R2 Premium Edition
  • Microsoft Windows Small Business Server 2003/2003 R2 Standard Edition
  • Microsoft Windows Small Business Server 2008 Premium Edition
  • Microsoft Windows Small Business Server 2008 Standard Edition
  • Red Hat Enterprise Linux 4 AS for AMD64/EM64T
  • Red Hat Enterprise Linux 4 AS for x86
  • Red Hat Enterprise Linux 4 ES for AMD64/EM64T
  • Red Hat Enterprise Linux 4 ES for x86
  • Red Hat Enterprise Linux 4 WS/HPC for AMD64/EM64T
  • Red Hat Enterprise Linux 4 WS/HPC for x86
  • Red Hat Enterprise Linux 5 Server Edition
  • Red Hat Enterprise Linux 5 Server with Xen x64 Edition
  • Red Hat Enterprise Linux 5 Server x64 Edition
  • Red Hat Enterprise Linux 6 Server Edition
  • Red Hat Enterprise Linux 6 Server x64 Edition
  • Red Hat Enterprise MRG 1.0 Realtime (x64)
  • Solaris 10 Operating System
  • SUSE LINUX Enterprise Real Time 11 AMD64/EM64T
  • SUSE LINUX Enterprise Server 10 for AMD64/EM64T
  • SUSE LINUX Enterprise Server 10 for x86
  • SUSE LINUX Enterprise Server 10 with Xen for AMD64/EM64T
  • SUSE LINUX Enterprise Server 11 for AMD64/EM64T
  • SUSE LINUX Enterprise Server 11 for x86
  • SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T
Certifications & Standards:
  • FCC - Verified to comply with Part 15 of the FCC Rules, Class A
  • Canada ICES-003, issue 4, Class A
  • UL/IEC 60950-1
  • CSA C22.2 No. 69950-1-03
  • NOM-019
  • Argentina IEC60950-1
  • Japan VCCI, Class A
  • Australia/New Zealand AS/NZS CISPR 22:2006, Class A
  • IEC-60950-1:2001 (CB Certificate and CB Test Report)
  • Taiwan BSMI CNS 13438, Class A; CNS 14336
  • China CCC (4943-2001), GB 9254-2008 Class A, GB 17625.1:2003
  • Korea KN22, Class A; KN24
  • Russia/GOST ME01, IEC-60950-1, GOST R 51318.22-99, GOST R 51318.24-99, GOST R 51317.3.2-2006, GOST R 51317.3.3-99
  • IEC 60950-1 (CB Certificate and CB Test Report)
  • CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3)
  • CISPR 22, Class A
  • TUV-GS (EN60950-1 /IEC60950-1,EK1-ITB2000)
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • 80 Plus

Physical Characteristics

Form Factor:
Rack
Rack Height:
1U
Height:
43.0 mm
Width:
440.0 mm
Depth:
711.0 mm

Warranty

Standard Warranty:
3 Year Limited
