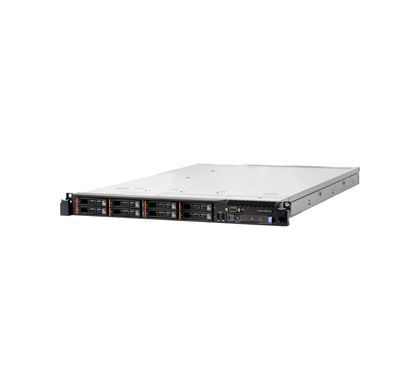

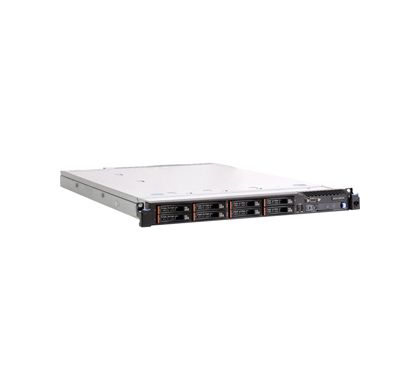

IBM System x 794462M 1U Rack Server - 1 x Intel Xeon E5649 2.53 GHz

794462M

This product has been discontinued by the manufacturer

Please visit

IBM Servers

for alternative options.

Description

The IBM System x3550 M3 builds on the latest Intel Xeon processor technology with extreme processing power and superior energy-management and cooling features. With twice the performance of previous generations and a flexible, energy-smart design that integrates low-wattage components, the x3550 M3 can help you meet demanding workloads at a lower cost per watt.

Specifications

General Information

Manufacturer:
IBM Corporation
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
IBM
Product Family:
System x
Product Series:
x3550 M3
Product Model:
794462M
Product Name:
System x3550 M3 794462M Express Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5649
Processor Core:
Hexa-core (6 Core)
Processor Speed:
2.53 GHz
Cache:
12 MB
QuickPath Interconnect:
5.86 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
192 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1333/PC3-10600
Number of Total Memory Slots:
18

Storage

Number of Hard Drives:
No
Optical Drive Type:
No

Controllers

Controller Type:
  • Serial Attached SCSI (SAS)
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0, 5, 5+0

I/O Expansions

Number of Total Expansion Bays:
4
Number of Internal 2.5" Bays:
4
Number of Total Expansion Slots:
2
Number of PCI Express x16 Slots:
2

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200eV
Graphics Memory Capacity:
  • 16 MB
Graphics Memory Technology:
  • DDR2 SDRAM

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Network (RJ-45):
Yes

Software

Operating System:
No

Power Description

Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
460 W

Miscellaneous

Compatibility:
  • Microsoft Windows Server 2008 R2 and 2008
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server

    • Physical Characteristics

    Colour:
    • Stealth Black
    Form Factor:
    Rack
    Rack Height:
    1U
    Height:
    43.0 mm
    Width:
    439.0 mm
    Depth:
    711.0 mm

    Warranty

    Standard Warranty:
    3 Year Limited
