IBM System x 7915L2M 2U Rack Server - 1 x Intel Xeon E5-2680 2.70 GHz - 2 Processor Support - 8 GB Standard/96 GB Maximum RAM - Serial Attached SCSI (SAS) RAID Supported Controller - Gigabit Ethernet

7915L2M

This product has been discontinued by the manufacturer

Please visit

IBM Servers

for alternative options.

Description

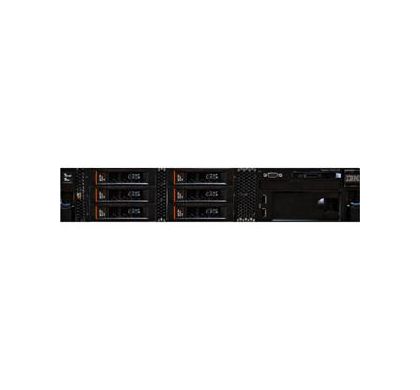

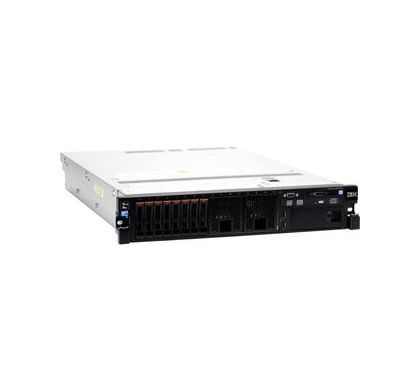

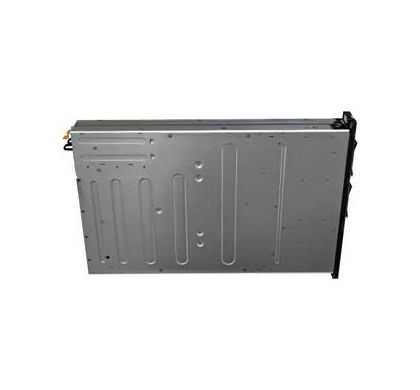

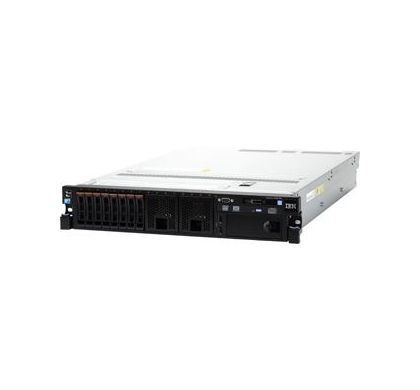

The IBM System x3650 M4 server provides outstanding performance for your business-critical applications. Its energy-efficient design supports more cores, memory, and data capacity in a scalable 2U package that is easy to service and manage. With more computing power per watt and the latest Intel Xeon processors, you can reduce costs while maintaining speed and availability.

Specifications

General Information

Manufacturer:
IBM Corporation
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
IBM
Product Family:
System x
Product Series:
x3650 M4
Product Model:
7915L2M
Product Name:
System x3650 M4 7915L2M Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5-2680
Processor Core:
Octa-core (8 Core)
Processor Speed:
2.70 GHz
Cache:
20 MB
QuickPath Interconnect:
8 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C602J

Memory

Standard Memory:
  • 8 GB
Maximum Memory:
96 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1600/PC3-12800
Number of Total Memory Slots:
24

Storage

Number of Hard Drives:
No
Optical Drive Type:
No

Controllers

Controller Type:
  • Serial Attached SCSI (SAS)
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0

I/O Expansions

Number of Total Expansion Bays:
9
Number of External 5.25" Bays:
1
Number of Internal 2.5" Bays:
8
Number of Total Expansion Slots:
3
Number of PCI Express x8 Slots:
3

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200eR2
Graphics Memory Capacity:
  • 16 MB

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
8
Number of USB 2.0 Ports:
6
Network (RJ-45):
Yes
VGA:
Yes
Remote Management:
Yes

Software

Operating System:
No

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
900 W

Miscellaneous

Package Contents:
  • System x3650 M4 7915L2M Server
  • Statement of Limited Warranty
  • Important Notices
  • Rack Installation Instructions
  • Documentation CD that contains the Installation and User's Guide
  • IBM Systems Director 6.3 Base for x86 DVD-ROM
  • IBM System x Gen-III Slides Kit
  • IBM System x Gen-III Cable Management Arm (CMA)
  • 1 x 2.8 m (9.18 in) C13-C14 Power Cord
Compatibility:
  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2008, Datacenter x64 Edition
  • Microsoft Windows Server 2008, Datacenter x86 Edition
  • Microsoft Windows Server 2008, Enterprise x64 Edition
  • Microsoft Windows Server 2008, Enterprise x86 Edition
  • Microsoft Windows Server 2008, Standard x64 Edition
  • Microsoft Windows Server 2008, Standard x86 Edition
  • Microsoft Windows Server 2008, Web x64 Edition
  • Microsoft Windows Server 2008, Web x86 Edition
  • Microsoft Windows Small Business Server 2008 Premium Edition
  • Microsoft Windows Small Business Server 2008 Standard Edition
  • Red Hat Enterprise Linux 5 Server with Xen x64 Edition
  • Red Hat Enterprise Linux 5 Server x64 Edition
  • Red Hat Enterprise Linux 6 Server Edition
  • Red Hat Enterprise Linux 6 Server x64 Edition
  • SUSE Linux Enterprise Server 10 for AMD64/EM64T
  • SUSE Linux Enterprise Server 11 for AMD64/EM64T
  • SUSE Linux Enterprise Server 11 for x86
  • SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T
Certifications & Standards:
  • FCC - Verified to comply with Part 15 of the FCC Rules, Class A
  • Canada ICES-003, issue 4, Class A
  • UL/IEC 60950-1
  • CSA C22.2 No. 60950-1
  • NOM-019
  • Argentina IEC60950-1
  • Japan VCCI, Class A
  • Australia/New Zealand AS/NZS CISPR 22, Class A
  • IEC 60950-1(CB Certificate and CB Test Report)
  • China CCC (GB4943), GB9254 Class A, GB17625.1
  • Taiwan BSMI CNS13438, Class A; CNS14336-1
  • Korea KN22, Class A; KN24
  • Russia/GOST ME01, IEC-60950-1, GOST R 51318.22, GOST R 51318.24, GOST R 51317.3.2, GOST R 51317.3.3
  • IEC 60950-1 (CB Certificate and CB Test Report)
  • CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3)
  • CISPR 22, Class A
  • TUV-GS (EN60950-1 /IEC60950-1,EK1-ITB2000)

Physical Characteristics

Form Factor:
Rack
Rack Height:
2U
Height:
86.0 mm
Width:
445.0 mm
Depth:
747.0 mm

Warranty

Standard Warranty:
3 Year
