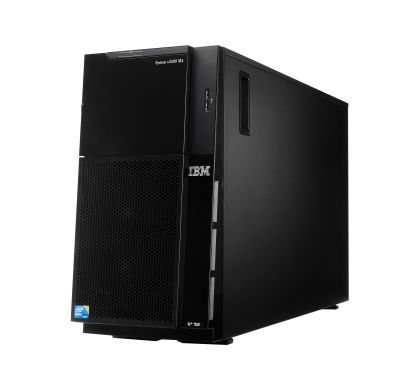

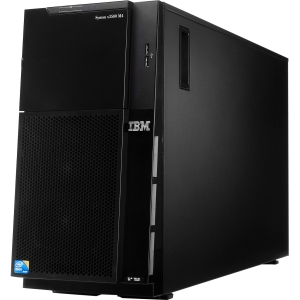

Lenovo System x x3500 M4 7383C5M 5U Tower Server - 1 x Intel Xeon E5-2620 v2 Hexa-core (6 Core) 2.10 GHz

Lenovo System x x3500 M4 7383C5M 5U Tower Server - 1 x Intel Xeon E5-2620 v2 Hexa-core (6 Core) 2.10 GHz
7383C5M

This product has been discontinued by the manufacturer

Please visit

IBM Servers

for alternative options.

Description

The IBM® System x3500 M4 server provides outstanding performance for your mission-critical applications. Its energy-efficient design supports more cores, memory, and data capacity in a scalable Tower or 5U Rack package that is easy to service and manage. With more computing power per watt and the latest Intel Xeon processors, you can reduce costs while maintaining speed and availability.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
System x
Product Series:
x3500 M4
Product Model:
7383C5M
Product Name:
System x3500 M4 7383C5M Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5-2620 v2
Processor Core:
Hexa-core (6 Core)
Processor Speed:
2.10 GHz
Cache:
15 MB
QuickPath Interconnect:
7.20 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C602J

Memory

Standard Memory:
  • 8 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1600/PC3-12800
Number of Total Memory Slots:
24

Storage

Number of Hard Drives:
No
Optical Drive Type:
DVD-Reader
Optical Media Supported:
DVD-ROM
Dual-Layer Media Supported:
Yes

Controllers

Controller Type:
  • 6Gb/s SAS
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0

I/O Expansions

Number of Total Expansion Bays:
10
Number of External 5.25" Bays:
2
Number of Internal 2.5" Bays:
8
Number of Total Expansion Slots:
8
Number of PCI Express x8 Slots:
5
Number of PCI Express x16 Slots:
3

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200eR2
Graphics Memory Capacity:
  • Up to 16 MB

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
8
Number of USB 2.0 Ports:
6
Network (RJ-45):
Yes
VGA:
Yes
Remote Management:
Yes

Software

Operating System:
No

Power Description

Input Voltage:
  • 220 V AC
  • 110 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
750 W

Miscellaneous

Package Contents:
  • System x3500 M4 7383C5M Server
  • Statement of Limited Warranty
  • Important Notices
  • Registration flyer
  • Documentation CD that contains the Installation and User's Guide
  • IBM Systems Director 6.3 Base for x86 DVD-ROM
  • 1 x 2.8 m C13 Line Cord
Compatibility:
  • Microsoft Windows Server 2008, Datacenter x64 Edition
  • Microsoft Windows Server 2008, Datacenter x86 Edition
  • Microsoft Windows Server 2008, Enterprise x64 Edition
  • Microsoft Windows Server 2008, Enterprise x86 Edition
  • Microsoft Windows Server 2008, Standard x64 Edition
  • Microsoft Windows Server 2008, Standard x86 Edition
  • Microsoft Windows Server 2008, Web x64 Edition
  • Microsoft Windows Server 2008, Web x86 Edition
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R2 (support is planned for earlier in 2014)
  • Microsoft Windows Small Business Server 2008 Premium Edition*
  • Microsoft Windows Small Business Server 2008 Standard Edition*
  • Red Hat Enterprise Linux 5 Server Edition
  • Red Hat Enterprise Linux 5 Server with Xen x64 Edition
  • Red Hat Enterprise Linux 5 Server x64 Edition
  • Red Hat Enterprise Linux 6 Server Edition
  • Red Hat Enterprise Linux 6 Server x64 Edition
  • SUSE LINUX Enterprise Server 10 for AMD64/EM64T
  • SUSE LINUX Enterprise Server 10 for x86
  • SUSE LINUX Enterprise Server 11 for AMD64/EM64T
  • SUSE LINUX Enterprise Server 11 for x86
  • SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T
  • VMware vSphere 5.0 (ESXi)
  • VMware vSphere 5.1 (ESXi)
Certifications & Standards:
  • FCC - Verified to comply with Part 15 of the FCC Rules, Class A
  • Canada ICES-003, issue 4, Class A
  • UL/IEC 60950-1
  • CSA C22.2 No. 60950-1-07
  • NOM-019
  • Argentina IEC60950-1
  • Japan VCCI, Class A
  • Australia/New Zealand AS/NZS CISPR 22:2006, Class A
  • IEC-60950-1 (CB Certificate and CB Test Report)
  • Taiwan BSMI CNS13438, Class A; CNS14336-1
  • China CCC (GB4943-2001), GB9254-2008 class A, GB17625.1-2003
  • Korea KN22, Class A; KN24
  • CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, and EN61000-3-3)
  • CISPR 22, Class A
  • TUV-GS EN60950-1 /IEC60950-1,EK1-ITB2000)
  • Russia/GOST ME01, IEC-60950-1, GOST R 51318.22-99, GOST R 51318.24-99, GOST R 51317.3.2-99, GOST R 51317.3.3-99
  • IEC 60950-1 (CB Certificate and CB Test Report)

Physical Characteristics

Form Factor:
Tower
Rack Height:
5U
Height:
440 mm
Width:
218 mm
Depth:
750 mm
Weight (Approximate):
39.80 kg

Warranty

Standard Warranty:
3 Year
