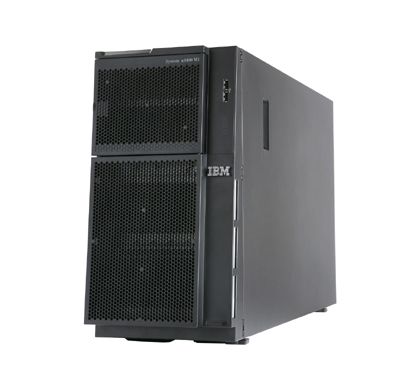

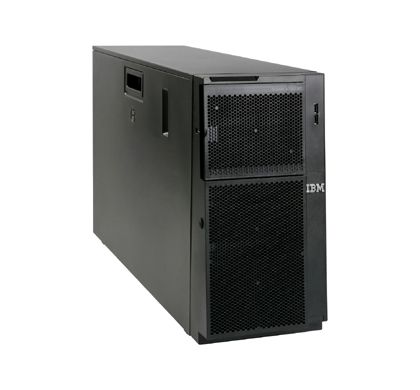

IBM System x 737958M 5U Tower Server - 1 x Xeon E5620 2.40 GHz

737958M

This product has been discontinued by the manufacturer

Please visit

IBM Servers

for alternative options.

Description

The IBM System x3400 M3 leverages the latest Intel Xeon processors and memory capacity to deliver greater processing power and flexibility. Enhanced with cost-optimized RAID technology, mainframe-inspired reliability and additional memory, the x3400 M3 can provide superior performance per cost for virtualization and other intensive applications.

Specifications

General Information

Manufacturer:
IBM Corporation
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
IBM
Product Family:
System x
Product Series:
x3400 M3
Product Model:
737958M
Product Name:
System x3400 M3 737958M Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5620
Processor Core:
Quad-core (4 Core)
Processor Speed:
2.40 GHz
Cache:
12 MB
QuickPath Interconnect:
5.86 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
128 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1333/PC3-10600
Number of Total Memory Slots:
16

Storage

Number of Hard Drives:
No
Optical Drive Type:
DVD-Reader
Optical Media Supported:
DVD-ROM

Controllers

Controller Type:
  • Serial Attached SCSI (SAS)
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0

I/O Expansions

Number of Total Expansion Bays:
11
Number of External 5.25" Bays:
3
Number of Internal 2.5" Bays:
8
Number of Total Expansion Slots:
6
Number of PCI Slots:
1
Number of PCI Express x8 Slots:
4
Number of PCI Express x16 Slots:
1

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200e
Graphics Memory Capacity:
  • 16 MB
Graphics Memory Technology:
  • DDR2 SDRAM

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
6
Number of USB 2.0 Ports:
6
Network (RJ-45):
Yes

Software

Operating System:
No

Power Description

Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
920 W

Miscellaneous

Compatibility:
  • Microsoft Windows Server 2008 R2
  • Red Hat Linux
  • SUSE Linux

    • Physical Characteristics

    Colour:
    • Stealth Black
    Form Factor:
    Tower
    Rack Height:
    5U
    Height:
    439.0 mm
    Width:
    218.0 mm
    Depth:
    767.0 mm
    Weight (Approximate):
    38.00 kg

    Warranty

    Standard Warranty:
    3 Year Limited
