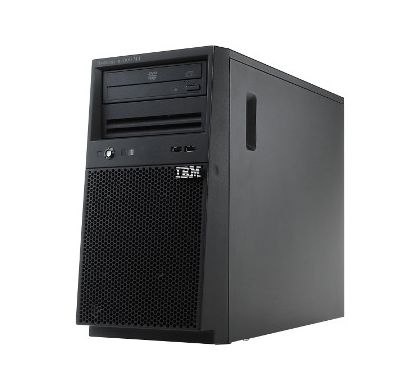

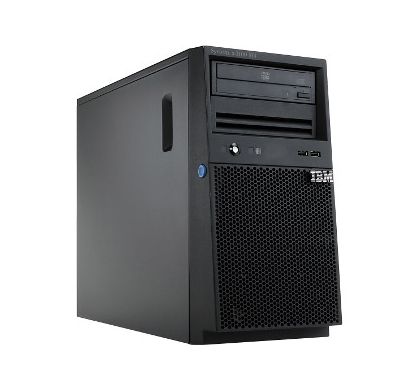

IBM System x 2582B2M Tower Server - 1 x Intel Xeon E3-1220V2 3.10 GHz - 1 Processor Support - 4 GB Standard/32 GB Maximum RAM - DVD-Reader - Serial ATA/300 RAID Supported Controller - Gigabit Ethernet

2582B2M

This product has been discontinued by the manufacturer

Please visit

IBM Servers

for alternative options.

Description

The System x3100 M4 single-socket tower server is designed for small businesses and first-time server buyers looking for a solution to improve business efficiency. The x3100 M4 delivers several IBM innovative features in a compact mini 4U form factor with competitive price.

Specifications

General Information

Manufacturer:
IBM Corporation
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
IBM
Product Family:
System x
Product Series:
x3100 M4
Product Model:
2582B2M
Product Name:
System x3100 M4 2582B2M Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E3-1220V2
Processor Core:
Quad-core (4 Core)
Processor Speed:
3.10 GHz
Cache:
8 MB
Direct Media Interface:
5 GT/s
64-bit Processing:
Yes
Hyper-Threading:
No
Chipset Manufacturer:
Intel
Chipset Model:
C202

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
32 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1600/PC3-12800
Number of Total Memory Slots:
4

Storage

Number of Hard Drives:
No
Optical Drive Type:
DVD-Reader
Optical Media Supported:
DVD-ROM
Dual-Layer Media Supported:
Yes

Controllers

Controller Type:
  • Serial ATA/300
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0

I/O Expansions

Number of Total Expansion Bays:
6
Number of External 5.25" Bays:
2
Number of 3.5" Bays:
4
Number of Total Expansion Slots:
4
Number of PCI Express x1 Slots:
1
Number of PCI Express x4 Slots:
1
Number of PCI Express x8 Slots:
1
Number of PCI Express x16 Slots:
1

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
7
Number of USB 2.0 Ports:
6
Network (RJ-45):
Yes
VGA:
Yes
Remote Management:
Yes

Software

Operating System:
No

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
350 W

Miscellaneous

Package Contents:
  • System x3100 M4 2582B2M Server
  • Statement of Limited Warranty.
  • Important Notices.
  • Documentation CD that contains the Installation and User's Guide.
  • IBM Systems Director 6.2 Base for x86 DVD-ROM.
  • 1 x Country-Specific Line Cord
Compatibility:
  • 4690 Operating System V6
  • Microsoft Windows Server 2008 Foundation
  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2008, Enterprise x64 Edition
  • Microsoft Windows Server 2008, Enterprise x86 Edition
  • Microsoft Windows Server 2008, Standard x64 Edition
  • Microsoft Windows Server 2008, Standard x86 Edition
  • Microsoft Windows Server 2008, Web x64 Edition
  • Microsoft Windows Server 2008, Web x86 Edition
  • Red Hat Enterprise Linux 5 Server Edition
  • Red Hat Enterprise Linux 5 Server Edition with Xen
  • Red Hat Enterprise Linux 5 Server with Xen x64 Edition
  • Red Hat Enterprise Linux 5 Server x64 Edition
  • Red Hat Enterprise Linux 6 Server Edition
  • Red Hat Enterprise Linux 6 Server x64 Edition
  • SUSE LINUX Enterprise Server 10 for AMD64/EM64T
  • SUSE LINUX Enterprise Server 10 for x86
  • SUSE LINUX Enterprise Server 10 with Xen for AMD64/EM64T
  • SUSE LINUX Enterprise Server 11 for AMD64/EM64T
  • SUSE LINUX Enterprise Server 11 for x86
  • SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T
  • VMware ESX 4.1
  • VMware vSphere 5
Certifications & Standards:
  • FCC - Verified to comply with Part 15 of the FCC Rules, Class A
  • Canada ICES-003, issue 4, Class A
  • UL/IEC 60950-1
  • CSA C22.2 No. 69950-1-07
  • NOM-019
  • Argentina IEC60950-1
  • Japan VCCI, Class A
  • Australia/New Zealand AS/NZS CISPR 22:2009, Class A
  • IEC-60950-1:2001 (CB Certificate and CB Test Report)
  • Taiwan BSMI CNS 13438, Class A; CNS 14336-1
  • China CCC (4943-2001), GB 9254-2008 Class A, GB 17625.1:2003
  • Korea KN22, Class A; KN24
  • Russia/GOST ME01, IEC-60950-1, GOST R 51318.22-99, GOST R 51318.24-99, GOST R 51317.3.2-2006, GOST R 51317.3.3-2008
  • IEC 60950-1 (CB Certificate and CB Test Report)
  • CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3)
  • CISPR 22, Class A
  • TUV-GS (EN60950-1 /IEC60950-1,EK1-ITB2000)

Physical Characteristics

Form Factor:
Tower
Height:
360.0 mm
Width:
180.0 mm
Depth:
405.0 mm

Warranty

Standard Warranty:
1 Year
