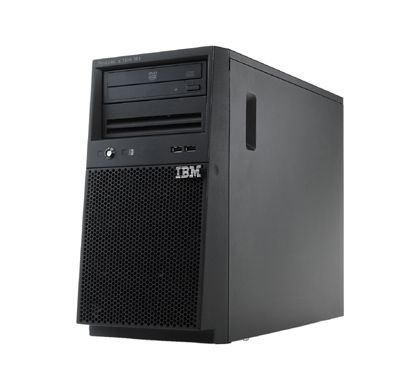

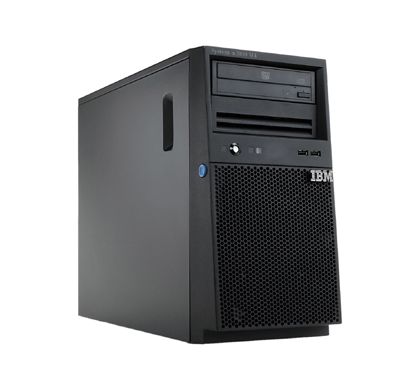

IBM System x 258232M 4U Mini-tower Server - 1 x Intel Pentium G850 2.90 GHz

258232M

This product has been discontinued by the manufacturer

Please visit

IBM Servers

for alternative options.

Description

For smaller workloads or branch offices, IBM System x Tower Express servers pack in plenty of processing power and storage, and offer growing businesses the flexibility to start small and easily add capacity over time. Whatever your computing needs - be it file and print, email, collaboration or virtualisation - IBM System x Tower Express servers deliver exceptional value, reliability, performance and ease of use.

Specifications

General Information

Manufacturer:
IBM Corporation
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
IBM
Product Family:
System x
Product Series:
x3100 M4
Product Model:
258232M
Product Name:
System x3100 M4 258232M Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Pentium
Processor Model:
G850
Processor Core:
Dual-core (2 Core)
Processor Speed:
2.90 GHz
Cache:
3 MB
Direct Media Interface:
5 GT/s
64-bit Processing:
Yes
Hyper-Threading:
No

Memory

Standard Memory:
  • 2 GB
Maximum Memory:
32 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1333/PC3-10600
Number of Total Memory Slots:
4

Storage

Number of Hard Drives:
No
Optical Drive Type:
DVD-Reader
Optical Media Supported:
DVD-ROM

Controllers

Controller Type:
  • Serial ATA
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0

I/O Expansions

Number of Total Expansion Bays:
6
Number of External 5.25" Bays:
2
Number of 3.5" Bays:
4
Number of Total Expansion Slots:
4
Number of PCI Express x1 Slots:
1
Number of PCI Express x4 Slots:
1
Number of PCI Express x8 Slots:
1
Number of PCI Express x16 Slots:
1

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200eR2
Graphics Memory Capacity:
  • 16 MB
Graphics Memory Technology:
  • SDRAM

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
7
Number of USB 2.0 Ports:
7
Network (RJ-45):
Yes
VGA:
Yes
Remote Management:
Yes

Software

Operating System:
No

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
350 W

Miscellaneous

Certifications & Standards:
  • FCC - Verified to comply with Part 15 of the FCC Rules, Class A
  • Canada ICES003, issue 4, Class A
  • UL/IEC 60950-1
  • CSA C22.2 No. 60950-1
  • NOM-019

Physical Characteristics

Colour:
  • Stealth Black
Form Factor:
Mini-tower
Rack Height:
4U
Height:
373.0 mm
Width:
180.0 mm
Depth:
480.0 mm

Warranty

Standard Warranty:
1 Year Limited
